Toro Z Master 132cm - 74053TE (400000000 - 408914113) Electrical

Description

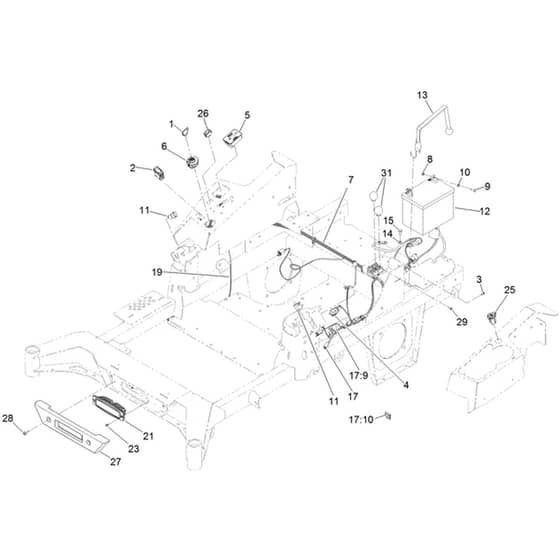

Toro Z Master 132cm - 74053TE (400000000 - 408914113) Electrical Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA63-8360 Available to backorder	Ignition Key	£6.34 £5.28
2	HA139-6368 Available to backorder	Ignition Switch	£38.26 £31.88
3	HA105-6849 Available to backorder	Thread Forming Screw	£0.98 £0.82
4	HA110-6765 Available to backorder	Ignition Switch	£15.54 £12.95
5	HA116-5609 Available to backorder	Module Asm	£207.96 £173.30
6	HA137-4100 Available to backorder	Z-Master Ignition Switch	£31.10 £25.92
7	HA139-8078 Available to backorder	Wire Harness	£507.60 £423.00
8	HA32128-33 Available to backorder	Hex Flange (Hf) Nut	£0.48 £0.40
9	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.42 £1.18
10	HA3256-22 Available to backorder	Flat Washer	£0.72 £0.60
11	HA82-2190 Available to backorder	Bail Switch	£16.74 £13.95
13	HA126-7627 Available to backorder	Strap-Bungee	£15.54 £12.95
14	HA33094-00 Available to backorder	Plain Washer	£0.48 £0.40
15	HA33114-020 Available to backorder	Hex Head (Hh) Screw	£0.53 £0.44
17	HA140-1200 Available to backorder	Deck Lift Wire Harness	£148.02 £123.35
17	HA103-3895 Available to backorder	[17.9] Diode	£96.52 £80.43
17	HA109101 Available to backorder	[17.10] Blade Fuse - 20 Amp	£2.26 £1.88
19	HA140-1213 Available to backorder	Light Kit Wire Harness	£148.02 £123.35
21	HA139-8089 Available to backorder	Flush Light Mount	£135.14 £112.62
23	HA104-2065 In stock	Hex Washer Head (Hwh) Screw	£0.46 £0.38
25	HA140-7955 Available to backorder	Usb Power Port	£54.70 £45.58
26	HA92-8875 Available to backorder	Rocker Switch	£19.12 £15.93
27	HA140-4993 Available to backorder	Front Bumper	£43.88 £36.57
28	HA135-2015 Available to backorder	Shoulder Screw	£3.70 £3.08
29	HA32144-1 Available to backorder	Taptite Screw	£3.82 £3.18
31	HA1-643275 Available to backorder	Relay	£26.30 £21.92
