Toro Z Master 132cm - 74053TE (418626907 - 999999999) Motion Control

Description

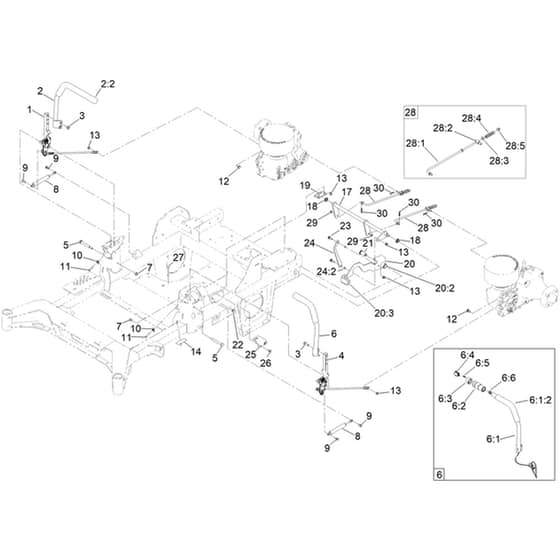

Toro Z Master 132cm - 74053TE (418626907 - 999999999) Motion Control Parts Diagram

	Part No.	Details
1	HA147-5046 Available to backorder	Right Hand (Rh) Motion Control Assembly	£168.96 £140.80
2	HA147-2390 Available to backorder	Right Hand (Rh) Handle Assembly	£98.16 £81.80
2	HA109-5668 Available to backorder	[2.2] Grip-Lever. Control	£17.32 £14.43
3	HA110-5052 Available to backorder	Screw-Hhf	£2.17 £1.81
4	HA147-5047 Available to backorder	Left Hand (Lh) Motion Control Assembly	£168.96 £140.80
5	HA115-5099 Available to backorder	Pivot Bolt	£4.08 £3.40
6	HA147-4991 Available to backorder	Left Hand (Lh) Handle Assembly	£301.20 £251.00
6	HA121-3399 Available to backorder	[6.3] Cap-Switch	£15.54 £12.95
6	HA140-1228 Available to backorder	[6.4] Switch (On-Off-On)	£69.24 £57.70
6	HA94-4496 Available to backorder	[6.5] Phillips Pan Head (Pph) Screw	£1.09 £0.91
6	HA144-0354 Available to backorder	[6.6] Handle Wire Harness	£62.76 £52.30
8	HA142-6851 Available to backorder	Damper	£37.12 £30.93
9	HA126-4424 Available to backorder	Shoulder Screw	£2.09 £1.74
10	HA112-3306 Available to backorder	Nut	£1.51 £1.26
11	HA126-4299 Available to backorder	Hex Socket Button Head (Hsbh) Screw	£2.46 £2.05
12	HA37-8771 Available to backorder	Hex Flange (Hf) Shoulder Bolt	£6.14 £5.12
13	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
14	HA115-9625 Available to backorder	Decal - Parking Brake	£5.06 £4.22
17	HA144-2658 Available to backorder	Brake Assembly	£154.44 £128.70
18	HA126-5820 Available to backorder	Spherical Bearing	£9.40 £7.83
19	HA139-6742 Available to backorder	Brake Bracket	£9.52 £7.93
20	HA139-6726 Available to backorder	Brake Lever Assembly With Grip (Service)	£80.40 £67.00
20	HA109-8054 Available to backorder	[20.2] Flange Bushing	£5.57 £4.64
20	HA132-4749 Available to backorder	[20.3] Lever Grip	£6.04 £5.03
21	HA139-6743 Available to backorder	Handle Pivot	£18.31 £15.26
22	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£3.14 £2.62
23	HA116-2670 Available to backorder	Shoulder Screw	£8.28 £6.90
24	HA144-6566 Available to backorder	Brake Link Assembly	£27.20 £22.67
24	HA116-4976 Available to backorder	[24.2] Sleeve Bushing	£2.96 £2.47
25	HA139-6745 Available to backorder	Switch Plate	£10.01 £8.34
26	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
27	HA3230-23 Available to backorder	Carriage Screw	£1.09 £0.91
28	HA144-0353 Available to backorder	Brake Rod Assembly	£28.45 £23.71
28	HA139-6741 Available to backorder	[28.2] Rod Fitting	£19.78 £16.48
28	HA3256-3 Available to backorder	[28.3] Flat Washer	£0.83 £0.69
28	HA104-8301 Available to backorder	[28.5] Hex Flange (Hf) Nut (Ref 28.5 & 7)	£1.80 £1.50
29	HA3256-45 Available to backorder	Flat Washer	£0.48 £0.40
30	HA119-1415 Available to backorder	Pin-Cotter. Locking	£0.40 £0.33
