Toro Z Master 132cm - 74053TE (415100000 - 416199999) Deck Lift

Name: Toro Z Master 132cm - 74053TE (415100000 - 416199999) Deck Lift
SKU: z_master_132cm_74053te_4151416199999_deck_lift-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 132cm - 74053TE (415100000 - 416199999) Deck Lift

Description

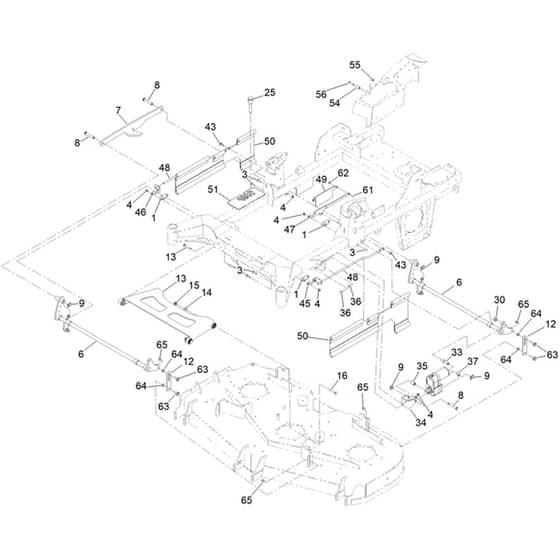

Toro Z Master 132cm - 74053TE (415100000 - 416199999) Deck Lift Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA139-5872 Available to backorder	Flange Bearing	£1.90 £1.58
3	HA3230-22 Available to backorder	Carriage Screw	£2.38 £1.98
4	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
6	HA140-4975-03 Available to backorder	Deck Lift Shaft Assembly	£125.48 £104.57
7	HA126-4639-03 Available to backorder	Lift Link	£96.52 £80.43
8	HA126-9181 Available to backorder	Clevis Pin	£9.08 £7.57
9	HA138-8491 Available to backorder	Pin Clip	£9.46 £7.88
12	HA163-4094 Available to backorder	Deck Lift Link	£117.24 £97.70
13	HA140-1179 Available to backorder	Deck Strut Assembly With Bushings	£185.64 £154.70
14	HA1-373034 Available to backorder	Washer	£5.00 £4.17
15	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.27 £1.06
16	HA323-17 Available to backorder	Carriage Screw	£3.20 £2.67
25	HA126-5401 Available to backorder	Pin-Hoc	£25.12 £20.93
30	HA99-5107 Available to backorder	Lock Nut	£2.78 £2.32
33	HA139-8135 Available to backorder	Actuator Pivot Pin	£24.12 £20.10
34	HA147-0271-01 Available to backorder	Cylinder Mounting Plate	£19.30 £16.08
35	HA127-6751 Available to backorder	Aluminum Spacer	£10.04 £8.37
36	HA3230-2 Available to backorder	Carriage Bolt	£0.86 £0.72
37	HA147-7868 Available to backorder	Actuator-Linear [Deck Lift]	£709.20 £591.00
43	HA3234-47 Available to backorder	Hex Head Flange (Hhf) Screw	£2.14 £1.78
45	HA140-4918 Available to backorder	Left Hand Upper Front Mount Bracket	£36.98 £30.82
46	HA140-4919 Available to backorder	Right Hand Upper Front Mount Bracket	£36.98 £30.82
47	HA145-1275 Available to backorder	Upper Mounting Bracket	£17.70 £14.75
48	HA126-7760 Available to backorder	Rod-Support. Upper	£106.46 £88.72
49	HA145-1276-03 Available to backorder	Flag Bracket	£20.90 £17.42
50	HA126-8561 Available to backorder	Guard-Side	£218.28 £181.90
51	HA140-4927 Available to backorder	Decal - Height Of Cut (Hoc)	£54.44 £45.37
54	HA114-2754 Available to backorder	Spacer	£13.16 £10.97
55	HA3296-47 Available to backorder	Lock Nut	£4.30 £3.58
56	HA126-7439 Available to backorder	Screw-Torx	£2.14 £1.78
61	HA3229-11 Available to backorder	Carriage Screw	£1.42 £1.18
62	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.30 £1.08
63	HA130-0742 Available to backorder	Shoulder Bolt	£2.14 £1.78
64	HA43-0940 Available to backorder	Spacer [3.8 X 7.8 X 10 Ga Stl. Cz]	£1.96 £1.63
65	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
