Toro Z Master 132cm - 74053TE (411435668 - 412200229) Fuel System

Toro Z Master 132cm - 74053TE (411435668 - 412200229) Fuel System
Toro Z Master 132cm - 74053TE (411435668 - 412200229) Fuel System

Description

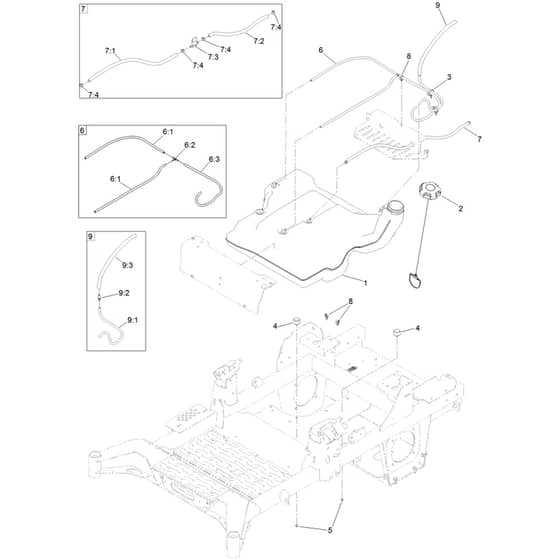

Toro Z Master 132cm - 74053TE (411435668 - 412200229) Fuel System Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Fuel Tank Assembly
Fuel Tank Assembly
HA139-6722
Available to backorder
Fuel Tank Assembly
£426.00 £355.00

  2 Cap-Fuel. Ratcheting
Cap-Fuel. Ratcheting
HA135-4801
Available to backorder
Cap-Fuel. Ratcheting
£43.06 £35.88

  3 Hose Clamp
Hose Clamp
HA104-2490
Available to backorder
Hose Clamp
£5.26 £4.38

  4 Bumper
Bumper
HA131-8834
Available to backorder
Bumper
£13.16 £10.97

  5 Hex Flange (Hf) Nut
Hex Flange (Hf) Nut
HA104-7201
Available to backorder
Hex Flange (Hf) Nut
£1.30 £1.08

  6 Vent Hose Assembly
Vent Hose Assembly
HA139-8067
Available to backorder
Vent Hose Assembly
£75.62 £63.02

  6 [6.2] Tee Fitting
[6.2] Tee Fitting
HA120-2234
Available to backorder
[6.2] Tee Fitting
£4.54 £3.78

  6 [6.3] Fuel Hose
[6.3] Fuel Hose
HA140-4956
Available to backorder
[6.3] Fuel Hose
£38.60 £32.17

  7 Fuel Hose Assembly
Fuel Hose Assembly
HA139-8068
Available to backorder
Fuel Hose Assembly
£85.26 £71.05

  7 [7.1] Fuel Hose
[7.1] Fuel Hose
HA109-0298
Available to backorder
[7.1] Fuel Hose
£17.94 £14.95

  7 [7.2] Fuel Hose
[7.2] Fuel Hose
HA114-3766
Available to backorder
[7.2] Fuel Hose
£9.08 £7.57

  7 [7.3] Fuel Valve
[7.3] Fuel Valve
HA1-603770
Available to backorder
[7.3] Fuel Valve
£9.32 £7.77

  7 [7.4] Hose Clamp
[7.4] Hose Clamp
HA2412-98
Available to backorder
[7.4] Hose Clamp
£1.66 £1.38

  8 Clip
Clip
HA126-5523
Available to backorder
Clip
£2.14 £1.78

  9 Fuel Vent Assembly
Fuel Vent Assembly
HA140-4957
Available to backorder
Fuel Vent Assembly
£62.72 £52.27

  9 [9.1] Hose-Fuel [3.16 X 23.00]
[9.1] Hose-Fuel [3.16 X 23.00]
HA138-3152
Available to backorder
[9.1] Hose-Fuel [3.16 X 23.00]
£13.64 £11.37

  9 [9.2] Fitting-Orifice. Straight
[9.2] Fitting-Orifice. Straight
HA116-4630
Available to backorder
[9.2] Fitting-Orifice. Straight
£5.84 £4.87

  9 [9.3] Fuel Hose
[9.3] Fuel Hose
HA116-4344
Available to backorder
[9.3] Fuel Hose
£14.34 £11.95


Description

Toro Z Master 132cm - 74053TE (411435668 - 412200229) Fuel System Parts Diagram
