Toro Z Master 132cm - 72969TE (400000000 - 412899999) Subframe

Description

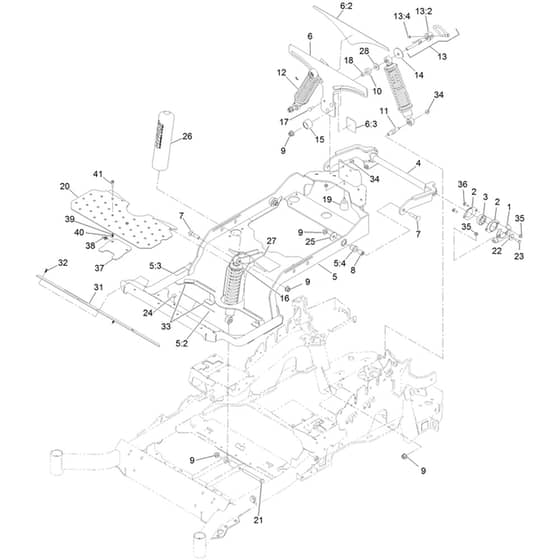

Toro Z Master 132cm - 72969TE (400000000 - 412899999) Subframe Parts Diagram

	Part No.	Details
1	HA127-6759-03 Available to backorder	Bearing Bracket - Black	£27.20 £22.67
2	HA127-6743 Available to backorder	Flange Bearing Housing	£5.81 £4.84
3	HA1-653346 Available to backorder	Bearing	£83.76 £69.80
4	HA127-6754-03 Available to backorder	Trailing Arm	£298.87 £249.06
5	HA132-5057 Available to backorder	Subframe Assembly	£1,102.85 £919.04
5	HA132-0871 Available to backorder	[5.2] Danger Decal	£14.96 £12.47
5	HA115-9625 Available to backorder	[5.3] Decal - Parking Brake	£5.06 £4.22
5	HA127-6745 Available to backorder	[5.4] Flange Bushing	£13.61 £11.34
6	HA133-1808 Available to backorder	Mounting Bracket	£270.60 £225.50
6	HA132-5063 Available to backorder	[6.3] Decal - Cam Lock	£6.41 £5.34
6	HA132-5067 Available to backorder	[6.2] Decal - Ride Adjustment	£36.60 £30.50
7	HA127-6768 Available to backorder	Carriage Screw	£3.95 £3.29
8	HA127-6751 Available to backorder	Aluminum Spacer	£10.39 £8.66
9	HA99-5107 Available to backorder	Lock Nut	£3.04 £2.53
10	HA131-8801 Available to backorder	Spacer	£9.77 £8.14
11	HA131-6348 Available to backorder	Shoulder Bolt	£24.95 £20.79
12	HA133-1815 Available to backorder	Shock And Spring Assembly	£150.72 £125.60
13	HA131-8843 Available to backorder	Cam Lock Assembly	£40.84 £34.03
13	HA107-1644 Available to backorder	[13.2] Lock Cap	£61.08 £50.90
13	HA119-4038 In stock	[13.4] Hex Nut	£0.56 £0.47
14	HA131-4646 Available to backorder	Stop Plate	£6.04 £5.03
15	HA131-4647 Available to backorder	Front Knob	£21.02 £17.52
16	HA136-8993 Available to backorder	Shock.Spring Asm	£199.80 £166.50
17	HA3231-22 Available to backorder	Carriage Screw	£1.22 £1.02
18	HA47-7270 Available to backorder	Needle Bearing	£37.12 £30.93
19	HA132-5058 Available to backorder	Rubber Bumper	£14.83 £12.36
20	HA132-5089-01 Available to backorder	Floorpan	£135.12 £112.60
21	HA325-19 Available to backorder	Hex Head (Hh) Screw	£4.39 £3.66
22	HA105-3048 Available to backorder	Flat Washer	£1.49 £1.24
23	HA116-0648 Available to backorder	Screw-Hh. Thd Lock	£1.60 £1.33
24	HA1-513658 Available to backorder	Bumper	£7.54 £6.28
25	HA86-1990 Available to backorder	Washer[1.2 X 1-3.4. 11 Ga. Stl. Cz]	£3.11 £2.59
26	HA132-5068 Available to backorder	Shock Cover	£12.35 £10.29
27	HA125-9383 Available to backorder	Decal - Service Aid	£34.94 £29.12
28	HA3256-6 Available to backorder	Flat Washer	£0.58 £0.48
31	HA133-1810 Available to backorder	Floor Mat	£78.84 £65.70
32	HA117-2382 Available to backorder	Plug-Plastic[Pa66. Fir Tree]	£0.85 £0.71
33	HA130-0733 Available to backorder	Rubber Pad	£1.84 £1.53
34	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
35	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
36	HA3230-10 Available to backorder	Carriage Bolt	£0.85 £0.71
37	HA119-0395-03 Available to backorder	Captive Adapter	£27.20 £22.67
38	HA107069 Available to backorder	Clip	£2.21 £1.84
39	HA3256-60 Available to backorder	Washer-Flat[.266X.500.Stl.Yz..030 Thk]	£2.54 £2.12
40	HA32115-15 Available to backorder	Retainer Nut	£1.18 £0.98
41	HA3234-21 Available to backorder	Hex Head Flange (Hhf) Screw	£2.71 £2.26
