Toro Z Master 132cm - 72969TE (400000000 - 412899999) Park Brake

Name: Toro Z Master 132cm - 72969TE (400000000 - 412899999) Park Brake
SKU: z_master_132cm_72969te_4412899999_park_brake-group
Price: 0.24 GBP
Availability: InStock

Part No. z_master_132cm_72969te_4412899999_park_brake-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 132cm - 72969TE (400000000 - 412899999) Park Brake

Description

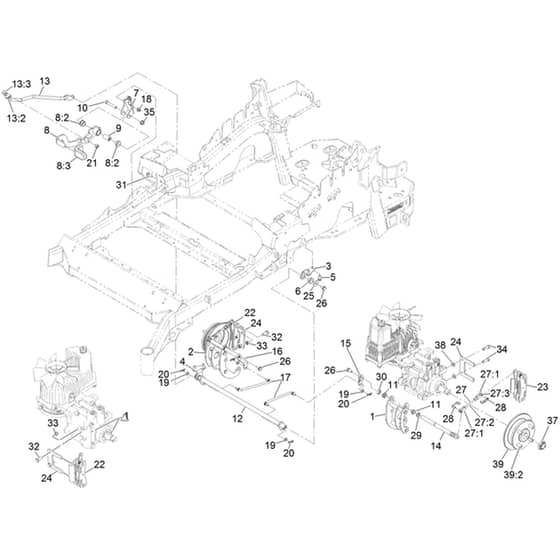

Toro Z Master 132cm - 72969TE (400000000 - 412899999) Park Brake Parts Diagram

	Part No.	Details
1	HA126-4248 Available to backorder	Mount-Bellcrank. Lh	£43.31 £36.09
2	HA126-4249 Available to backorder	Mount-Bellcrank. Rh	£44.54 £37.12
3	HA116-9681 Available to backorder	Mount-Pivot. Lh	£4.94 £4.12
4	HA116-9682 Available to backorder	Mount-Pivot. Rh	£4.94 £4.12
5	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
7	HA116-9096-01 Available to backorder	Bracket-Mount	£32.17 £26.81
8	HA135-7982 Available to backorder	Brake Lever Asm W.Grip M-R	£91.68 £76.40
8	HA109-8054 Available to backorder	[8.2] Flange Bushing	£5.57 £4.64
8	HA132-4749 Available to backorder	[8.3] Lever Grip	£6.04 £5.03
9	HA116-9117 Available to backorder	Pivot-Handle. Brake	£3.20 £2.67
10	HA323-11 In stock	Hex Head (Hh) Screw	Was £2.33 £1.94 Special Price £1.54 £1.28
11	HA126-6199 Available to backorder	Bushing	£8.77 £7.31
12	HA135-7800 Available to backorder	Shaft-Cross	£98.16 £81.80
13	HA135-7805 Available to backorder	Asm. Front Linkage	£77.76 £64.80
13	HA94-7572 Available to backorder	[13.2] Right Hand Tie Rod End	£40.84 £34.03
13	HA3220-3 In stock	[13.3] Hj Nut	Was £0.48 £0.40 Special Price £0.29 £0.24
14	HA126-4251 Available to backorder	Bellcrank	£33.26 £27.72
15	HA126-3716 Available to backorder	Right Hand Inner Arm	£6.56 £5.47
16	HA126-3715 Available to backorder	Left Hand Inner Arm	£6.56 £5.47
17	HA142-6327 Available to backorder	Wireform. Mid-Link. Lwb	£51.58 £42.98
18	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
19	HA3256-23 Available to backorder	Plain Washer	£0.48 £0.40
20	HA119-1415 Available to backorder	Pin-Cotter. Locking	£0.40 £0.33
21	HA3296-6 Available to backorder	Lock Nut	£1.84 £1.53
22	HA135-7440 Available to backorder	Caliper-Brake. Rh	£144.84 £120.70
23	HA135-7441 Available to backorder	Caliper-Brake. Lh	£144.84 £120.70
24	HA135-7828 Available to backorder	Plate-Mount. Brake	£13.61 £11.34
25	HA115-7109 Available to backorder	Washer-Flat [1.062 X .328]	£1.49 £1.24
26	HA98-9940 Available to backorder	Hex Head Flange (Hhf) Screw	£2.89 £2.41
27	HA126-7587 Available to backorder	[27.2] Linkage. Rear	£25.99 £21.66
27	HA3220-1 Available to backorder	[27.3] Jam Nut	£1.22 £1.02
28	HA126-6395 Available to backorder	Pin-Clevis. Spring	£9.52 £7.93
29	HA126-6200 Available to backorder	Spacer	£3.20 £2.67
30	HA32120-19 Available to backorder	0.625 Inch X 0.042 Inch E-Ring	£2.81 £2.34
31	HA3230-2 Available to backorder	Carriage Bolt	£0.80 £0.67
32	HA135-7915 Available to backorder	Screw-Hh.	£1.09 £0.91
33	HA112-0236 Available to backorder	Lock Nut	£0.80 £0.67
34	HA135-7890 Available to backorder	Screw-Hh. Patch	£1.60 £1.33
35	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
37	HA116-1399 Available to backorder	Lock Nut	£17.32 £14.43
38	HA3256-24 Available to backorder	Flat Washer	£0.48 £0.40
39	HA142-2701 Available to backorder	Wheel Hub Asm	£170.52 £142.10
39	HA116-1696 Available to backorder	[39.2] Wheel Stud	£4.32 £3.60
