Toro Z Master 132cm - 72969TE (412900000 - 999999999) Motion Control

Description

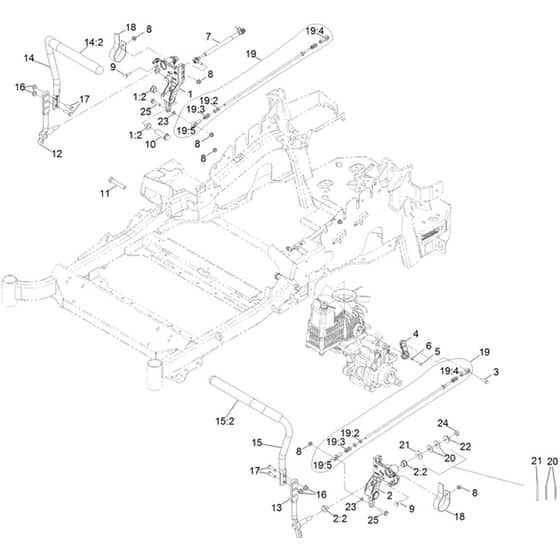

Toro Z Master 132cm - 72969TE (412900000 - 999999999) Motion Control Parts Diagram

	Part No.	Details
1	HA116-0880 Available to backorder	Rh Motion Control And Bushing Asm	£65.76 £54.80
2	HA116-0881 Available to backorder	Lh Motion Control And Bushing Asm	£65.76 £54.80
2	HA109-8054 Available to backorder	[2.2] Flange Bushing	£5.57 £4.64
3	HA116-0648 Available to backorder	Screw-Hh. Thd Lock	£1.60 £1.33
4	HA109-4581 Available to backorder	Arm-Control. Pump	£9.89 £8.24
5	HA9080046 Available to backorder	Hex Head (Hh) Screw	£4.20 £3.50
6	HA1-303435 Available to backorder	Spring Washer	£2.32 £1.93
8	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
9	HA3230-2 Available to backorder	Carriage Bolt	£0.80 £0.67
10	HA109-5891 Available to backorder	Hub-Threaded	£17.32 £14.43
11	HA325-12 Available to backorder	Hex Head (Hh) Screw	£3.89 £3.24
12	HA116-0039 Available to backorder	Lever-Control Motion. Rh	£60.96 £50.80
13	HA116-0040 Available to backorder	Lever-Control Motion. Lh	£60.96 £50.80
14	HA135-4727 Available to backorder	Handle- Rh W.Grip	£99.36 £82.80
15	HA135-4476 Available to backorder	Asm-Handle-Lh	£96.96 £80.80
15	HA109-5668 Available to backorder	[15.2] Grip-Lever. Control	£17.32 £14.43
16	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
17	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.12 £0.93
18	HA109-5575 Available to backorder	Spring-Leaf	£18.56 £15.47
19	HA109-8107 Available to backorder	Pump Linkage Rear Asm	£87.36 £72.80
19	HA3219-2 Available to backorder	[19.2] Hex Nut	£0.62 £0.52
19	HA1-323245 Available to backorder	[19.3] Compression Spring	£7.54 £6.28
19	HA1-633152 Available to backorder	[19.4] Balljoint-Lh	£24.74 £20.62
19	HA1-543017 Available to backorder	[19.5] Balljoint-Rh	£24.74 £20.62
20	HA109-9505 In stock	Spring Washer	Was £5.56 £4.63 Special Price £2.39 £1.99
21	HA3256-6 Available to backorder	Flat Washer	£0.58 £0.48
22	HA32128-56 Available to backorder	Hex Flange (Hf) Nut	£1.86 £1.55
23	HA3256-23 Available to backorder	Plain Washer	£0.48 £0.40
24	HA3218-5 Available to backorder	Jam Nut	£0.48 £0.40
25	HA115-1794 Available to backorder	Screw-Hhf[5.16-18 X 1.5.Gr 5. Yz]	£2.98 £2.48
