Toro Z Master 132cm - 72969TE (412900000 - 999999999) Mainframe and Muffler Guard

Description

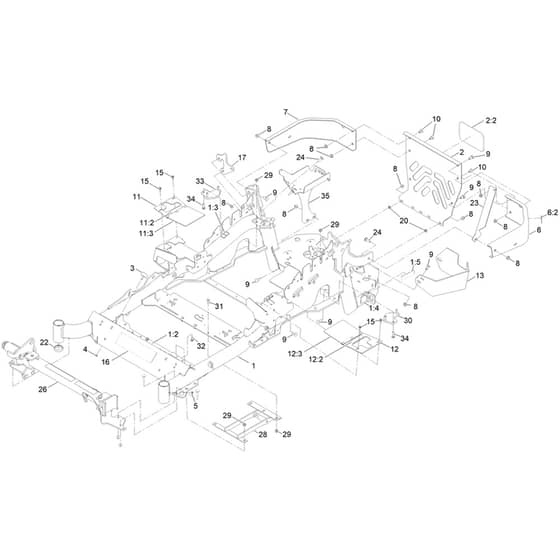

Toro Z Master 132cm - 72969TE (412900000 - 999999999) Mainframe and Muffler Guard Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA142-7272 Available to backorder	Mainframe Service Asm - 48.52	£3,290.40 £2,742.00
1	HA132-0871 Available to backorder	[1.2] Danger Decal	£14.46 £12.05
1	HA106-2655 Available to backorder	[1.4] Decal - Pinched Finger Hazard	£2.24 £1.87
1	HA133-8062 Available to backorder	[1.5] Decal - Spark Arrestor	£4.00 £3.33
2	HA115-7410 Available to backorder	Rear Guard Assembly With Decals	£271.56 £226.30
2	HA67-7320 Available to backorder	[2.2] Decal [Toro Logo. 7.57X4.96]	£51.34 £42.78
3	HA131-8834 Available to backorder	Bumper	£13.16 £10.97
4	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.14 £0.95
5	HA1-811010 Available to backorder	Plug	£5.84 £4.87
6	HA116-0180 Available to backorder	Lh Bumper Asm	£200.64 £167.20
6	HA106-5517 Available to backorder	[6.2] Warning Decal	£4.18 £3.48
7	HA116-0057-03 Available to backorder	Bumper-Rh	£236.64 £197.20
8	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
9	HA3231-22 Available to backorder	Carriage Screw	£1.18 £0.98
10	HA3231-21 Available to backorder	Carriage Screw	£1.24 £1.03
11	HA131-4615 Available to backorder	Right Hand Motion Control Cover Assembly	£165.24 £137.70
12	HA131-4610 Available to backorder	Left Hand Motion Control Cover Assembly	£165.24 £137.70
12	HA99-8936 Available to backorder	[12.2] Decal - Motion Control	£25.12 £20.93
12	HA136-8967 Available to backorder	[12.3] Rubber Flap	£8.96 £7.47
13	HA117-0908-03 Available to backorder	Guard Assembly - Black	£184.92 £154.10
15	HA32144-10 Available to backorder	Hex Washer Head (Hwh) Screw	£5.12 £4.27
16	HA140-1215 Available to backorder	Console Decal	£10.76 £8.97
17	HA136-1674-01 Available to backorder	Shock Mount Plate	£27.50 £22.92
20	HA107-3154 Available to backorder	Push Nut	£1.18 £0.98
22	HA1-543508 Available to backorder	Bearing Cup	£8.72 £7.27
23	HA127-0324-03 Available to backorder	Strap	£40.20 £33.50
28	HA131-6327-01 Available to backorder	Lower Mount - Red	£200.64 £167.20
29	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.64 £0.53
30	HA127-6766 Available to backorder	Left Hand (Lh) Plate Assembly	£62.72 £52.27
31	HA322-3 Available to backorder	Hex Head (Hh) Screw	£0.94 £0.78
32	HA3230-23 Available to backorder	Carriage Screw	£1.06 £0.88
33	HA127-6765 Available to backorder	Right Hand Plate Assembly With Studs	£62.72 £52.27
34	HA3230-3 Available to backorder	Screw-Carr [.312-18X1.250.Gr5.Yz]	£0.88 £0.73
35	HA142-6404-01 Available to backorder	Battery Mount Asm	£101.88 £84.90
