Toro Z Master 132cm - 72969TE (412900000 - 999999999) Engine, Clutch and Muffler

Name: Toro Z Master 132cm - 72969TE (412900000 - 999999999) Engine, Clutch and Muffler
SKU: z_master_132cm_72969te_4129999999999_engine_clutchmuffler-group
Price: 0.24 GBP
Availability: InStock

Part No. z_master_132cm_72969te_4129999999999_engine_clutchmuffler-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 132cm - 72969TE (412900000 - 999999999) Engine, Clutch and Muffler

Description

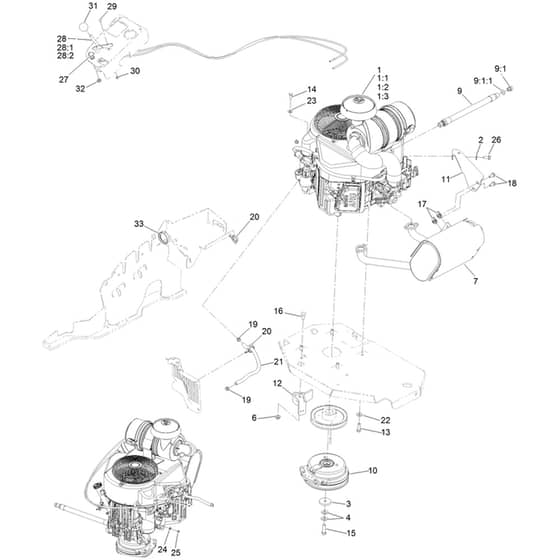

Toro Z Master 132cm - 72969TE (412900000 - 999999999) Engine, Clutch and Muffler Parts Diagram

	Part No.	Details
2	HA1-303334 Available to backorder	Spring Washer	£2.98 £2.48
3	HA109-6919 Available to backorder	Clutch Washer	£12.29 £10.24
4	HA1-603610 Available to backorder	Spring Washer	£5.46 £4.55
6	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
7	HA116-1715 Available to backorder	Muffler	£280.08 £233.40
9	HA116-4924 Available to backorder	Engine Oil Drain Hose Asm	£44.54 £37.12
9	HA353-508 Available to backorder	[9.1] Plug-Hh [O-Ring]	£8.65 £7.21
10	HA116-1620 Available to backorder	Clutch Kit	£383.64 £319.70
11	HA116-1435 Available to backorder	Muffler Bracket	£38.36 £31.97
12	HA116-2612-01 Available to backorder	Clutch-Anchor	£62.16 £51.80
13	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.12 £0.93
14	HA33114-020 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
15	HA109-9761 Available to backorder	Screw-Hh. W.Loctite	£5.44 £4.53
16	HA3231-22 Available to backorder	Carriage Screw	£1.22 £1.02
17	HA94-2413 Available to backorder	U Nut	£2.21 £1.84
18	HA3234-5 Available to backorder	Hex Head Flange (Hhf) Screw	£0.71 £0.59
19	HA2412-98 Available to backorder	Hose Clamp	£1.72 £1.43
20	HA105-1853 Available to backorder	Hose Clamp	£4.32 £3.60
21	HA109-0296 Available to backorder	Fuel Hose	£12.35 £10.29
22	HA98-5975 Available to backorder	Belleville Washer	£5.32 £4.43
23	HA33094-00 Available to backorder	Plain Washer	£0.43 £0.36
24	HA3256-22 Available to backorder	Flat Washer	£0.64 £0.53
25	HA3217-5 Available to backorder	Hex Nut	£0.43 £0.36
26	HA139-3392 Available to backorder	Hex Head Flanged Screw	£2.63 £2.19
27	HA115-2753 Available to backorder	Choke Control Assembly	£56.92 £47.43
28	HA110-5727 Available to backorder	[28.2] Throttle Cable	£99.36 £82.80
28	HA112-2334 Available to backorder	[28.1] Throttle Lever	£90.96 £75.80
29	HA1-807513 Available to backorder	Carriage Bolt	£1.97 £1.64
30	HA3296-2 Available to backorder	Lock Nut	£2.34 £1.95
31	HA1-603175 Available to backorder	Knob-Ball	£13.61 £11.34
32	HA3220-3 In stock	Hj Nut	Was £0.48 £0.40 Special Price £0.29 £0.24
33	HA117-7817 Available to backorder	Harness Clamp	£9.14 £7.62
