Toro Z Master 132cm - 72969TE (412900000 - 999999999) Electrical

Name: Toro Z Master 132cm - 72969TE (412900000 - 999999999) Electrical
SKU: z_master_132cm_72969te_4129999999999_electrical-group
Price: 0.42 GBP
Availability: InStock

Part No. z_master_132cm_72969te_4129999999999_electrical-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 132cm - 72969TE (412900000 - 999999999) Electrical

Description

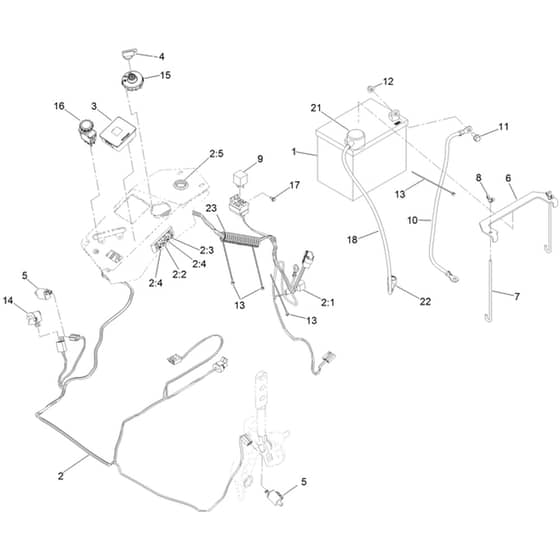

Toro Z Master 132cm - 72969TE (412900000 - 999999999) Electrical Parts Diagram

	Part No.	Details
2	HA116-6009 Available to backorder	Harness-Wire. Main	£243.72 £203.10
2	HA103-3895 Available to backorder	[2.1] Diode	£99.72 £83.10
2	HA218-578 Available to backorder	[2.2] 10 Amp Blade Fuse	£3.19 £2.66
2	HA109355 Available to backorder	[2.3] Blade Fuse - 15 Amp	£5.32 £4.43
2	HA109102 Available to backorder	[2.4] Blade Fuse - 25 Amp	£8.14 £6.78
2	HA116-0053 Available to backorder	[2.5] Plug Cap	£47.00 £39.17
3	HA117-3882 Available to backorder	Fuel . Hour Meter Assembly	£238.92 £199.10
4	HA63-8360 Available to backorder	Ignition Key	£6.56 £5.47
5	HA110-6765 Available to backorder	Ignition Switch	£16.08 £13.40
6	HA116-0042-03 Available to backorder	Strap-Tie Down. Battery	£27.20 £22.67
7	HA1-633651 Available to backorder	Bolt-Holddown	£8.52 £7.10
8	HA1-543792 Available to backorder	Wingnut	£7.03 £5.86
9	HA1-643275 Available to backorder	Relay	£27.20 £22.67
10	HA114-1218 Available to backorder	Negative Battery Cable	£27.20 £22.67
11	HA3234-5 Available to backorder	Hex Head Flange (Hhf) Screw	£0.71 £0.59
12	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
13	HA1-303287 Available to backorder	Cable Tie	£0.85 £0.71
14	HA82-2190 Available to backorder	Bail Switch	£17.32 £14.43
15	HA137-4100 Available to backorder	Z-Master Ignition Switch	£32.17 £26.81
16	HA135-3653 Available to backorder	Switch. Pto 10A	£76.56 £63.80
17	HA104-2065 In stock	Hex Washer Head (Hwh) Screw	£0.50 £0.42
18	HA115-3864 Available to backorder	Positive Battery Cable	£35.88 £29.90
21	HA109-2407 Available to backorder	Insulator-Battery	£6.04 £5.03
22	HA1-543393 Available to backorder	Insulator-Solenoid	£6.04 £5.03
23	HA131-8846 Available to backorder	Hose Cover	£2.96 £2.47
