Toro Z Master 132cm - 72969TE (412900000 - 999999999) Caster Wheel and Fork

Description

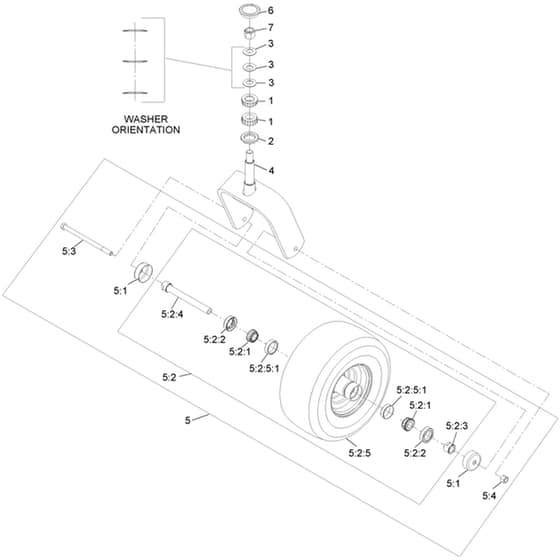

Toro Z Master 132cm - 72969TE (412900000 - 999999999) Caster Wheel and Fork Parts Diagram

	Part No.	Details
1	HA1-543509 Available to backorder	Bearing-Roller. Tapered	£17.32 £14.43
2	HA116-5647 Available to backorder	Seal-Grease	£6.56 £5.47
3	HA1-633508 In stock	Belleville Washer	£5.66 £4.72
4	HA116-8888 Available to backorder	Caster Fork	£209.52 £174.60
5	HA109-9127 Available to backorder	Wheel And Tire Assembly	£378.80 £315.67
5	HA103-2768 Available to backorder	[5.1] Guard-Seal	£4.20 £3.50
5	HA3253-9 Available to backorder	[5.3] Hex Head (Hh) Screw	£1.74 £1.45
5	HA3296-23 Available to backorder	[5.4] Ni Lock Nut	£0.91 £0.76
6	HA103-4882 Available to backorder	Grease Cap	£9.02 £7.52
7	HA3296-51 Available to backorder	Ni Lock Nut	£5.52 £4.60
