Toro Z Master 132cm - 72264TE (406430000 - 409547309) Hydraulic Tank, Pump and Motor

Name: Toro Z Master 132cm - 72264TE (406430000 - 409547309) Hydraulic Tank, Pump and Motor
SKU: z_master_132cm_72264te_46434954739_hydraulic_tank_pumpmotor-grou
Price: 0.4 GBP
Availability: InStock

Part No. z_master_132cm_72264te_46434954739_hydraulic_tank_pumpmotor-grou

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 132cm - 72264TE (406430000 - 409547309) Hydraulic Tank, Pump and Motor

Description

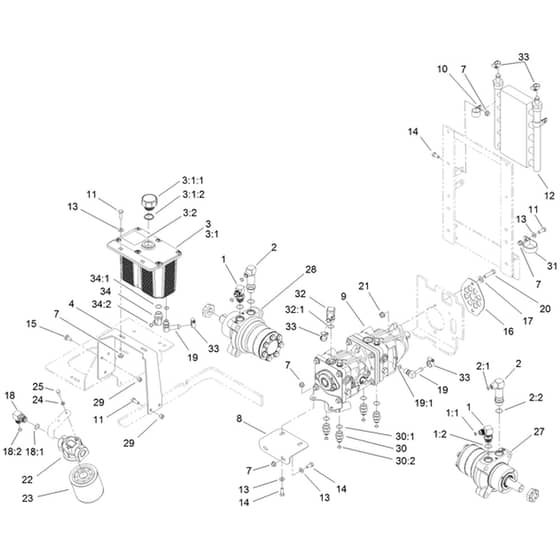

Toro Z Master 132cm - 72264TE (406430000 - 409547309) Hydraulic Tank, Pump and Motor Parts Diagram

	Part No.	Details
0	HA103-1948 Available to backorder	Cap-Reservoir. Hyd	£21.02 £17.52
1	HA1-633605 Available to backorder	Fitting-Hyd. 90 Deg	£58.16 £48.47
2	HA108-5323 Available to backorder	Elbow Fitting	£138.36 £115.30
2	HA237-80 Available to backorder	[2.2] 0.755 Inch X 0.097 Inch O-Ring	£7.55 £6.29
3	HA108-5320 Available to backorder	Hydraulic Tank Assembly	£547.94 £456.62
3	HA115-4212 Available to backorder	[3.2] Warning Decal	£14.83 £12.36
4	HA108-5352-03 Available to backorder	Bracket Assembly - Hydraulic [Black	£106.44 £88.70
7	HA32128-20 Available to backorder	Hex Flange (Hf) Nut	£1.22 £1.02
8	HA107-3462-03 Available to backorder	Bracket Assembly - Front [Black	£32.17 £26.81
9	HA107-9885 Available to backorder	Tandem Pump Assembly	£3,576.18 £2,980.15
10	HA110-0824 Available to backorder	R-Clamp	£4.45 £3.71
11	HA322-5 Available to backorder	Hex Head (Hh) Screw	£0.58 £0.48
12	HA114-8168 Available to backorder	Hydro Cooler Cap	£347.53 £289.61
13	HA3256-23 Available to backorder	Plain Washer	£0.48 £0.40
14	HA322-3 Available to backorder	Hex Head (Hh) Screw	£0.97 £0.81
15	HA3230-23 Available to backorder	Carriage Screw	£1.09 £0.91
16	HA108-5367-03 Available to backorder	Pump Shield Plate	£28.45 £23.71
17	HA3256-24 Available to backorder	Flat Washer	£0.48 £0.40
18	HA103-2153 Available to backorder	Fitting-90 Deg	£58.16 £48.47
19	HA109-6449 Available to backorder	Fitting-Elbow. 90	£39.58 £32.98
19	HA237-42 Available to backorder	[19.1] 0.468 Inch X 0.078 Inch O-Ring	£4.76 £3.97
20	HA323-8 Available to backorder	Hex Head (Hh) Screw	£2.05 £1.71
21	HA3290-357 Available to backorder	Whiz Hex Head Flange (Hhf) Nut	£1.06 £0.88
22	HA86-9080 Available to backorder	Head-Filter	£153.24 £127.70

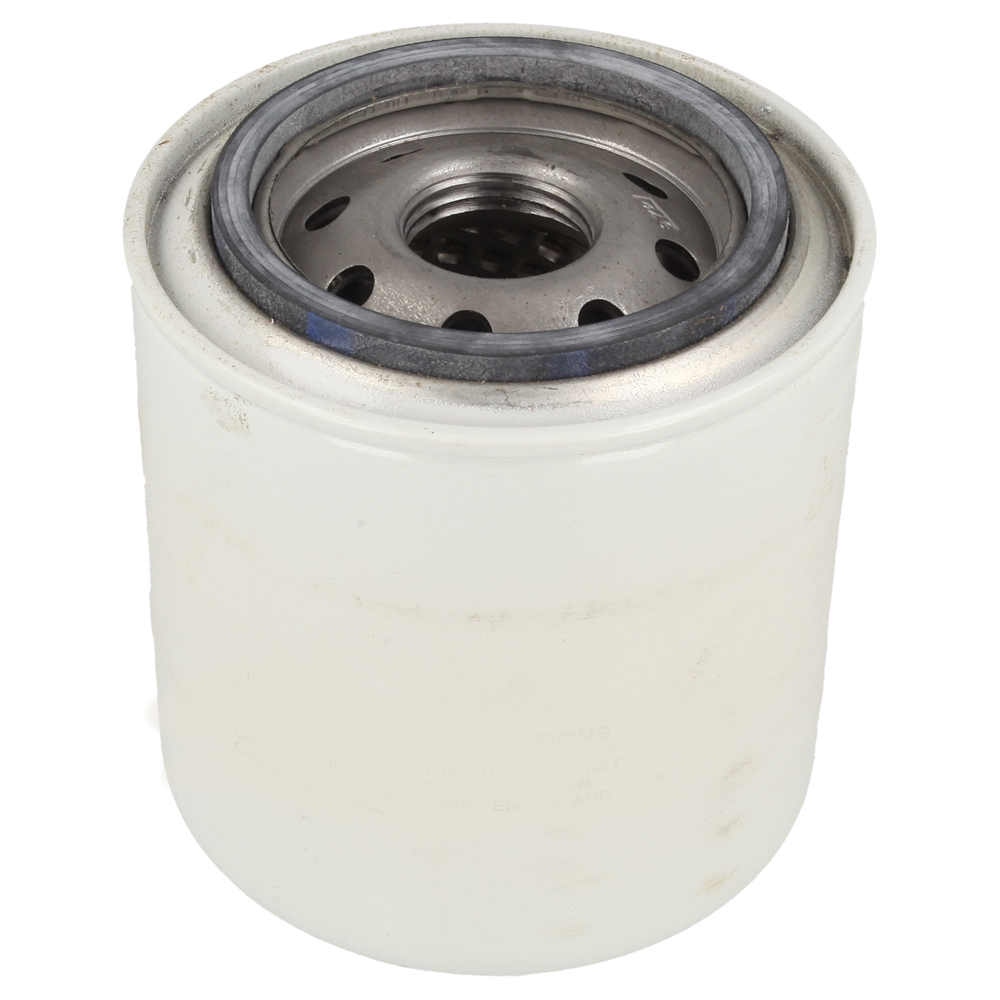

23	HA67-8110 Available to backorder	Toro Hydraulic Oil Filter	£43.26 £36.05
24	HA1-805004 Available to backorder	Washer-Lock	£1.14 £0.95
25	HA321-3 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
27	HA112-8357 Available to backorder	Hyd Motor Asm Ccw Assembly With Wheel	£1,525.69 £1,271.41
28	HA112-8358 Available to backorder	Hyd Motor Asm Cw Assembly With Wheel	£1,443.44 £1,202.87
29	HA3296-29 Available to backorder	Lock Nut	£2.59 £2.16
30	HA1-603990 Available to backorder	Straight Fitting	£21.02 £17.52
31	HA2412-147 Available to backorder	Clamp-R	£4.28 £3.57
32	HA108-5316 Available to backorder	90 Degree Elbow Fitting	£56.92 £47.43
32	HA237-79 Available to backorder	[32.1] 0.644 Inch X 0.087 Inch O-Ring	£6.77 £5.64
33	HA109-6801 Available to backorder	Hose Clamp	£9.89 £8.24
34	HA1-523221 Available to backorder	Fitting-Hyd. 45 Deg	£58.16 £48.47
34	HA1-603920 Available to backorder	[34.1] O-Ring	£4.20 £3.50
34	HA1-603992 Available to backorder	[34.2] O-Ring	£2.96 £2.47
