Toro Z Master 132cm - 72264TE (411700000 - 999999999) Electrical

Name: Toro Z Master 132cm - 72264TE (411700000 - 999999999) Electrical
SKU: z_master_132cm_72264te_4117999999999_electrical-group
Price: 0.33 GBP
Availability: InStock

Part No. z_master_132cm_72264te_4117999999999_electrical-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 132cm - 72264TE (411700000 - 999999999) Electrical

Description

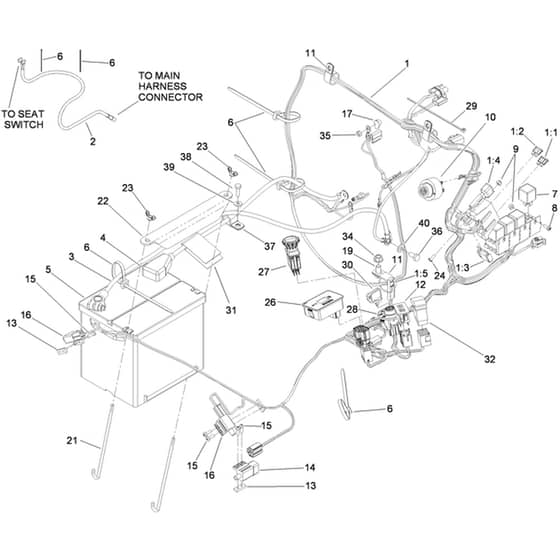

Toro Z Master 132cm - 72264TE (411700000 - 999999999) Electrical Parts Diagram

	Part No.	Details
1	HA119-0351 Available to backorder	Wire Harness	£644.34 £536.95
1	HA218-578 Available to backorder	[1.1] 10 Amp Blade Fuse	£3.19 £2.66
1	HA109103 Available to backorder	[1.2] Blade Fuse - 30 Amp	£7.54 £6.28
1	HA94-8002 Available to backorder	[1.3] Fuse-Blade. 50 Amp	£43.46 £36.22
1	HA100-4918 Available to backorder	[1.4] 6 Amp Diode	£34.78 £28.98
1	HA116-0053 Available to backorder	[1.5] Plug Cap	£47.00 £39.17
2	HA103-1227 Available to backorder	Harness-Wiring. Seat	£27.20 £22.67
3	HA110-0303 Available to backorder	Battery Cable - Negative	£106.44 £88.70
4	HA110-0304 Available to backorder	Positive Battery Cable	£108.84 £90.70
6	HA3290-378 Available to backorder	Cable Tie	£0.97 £0.81
7	HA1-643275 Available to backorder	Relay	£27.20 £22.67
8	HA1-803071 Available to backorder	Screw	£0.62 £0.52
9	HA3296-2 Available to backorder	Lock Nut	£2.34 £1.95
10	HA103-0205 Available to backorder	Alarm-Tone. Dual	£75.36 £62.80
11	HA1-643312 Available to backorder	Clip-Loom	£6.31 £5.26
12	HA100-8071 Available to backorder	Warning Lamp	£63.72 £53.10
13	HA1-633181 Available to backorder	Plate-Tapped	£7.54 £6.28
14	HA1-633111 Available to backorder	Switch For Drive Lever	£24.74 £20.62
15	HA3290-500 Available to backorder	Phillips Pan Head (Pph) Screw	£1.46 £1.22
16	HA1-513051 Available to backorder	Switch-Open. Normally	£22.26 £18.55
17	HA1-643178 Available to backorder	Cap-Insulator. Red	£6.04 £5.03
19	HA323-4 Available to backorder	Hex Head (Hh) Screw	£1.74 £1.45
21	HA103-1312 Available to backorder	Bolt-Holddown	£7.28 £6.07
22	HA103-1311-03 Available to backorder	Holddown-Battery	£30.94 £25.78
23	HA1-543792 Available to backorder	Wingnut	£7.03 £5.86
24	HA1-803075 Available to backorder	Truss Head Screw	£1.22 £1.02
26	HA116-5609 Available to backorder	Module Asm	£227.88 £189.90
27	HA135-3653 Available to backorder	Switch. Pto 10A	£76.56 £63.80
28	HA137-4100 Available to backorder	Z-Master Ignition Switch	£32.17 £26.81
29	HA1-303287 Available to backorder	Cable Tie	£0.85 £0.71
30	HA63-8360 Available to backorder	Ignition Key	£6.56 £5.47
31	HA140-4357 Available to backorder	Decal - Battery Charging	£14.96 £12.47
32	HA110-0811 Available to backorder	Glow Rocker Switch	£78.96 £65.80
34	HA3290-357 Available to backorder	Whiz Hex Head Flange (Hhf) Nut	£1.06 £0.88
35	HA33023-00 Available to backorder	Lock Nut	£0.43 £0.36
36	HA33114-016 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
37	HA1-633396 Available to backorder	Clip-Loom	£4.69 £3.91
38	HA321-5 Available to backorder	Hex Head (Hh) Screw	£0.40 £0.33
39	HA3256-22 Available to backorder	Flat Washer	£0.64 £0.53
40	HA3256-23 Available to backorder	Plain Washer	£0.48 £0.40
