Toro Z Master 122cm - 74456TE (400000000 - 410019999) Engine, Clutch and Muffler

Description

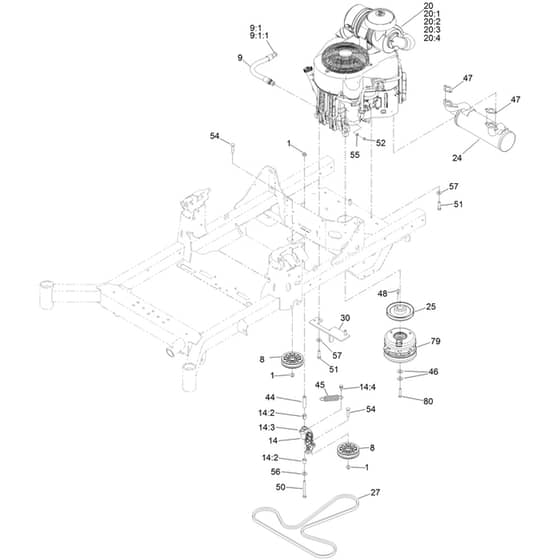

Toro Z Master 122cm - 74456TE (400000000 - 410019999) Engine, Clutch and Muffler Parts Diagram

	Part No.	Details
0	HA237-42 Available to backorder	0.468 Inch X 0.078 Inch O-Ring	£4.76 £3.97
1	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
8	HA116-2456 Available to backorder	Pulley-Flat Idler	£27.20 £22.67
9	HA116-4924 Available to backorder	Engine Oil Drain Hose Asm	£44.54 £37.12
9	HA353-508 Available to backorder	[9.1] Plug-Hh [O-Ring]	£8.65 £7.21
14	HA126-0973 Available to backorder	Idler Arm Assembly	£133.56 £111.30
14	HA1-513034 Available to backorder	[14.2] Sleeve-Bearing	£8.40 £7.00
14	HA302-40 Available to backorder	[14.3] 90 Degree Grease Fitting	£2.89 £2.41
14	HA32144-11 Available to backorder	[14.4] Hex Washer Head (Hwh) Screw	£8.65 £7.21
24	HA126-4360 Available to backorder	Muffler	£213.60 £178.00
25	HA126-5358 Available to backorder	Sheave (W.Hub)	£72.96 £60.80
27	HA126-5993 Available to backorder	Traction Drive V-Belt	£58.16 £48.47
30	HA126-6687-03 Available to backorder	Clutch Anchor	£29.69 £24.74
44	HA1-603384 Available to backorder	Idler Pivot Bushing	£16.08 £13.40
45	HA1-603402 Available to backorder	Extension Spring	£9.64 £8.03
46	HA1-603610 Available to backorder	Spring Washer	£5.46 £4.55
47	HA1-653313 Available to backorder	Exhaust Gasket	£7.31 £6.09
48	HA1-807259 Available to backorder	Key	£2.34 £1.95
50	HA323-15 Available to backorder	Hex Head (Hh) Screw	£2.60 £2.17
51	HA323-8 Available to backorder	Hex Head (Hh) Screw	£2.05 £1.71
52	HA3217-5 Available to backorder	Hex Nut	£0.43 £0.36
54	HA3231-29 Available to backorder	Carriage Screw	£1.16 £0.97
55	HA3256-22 Available to backorder	Flat Washer	£0.64 £0.53
56	HA3256-4 In stock	Flat Washer	£0.48 £0.40
57	HA98-5975 Available to backorder	Belleville Washer	£5.32 £4.43
79	HA140-5456 Available to backorder	Clutch-Pto	£391.55 £326.29
80	HA3212-10 Available to backorder	Screw-Hh[.438-20X2.500.Gr5.Yz]	£4.99 £4.16
