Toro Z Master 122cm - 74456TE (414401000 - 999999999) Electrical

Description

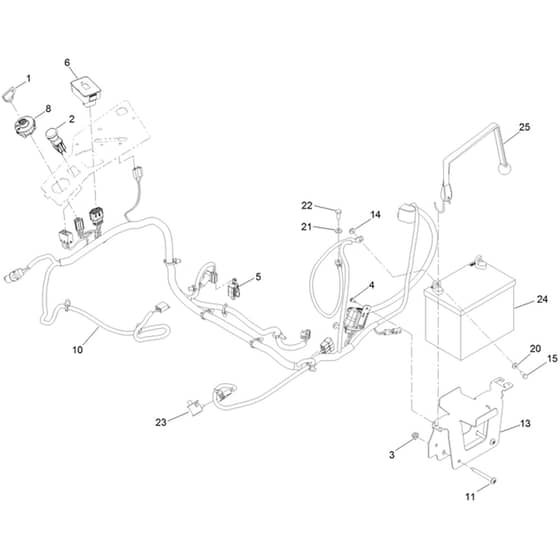

Toro Z Master 122cm - 74456TE (414401000 - 999999999) Electrical Parts Diagram

	Part No.	Details
1	HA63-8360 Available to backorder	Ignition Key	£6.56 £5.47
2	HA103-5221 Available to backorder	Pto Switch	£64.56 £53.80
3	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
4	HA105-6849 Available to backorder	Thread Forming Screw	£0.85 £0.71
5	HA110-6765 Available to backorder	Ignition Switch	£16.08 £13.40
6	HA116-5609 Available to backorder	Module Asm	£227.88 £189.90
8	HA137-4100 Available to backorder	Z-Master Ignition Switch	£32.17 £26.81
10	HA126-5803 Available to backorder	Wire Harness	£367.82 £306.52
11	HA126-6267 Available to backorder	Screw-Tth	£3.20 £2.67
13	HA126-6725-03 Available to backorder	Battery Tray	£32.17 £26.81
14	HA32128-33 Available to backorder	Hex Flange (Hf) Nut	£0.43 £0.36
15	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.22 £1.02
20	HA3256-22 Available to backorder	Flat Washer	£0.64 £0.53
21	HA33094-00 Available to backorder	Plain Washer	£0.43 £0.36
22	HA33114-020 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
23	HA82-2190 Available to backorder	Bail Switch	£17.32 £14.43
25	HA142-8697 Available to backorder	Strap. Bungee	£13.31 £11.09
