Toro Z Master 122cm - 74456TE (412000000 - 414400999) Console and Guard

Name: Toro Z Master 122cm - 74456TE (412000000 - 414400999) Console and Guard
SKU: z_master_122cm_74456te_4124144999_consoleguard-group
Price: 0.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 122cm - 74456TE (412000000 - 414400999) Console and Guard

Description

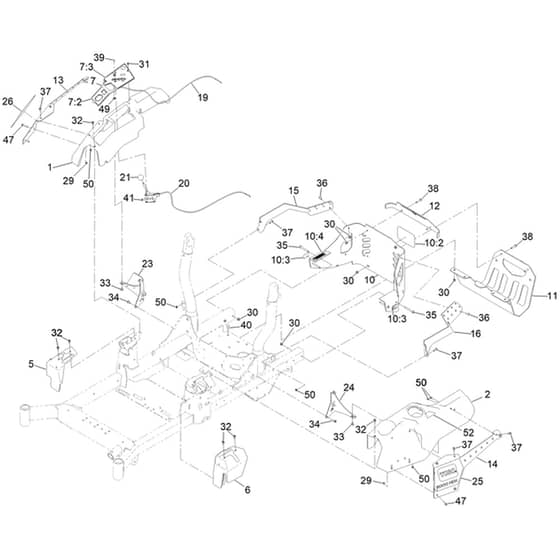

Toro Z Master 122cm - 74456TE (412000000 - 414400999) Console and Guard Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA126-4983 Available to backorder	Console-Rh	£86.14 £71.78
2	HA126-4984 Available to backorder	Console-Lh	£99.30 £82.75
5	HA126-7371 Available to backorder	Cover-Control. Motion (Rh)	£29.90 £24.92
6	HA126-7372 Available to backorder	Cover-Control. Motion (Lh)	£29.90 £24.92
7	HA136-1673 Available to backorder	Control Panel Assembly	£123.88 £103.23
7	HA126-9115 Available to backorder	[7.2] Control Panel Decal	£9.32 £7.77
7	HA137-9240 Available to backorder	[7.3] Control Panel Decal	£20.90 £17.42
10	HA139-3643 Available to backorder	Rear Guard Assembly	£324.12 £270.10
10	HA99-4693 Available to backorder	[10.2] Decal	£27.50 £22.92
10	HA106-5517 Available to backorder	[10.3] Warning Decal	£4.18 £3.48
10	HA133-8062 Available to backorder	[10.4] Decal - Spark Arrestor	£3.76 £3.13
11	HA135-5084-03 Available to backorder	Guard-Muffler	£242.04 £201.70
12	HA139-3644-01 Available to backorder	Upper Rear Trim	£54.70 £45.58
13	HA136-1745-03 Available to backorder	Right Hand Pod Cover - Black	£56.30 £46.92
14	HA136-1746-03 Available to backorder	Left Hand Cover	£56.30 £46.92
15	HA126-9023-01 Available to backorder	Bracket-Guard. Rh	£57.90 £48.25
16	HA126-9022-01 Available to backorder	Bracket-Guard. Lh	£167.32 £139.43
19	HA126-7009 Available to backorder	Choke Control Cable	£40.66 £33.88
20	HA126-7008 Available to backorder	Throttle Control Cable	£57.42 £47.85
21	HA1-603175 Available to backorder	Knob-Ball	£13.16 £10.97
23	HA126-9945 Available to backorder	Support-Console. Rh	£28.70 £23.92
24	HA126-5532-03 Available to backorder	Bracket-Console. Lh	£14.34 £11.95
25	HA140-4354 Available to backorder	Decal - Hdx	£28.94 £24.12
26	HA140-4352 Available to backorder	Right Hand Hdx Decal	£28.94 £24.12
29	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.30 £1.08
30	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
31	HA117-5036 Available to backorder	Screw-Plastic. Hwh[#10-14 X 1.2. Bz]	£0.48 £0.40
32	HA120-7950 Available to backorder	Screw	£2.14 £1.78
33	HA126-5544 Available to backorder	Screw-Torx	£1.13 £0.94
34	HA126-6266 Available to backorder	Screw-Tph	£1.54 £1.28
35	HA126-6267 Available to backorder	Screw-Tth	£3.10 £2.58
36	HA126-6268 Available to backorder	Screw-Tth	£1.66 £1.38
37	HA126-6269 Available to backorder	Screw-Truss	£1.66 £1.38
38	HA126-7439 Available to backorder	Screw-Torx	£2.14 £1.78
39	HA1-807513 Available to backorder	Carriage Bolt	£1.90 £1.58
40	HA3230-22 Available to backorder	Carriage Screw	£2.38 £1.98
41	HA3296-2 Available to backorder	Lock Nut	£2.26 £1.88
47	HA126-8232 Available to backorder	Screw-Truss Hex Skt	£1.78 £1.48
49	HA3220-3 In stock	Hj Nut	Was £0.53 £0.44 Special Price £0.29 £0.24
50	HA32149-2 Available to backorder	Keps Nut	£2.86 £2.38
52	HA126-9939 Available to backorder	Decal-Fill. Fuel	£4.42 £3.68
