Toro Z Master 122cm - 74456TE (410020000 - 411999999) Deck

Description

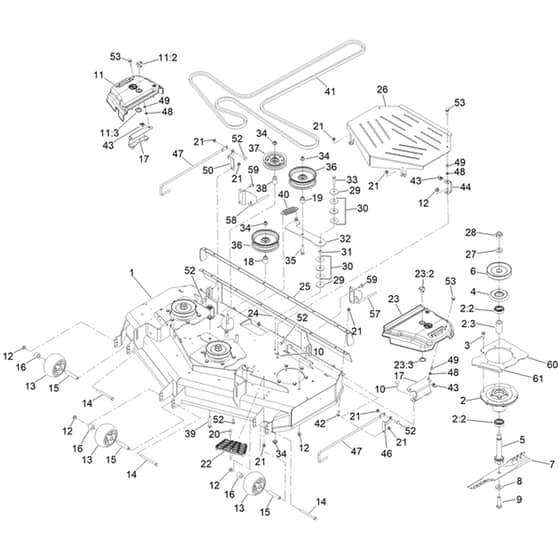

Toro Z Master 122cm - 74456TE (410020000 - 411999999) Deck Parts Diagram

	Part No.	Details
1	HA134-4546 Available to backorder	48 Deck Asm (Service)	£2,179.07 £1,815.89
2	HA120-5477 Available to backorder	Toro Z-Master Deck Spindle Assembly	£111.24 £92.70
2	HA116-0720 Available to backorder	[2.2] Ball Bearing	£28.45 £23.71
2	HA138-7220 Available to backorder	[2.3] Bearing Spacer	£9.02 £7.52
3	HA32144-49 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£5.81 £4.84
4	HA117-7210 Available to backorder	Bearing Shield	£10.16 £8.47
5	HA126-7629 Available to backorder	Spindle Shaft	£50.74 £42.28
6	HA117-7326 Available to backorder	Pulley	£96.96 £80.80
7	HA133-2160 Available to backorder	16.5 Inch Atomic Blade	£42.06 £35.05
8	HA125-1736 Available to backorder	Belleville Washer	£4.82 £4.02
9	HA51-4060 Available to backorder	Blade Screw	£9.40 £7.83
10	HA3231-27 Available to backorder	Carriage Screw	£0.94 £0.78
11	HA126-9325 Available to backorder	Rh Belt Cover Asm	£46.60 £38.83
12	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
13	HA1-603299 Available to backorder	Titan Anti-Scalp & Wear Bar Kit	£28.45 £23.71
14	HA323-23 Available to backorder	Hex Head (Hh) Screw	£3.56 £2.97
15	HA98-7912 In stock	Spanner Tube	£20.94 £17.45
16	HA98-7913 Available to backorder	Spacer Tube	£11.66 £9.72
17	HA126-9121-01 Available to backorder	Bracket-Cover. Belt	£49.92 £41.60
18	HA126-7683 Available to backorder	Idler Bushing	£4.57 £3.81
19	HA126-7684 Available to backorder	Idler Bushing	£3.58 £2.98
20	HA3230-3 Available to backorder	Screw-Carr [.312-18X1.250.Gr5.Yz]	£0.91 £0.76
21	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
22	HA126-4781-03 Available to backorder	Step-Deck	£43.26 £36.05
23	HA126-9326 Available to backorder	Lh Belt Cover Asm	£62.76 £52.30
23	HA126-9323 Available to backorder	[23.2] Plug (Ref 23.2 & 11.2)	£4.80 £4.00
23	HA126-9324 Available to backorder	[23.3] Ring-Retaining (Ref 23.3 & 11.3)	£0.97 £0.81
24	HA134-2542 Available to backorder	Deflector	£48.86 £40.72
26	HA134-5091-03 Available to backorder	Guard-Center Belt 48 (Rd)	£99.72 £83.10
27	HA92-5836 Available to backorder	Washer [Axle]	£6.62 £5.52
28	HA3296-67 Available to backorder	Lock Nut	£8.65 £7.21
29	HA110-9981 Available to backorder	Plain Washer	£23.29 £19.41
30	HA114-0463 In stock	Composite Friction Washer	£8.44 £7.03
31	HA1-413088 Available to backorder	Lift Lever Bushing	£12.35 £10.29
32	HA115-5054 Available to backorder	Idler Arm	£81.36 £67.80
33	HA323-9 Available to backorder	Hex Head (Hh) Screw	£1.60 £1.33
34	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.09 £0.91
35	HA323-16 Available to backorder	Carriage Screw	£3.58 £2.98
36	HA116-4669 Available to backorder	Idler-Pulley. Flat	£88.56 £73.80
37	HA132-4718 Available to backorder	Pulley-Idler	£39.58 £32.98
38	HA1-413113 Available to backorder	Idler Bushing	£6.56 £5.47
39	HA3231-31 Available to backorder	Screw-Carr[.375-16X2.500.Gr5.Yz]	£2.21 £1.84
40	HA139-3616 Available to backorder	Extension Spring	£13.61 £11.34
41	HA126-7731 Available to backorder	Deck V-Belt	£147.12 £122.60
42	HA3230-10 Available to backorder	Carriage Bolt	£0.85 £0.71
43	HA94-2413 Available to backorder	U Nut	£2.21 £1.84
44	HA126-9646 Available to backorder	Bracket-Guard	£43.26 £36.05
46	HA126-7761 Available to backorder	Bracket-Mount. Rear (Lh)	£61.86 £51.55
47	HA126-7759 Available to backorder	Rod-Support. Lower	£106.44 £88.70
48	HA117-2749 Available to backorder	Push Nut	£0.43 £0.36
49	HA73-0041 Available to backorder	Thrust Washer	£2.48 £2.07
50	HA126-7762 Available to backorder	Bracket-Mount. Rear (Rh)	£61.86 £51.55
52	HA3230-23 Available to backorder	Carriage Screw	£1.09 £0.91
53	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£3.14 £2.62
57	HA126-7776 Available to backorder	Support-Lower. Lh	£167.28 £139.40
58	HA126-7777 Available to backorder	Support-Lower. Rh	£167.28 £139.40
59	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
61	HA112-9028 Available to backorder	Decal - Missing Cover	£25.99 £21.66
