Toro Z Master 122cm - 74456TE (410020000 - 411999999) Console and Guard

Name: Toro Z Master 122cm - 74456TE (410020000 - 411999999) Console and Guard
SKU: z_master_122cm_74456te_412411999999_consoleguard-group
Price: 0.24 GBP
Availability: InStock

Part No. z_master_122cm_74456te_412411999999_consoleguard-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 122cm - 74456TE (410020000 - 411999999) Console and Guard

Description

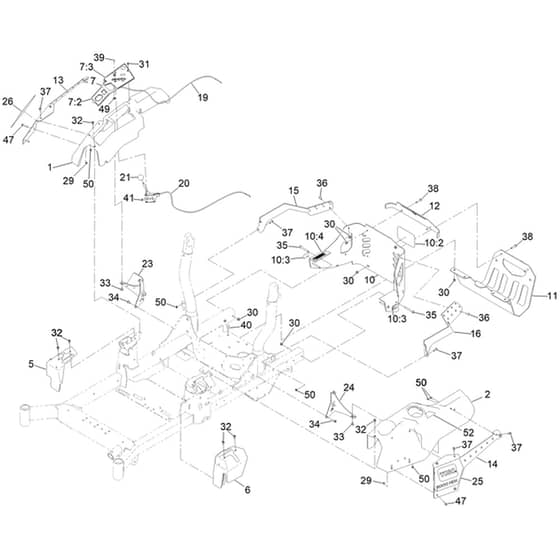

Toro Z Master 122cm - 74456TE (410020000 - 411999999) Console and Guard Parts Diagram

	Part No.	Details
1	HA126-4983 Available to backorder	Console-Rh	£86.16 £71.80
2	HA126-4984 Available to backorder	Console-Lh	£99.36 £82.80
5	HA126-7371 Available to backorder	Cover-Control. Motion (Rh)	£30.94 £25.78
6	HA126-7372 Available to backorder	Cover-Control. Motion (Lh)	£30.94 £25.78
7	HA137-9240 Available to backorder	[7.3] Control Panel Decal	£21.62 £18.02
7	HA136-1673 Available to backorder	Control Panel Assembly	£127.08 £105.90
7	HA126-9115 Available to backorder	[7.2] Control Panel Decal	£9.97 £8.31
10	HA106-5517 Available to backorder	[10.3] Warning Decal	£4.32 £3.60
10	HA99-4693 Available to backorder	[10.2] Decal	£28.45 £23.71
10	HA133-8062 Available to backorder	[10.4] Decal - Spark Arrestor	£4.14 £3.45
10	HA139-3643 Available to backorder	Rear Guard Assembly	£373.80 £311.50
11	HA135-5084-03 Available to backorder	Guard-Muffler	£265.80 £221.50
12	HA139-3644-01 Available to backorder	Upper Rear Trim	£58.24 £48.53
13	HA136-1745-03 Available to backorder	Right Hand Pod Cover - Black	£59.89 £49.91
14	HA136-1746-03 Available to backorder	Left Hand Cover	£59.89 £49.91
15	HA126-9023-01 Available to backorder	Bracket-Guard. Rh	£61.57 £51.31
16	HA126-9022-01 Available to backorder	Bracket-Guard. Lh	£172.20 £143.50
19	HA126-7009 Available to backorder	Choke Control Cable	£42.06 £35.05
20	HA126-7008 Available to backorder	Throttle Control Cable	£59.40 £49.50
21	HA1-603175 Available to backorder	Knob-Ball	£13.61 £11.34
23	HA126-9945 Available to backorder	Support-Console. Rh	£29.69 £24.74
24	HA126-5532-03 Available to backorder	Bracket-Console. Lh	£14.83 £12.36
25	HA140-4354 Available to backorder	Decal - Hdx	£31.61 £26.34
26	HA140-4352 Available to backorder	Right Hand Hdx Decal	£31.61 £26.34
29	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.18 £0.98
30	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
31	HA117-5036 Available to backorder	Screw-Plastic. Hwh[#10-14 X 1.2. Bz]	£0.49 £0.41
32	HA120-7950 Available to backorder	Screw	£2.21 £1.84
33	HA126-5544 Available to backorder	Screw-Torx	£0.97 £0.81
34	HA126-6266 Available to backorder	Screw-Tph	£1.60 £1.33
35	HA126-6267 Available to backorder	Screw-Tth	£3.20 £2.67
36	HA126-6268 Available to backorder	Screw-Tth	£1.72 £1.43
37	HA126-6269 Available to backorder	Screw-Truss	£1.72 £1.43
38	HA126-7439 Available to backorder	Screw-Torx	£2.21 £1.84
39	HA1-807513 Available to backorder	Carriage Bolt	£1.97 £1.64
40	HA3230-22 Available to backorder	Carriage Screw	£2.46 £2.05
41	HA3296-2 Available to backorder	Lock Nut	£2.34 £1.95
47	HA126-8232 Available to backorder	Screw-Truss Hex Skt	£1.84 £1.53
49	HA3220-3 In stock	Hj Nut	Was £0.48 £0.40 Special Price £0.29 £0.24
50	HA32149-2 Available to backorder	Keps Nut	£2.96 £2.47
52	HA126-9939 Available to backorder	Decal-Fill. Fuel	£4.57 £3.81
