Toro Z Master 122cm - 74311TE (405700000 - 412999999) Fuel

Description

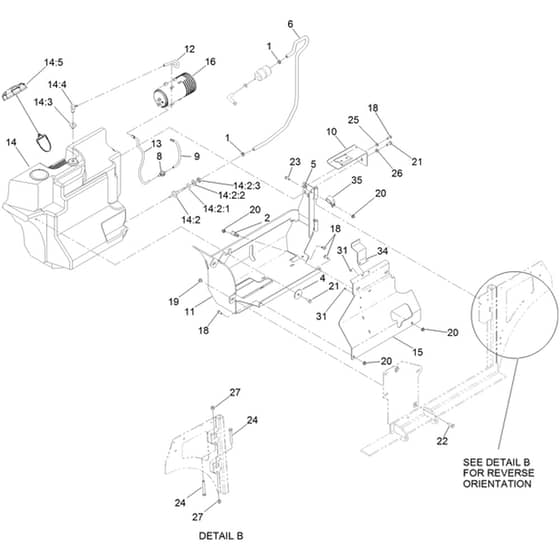

Toro Z Master 122cm - 74311TE (405700000 - 412999999) Fuel Parts Diagram

	Part No.	Details
1	HA2412-98 Available to backorder	Hose Clamp	£1.72 £1.43
2	HA1-513762 Available to backorder	Clip-Loom	£7.78 £6.48
4	HA1-653036 Available to backorder	Washer	£6.14 £5.12
5	HA107069 Available to backorder	Clip	£2.21 £1.84
6	HA109-0284 Available to backorder	Hose-Fuel	£18.31 £15.26
8	HA133-8499 Available to backorder	Valve-Check. Vacuum	£23.23 £19.36
11	HA116-2848-03 Available to backorder	Tank Frame Asm	£375.32 £312.77
12	HA116-2966 Available to backorder	Hose-Vent. Formed	£4.80 £4.00
14	HA116-8365 Available to backorder	Fuel Tank Assembly	£642.95 £535.79
14	HA46-6560 In stock	[14.3] 0.62 Inch X 0.56 Inch X 0.362 Inch Flanged Bushing	£5.24 £4.37
14	HA104-5228 Available to backorder	[14.4] Fitting-90 Deg	£29.98 £24.98
14	HA137-4119 Available to backorder	[14.5] Ratcheting Fuel Cap	£32.17 £26.81
15	HA116-7928-03 Available to backorder	Panel-Tank Shield	£62.28 £51.90
16	HA117-1221 Available to backorder	Canister-Carbon. 800Cc	£113.52 £94.60
18	HA321-3 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
19	HA32128-20 Available to backorder	Hex Flange (Hf) Nut	£1.22 £1.02
20	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.18 £0.98
21	HA322-3 Available to backorder	Hex Head (Hh) Screw	£0.97 £0.81
22	HA322-5 Available to backorder	Hex Head (Hh) Screw	£0.58 £0.48
23	HA3229-1 Available to backorder	Carriage Bolt	£4.20 £3.50
24	HA323-14 Available to backorder	Hex Head (Hh) Screw	£2.29 £1.91
25	HA3256-22 Available to backorder	Flat Washer	£0.64 £0.53
26	HA3256-23 Available to backorder	Plain Washer	£0.48 £0.40
27	HA3296-39 Available to backorder	Lock Nut	£2.83 £2.36
31	HA1-803035 Available to backorder	Pop Rivet	£0.85 £0.71
35	HA110-0824 Available to backorder	R-Clamp	£4.45 £3.71
