Toro Z Master 122cm - 74311TE (404330000 - 405699999) Hydraulic

Description

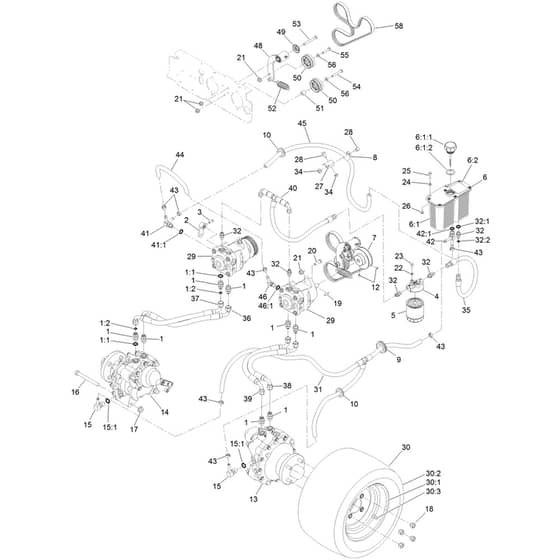

Toro Z Master 122cm - 74311TE (404330000 - 405699999) Hydraulic Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	HA103-1949 Available to backorder	Gasket-Cap	£5.02 £4.18
1	HA1-603990 Available to backorder	Straight Fitting	£20.32 £16.93
1	HA1-603920 Available to backorder	[1.1] O-Ring	£4.06 £3.38
1	HA1-603992 Available to backorder	[1.2] O-Ring	£2.86 £2.38
2	HA1-632208 Available to backorder	Arm-Control. Pump	£31.10 £25.92
3	HA120-6474 Available to backorder	Square Head Set Screw	£2.14 £1.78
4	HA104-7836 Available to backorder	Filter Head	£20.32 £16.93
5	HA114-3494 Available to backorder	Toro Hydraulic Oil Filter	£19.12 £15.93
6	HA116-9274 Available to backorder	Reservoir Asm	£428.40 £357.00
6	HA115-4212 Available to backorder	[6.2] Warning Decal	£14.34 £11.95
8	HA1-633396 Available to backorder	Clip-Loom	£4.54 £3.78
9	HA103-7706 Available to backorder	Grommet	£5.84 £4.87
10	HA1-543286 Available to backorder	Grommet	£14.34 £11.95
12	HA1-803310 Available to backorder	Set Screw	£2.02 £1.68
13	HA116-7401 Available to backorder	Motor-Hyd. Lh	£1,831.20 £1,526.00
14	HA116-7402 Available to backorder	Motor-Hyd. Rh	£1,831.20 £1,526.00
15	HA354-134 Available to backorder	Fitting-90[-6 J1231 Typ 2. -8 Morb]	£89.90 £74.92
15	HA237-79 Available to backorder	[15.1] 0.644 Inch X 0.087 Inch O-Ring	£6.54 £5.45
16	HA325-19 Available to backorder	Hex Head (Hh) Screw	£4.02 £3.35
17	HA32128-49 Available to backorder	Hex Head Flange (Hhf) Nut	£1.62 £1.35
18	HA242-50 Available to backorder	Lug Nut	£1.94 £1.62
19	HA1-807272 Available to backorder	Key	£5.38 £4.48
20	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.22 £1.02
21	HA32128-43 Available to backorder	Flange Nut	£1.78 £1.48
22	HA1-805004 Available to backorder	Washer-Lock	£1.30 £1.08
23	HA321-3 Available to backorder	Hex Head (Hh) Screw	£0.53 £0.44
24	HA3256-22 Available to backorder	Flat Washer	£0.72 £0.60
25	HA321-6 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
26	HA32128-33 Available to backorder	Hex Flange (Hf) Nut	£0.48 £0.40
28	HA323-4 Available to backorder	Hex Head (Hh) Screw	£1.60 £1.33
29	HA116-7836 Available to backorder	12Cc Hydro Pump Asm	£1,100.40 £917.00
30	HA130-2869 Available to backorder	Hydro Drive Wheel And Tire Assembly	£526.80 £439.00
30	HA130-2868 Available to backorder	[30.1] 10 X 7 Inch Wheel	£273.48 £227.90
30	HA105-1945 Available to backorder	[30.2] Zero-Turn Rear Tire	£381.60 £318.00
30	HA5108 Available to backorder	[30.3] Valve Stem	£10.12 £8.43
31	HA116-7831 Available to backorder	Hydraulic Hose Assembly	£77.22 £64.35
32	HA103-2156 Available to backorder	Straight Fitting	£47.86 £39.88
32	HA103-1020 Available to backorder	[32.2] O-Ring	£1.70 £1.42
34	HA3290-357 Available to backorder	Whiz Hex Head Flange (Hhf) Nut	£1.15 £0.96
35	HA126-4400 Available to backorder	Hydraulic Hose Assembly	£41.86 £34.88
36	HA116-7827 Available to backorder	Hydraulic Hose Assembly	£120.66 £100.55
37	HA116-7828 Available to backorder	Hydraulic Hose Assembly	£120.66 £100.55
38	HA116-7829 Available to backorder	Hydraulic Hose Assembly	£120.66 £100.55
39	HA116-7830 Available to backorder	Hydraulic Hose Assembly	£120.66 £100.55
42	HA103-1828 Available to backorder	Adapter-Run. Tee	£52.62 £43.85
43	HA103-1988 Available to backorder	Hose Clamp	£0.98 £0.82
46	HA100-4887 Available to backorder	Fitting-Elbow. 90[-6 Bead. -6 Morb Adj]	£29.62 £24.68
46	HA237-42 Available to backorder	[46.1] 0.468 Inch X 0.078 Inch O-Ring	£4.48 £3.73
49	HA103-2916 Available to backorder	Guard-Top	£2.86 £2.38
50	HA116-6361 Available to backorder	Pulley	£65.80 £54.83
51	HA106-5574 Available to backorder	Steering Mounting Spacer	£14.34 £11.95
53	HA323-20 Available to backorder	Hex Head (Hh) Screw	£2.00 £1.67
54	HA323-12 Available to backorder	Hex Head Screw	£1.80 £1.50
55	HA323-9 Available to backorder	Hex Head (Hh) Screw	£1.54 £1.28
56	HA3256-24 Available to backorder	Flat Washer	£0.53 £0.44
58	HA130-2871 Available to backorder	Z-Master Hydraulic V-Belt	£49.04 £40.87
