Toro Z Master 122cm - 74311TE (400000000 - 401999999) Speed and Steering Control

Name: Toro Z Master 122cm - 74311TE (400000000 - 401999999) Speed and Steering Control
SKU: z_master_122cm_74311te_441999999_speedsteering_control-group
Price: 0.33 GBP
Availability: InStock

Part No. z_master_122cm_74311te_441999999_speedsteering_control-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 122cm - 74311TE (400000000 - 401999999) Speed and Steering Control

Description

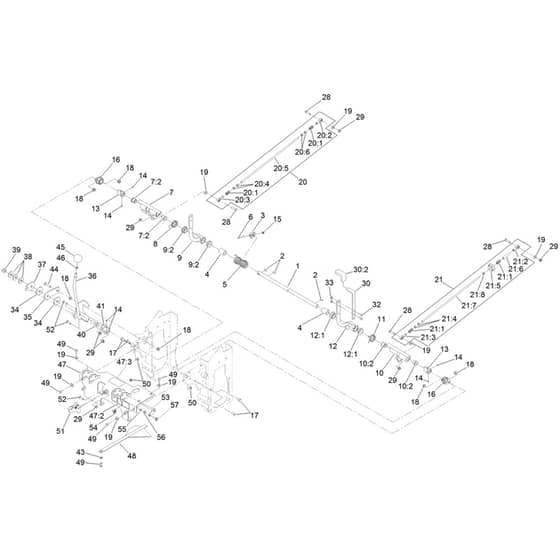

Toro Z Master 122cm - 74311TE (400000000 - 401999999) Speed and Steering Control Parts Diagram

	Part No.	Details
1	HA116-7856 Available to backorder	Shaft-Control. Speed	£201.00 £167.50
2	HA3257-5 Available to backorder	Woodruff Key	£6.35 £5.29
3	HA116-7372 Available to backorder	Stop-Hub. Center	£33.26 £27.72
4	HA116-7414 Available to backorder	Plastic Bushing	£19.78 £16.48
5	HA116-8475 Available to backorder	Spring-Torsion. Double	£28.28 £23.57
6	HA321-11 Available to backorder	Hex Head (Hh) Screw	£0.62 £0.52
7	HA116-8444 Available to backorder	Rh Control Hub Asm	£322.80 £269.00
8	HA116-7380 Available to backorder	Right Hand Torsion Spring	£18.31 £15.26
9	HA126-7461 Available to backorder	Rh Steering Handle Asm	£248.40 £207.00
10	HA116-7416 Available to backorder	Lh Control Hub Asm	£307.32 £256.10
10	HA103-4398 Available to backorder	[10.2] Bearing-Flange. Iglide	£13.61 £11.34
11	HA116-7381 Available to backorder	Left Hand Torsion Spring	£18.31 £15.26
12	HA126-7463 Available to backorder	Lh Steering Handle Asm	£248.40 £207.00
12	HA116-7422 Available to backorder	[12.1] Bearing-Flange. Iglide	£12.80 £10.67
14	HA108-0989 Available to backorder	Set Screw	£1.22 £1.02
15	HA3296-56 Available to backorder	Lock Nut	£2.59 £2.16
16	HA1-633102 Available to backorder	Bearing-Flange. Side	£22.26 £18.55
17	HA323-4 Available to backorder	Hex Head (Hh) Screw	£1.74 £1.45
18	HA3290-357 Available to backorder	Whiz Hex Head Flange (Hhf) Nut	£1.06 £0.88
19	HA3256-3 Available to backorder	Flat Washer	£0.83 £0.69
20	HA116-9667 Available to backorder	Rh Pump Linkage Asm	£95.76 £79.80
21	HA116-9668 Available to backorder	Lh Pump Linkage Asm	£114.84 £95.70
21	HA1-323245 Available to backorder	[21.1] Compression Spring	£7.54 £6.28
21	HA1-543017 Available to backorder	[21.2] Balljoint-Rh	£24.74 £20.62
21	HA1-633152 Available to backorder	[21.3] Balljoint-Lh	£24.74 £20.62
21	HA1-804524 Available to backorder	[21.4] Nut	£2.83 £2.36
21	HA103-3060 Available to backorder	[21.5] Tracking Knob	£8.03 £6.69
21	HA116-7492 Available to backorder	[21.7] Rod-Linkage. Steering	£23.51 £19.59
21	HA3219-2 Available to backorder	[21.8] Hex Nut	£0.62 £0.52
28	HA322-6 Available to backorder	Hex Head (Hh) Screw	£0.77 £0.64
29	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
30	HA116-9246 Available to backorder	Handle Asm	£64.32 £53.60
30	HA103-5994 Available to backorder	[30.2] Comfort Handle Grip	£16.08 £13.40
32	HA321-5 Available to backorder	Hex Head (Hh) Screw	£0.40 £0.33
33	HA32128-33 Available to backorder	Hex Flange (Hf) Nut	£0.43 £0.36
35	HA116-7846 Available to backorder	Plate-Friction. Speed Control	£16.61 £13.84
36	HA116-7845 Available to backorder	Lever-Speed Control	£123.84 £103.20
37	HA116-7849 Available to backorder	Plate-Friction. Speed Control	£13.31 £11.09
38	HA103-5018 Available to backorder	Washer-Disc. Spring	£19.97 £16.64
39	HA3296-19 In stock	Hex Nut	£1.12 £0.93
40	HA116-7848 Available to backorder	Screw-Hh	£2.34 £1.95
41	HA116-7859 Available to backorder	Hub-Control. Speed	£88.44 £73.70
43	HA3256-23 Available to backorder	Plain Washer	£0.48 £0.40
44	HA323-8 Available to backorder	Hex Head (Hh) Screw	£2.05 £1.71
46	HA3218-3 Available to backorder	Jam Nut	£0.43 £0.36
47	HA116-9049 Available to backorder	[47.2] Decal-Danger. Driveline	£7.97 £6.64
47	HA116-8946 Available to backorder	[47.3] Decal-Motor. Wheel	£4.32 £3.60
49	HA322-3 Available to backorder	Hex Head (Hh) Screw	£0.97 £0.81
50	HA32128-20 Available to backorder	Hex Flange (Hf) Nut	£1.22 £1.02
52	HA322-5 Available to backorder	Hex Head (Hh) Screw	£0.58 £0.48
53	HA133-1831 Available to backorder	Flag Pin	£120.72 £100.60
54	HA115-7721 Available to backorder	U Clip Nut	£1.39 £1.16
55	HA117-2749 Available to backorder	Push Nut	£0.43 £0.36
56	HA73-0041 Available to backorder	Thrust Washer	£2.48 £2.07
57	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£3.14 £2.62
