Toro Z Master 122cm - 74311TE (402000000 - 404329999) Electrical System

Name: Toro Z Master 122cm - 74311TE (402000000 - 404329999) Electrical System
SKU: z_master_122cm_74311te_4244329999_electrical_system-group
Price: 0.38 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 122cm - 74311TE (402000000 - 404329999) Electrical System

Description

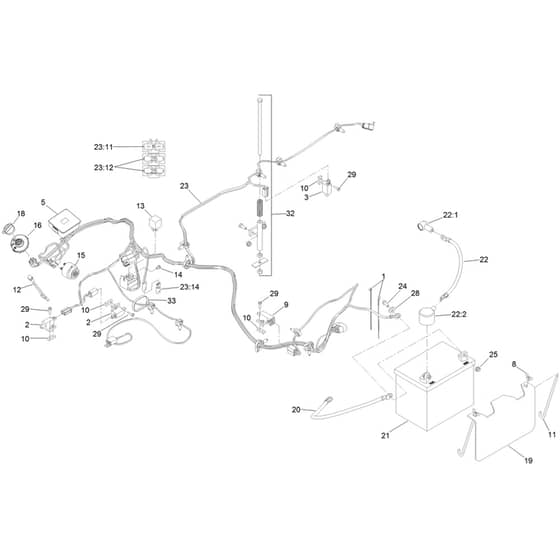

Toro Z Master 122cm - 74311TE (402000000 - 404329999) Electrical System Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA1-303287 Available to backorder	Cable Tie	£0.98 £0.82
2	HA1-513051 Available to backorder	Switch-Open. Normally	£21.52 £17.93
3	HA1-513152 Available to backorder	Switch-Closed. Normally	£15.54 £12.95
5	HA116-8812 Available to backorder	Hour Meter Asm	£199.50 £166.25
8	HA1-543792 Available to backorder	Wingnut	£6.80 £5.67
9	HA1-633111 Available to backorder	Switch For Drive Lever	£23.92 £19.93
10	HA1-633181 Available to backorder	Plate-Tapped	£7.28 £6.07
11	HA1-633651 Available to backorder	Bolt-Holddown	£8.27 £6.89
12	HA1-643267 Available to backorder	Indicator-Led. Red	£27.50 £22.92
13	HA1-643275 Available to backorder	Relay	£26.30 £21.92
14	HA104-2065 In stock	Hex Washer Head (Hwh) Screw	£0.46 £0.38
15	HA103-0205 Available to backorder	Alarm-Tone. Dual	£75.36 £62.80
16	HA137-4100 Available to backorder	Ignition Switch	£31.10 £25.92
18	HA63-8360 Available to backorder	Ignition Key	£6.34 £5.28
19	HA103-4161-03 Available to backorder	Hold Down-Battery	£44.26 £36.88
20	HA103-8355 Available to backorder	Cable-Battery. Negative	£19.12 £15.93
22	HA116-4730 Available to backorder	Positive Battery Cable	£22.72 £18.93
22	HA1-543393 Available to backorder	[22.1] Insulator-Solenoid	£5.84 £4.87
22	HA109-2407 Available to backorder	[22.2] Insulator-Battery	£5.84 £4.87
23	HA116-9114 Available to backorder	Wiring Harness	£420.00 £350.00
23	HA109355 Available to backorder	[23.11] Blade Fuse - 15 Amp	£4.98 £4.15
23	HA109102 Available to backorder	[23.12] Blade Fuse - 25 Amp	£7.70 £6.42
23	HA116-0053 Available to backorder	[23.14] Plug Cap	£45.44 £37.87
24	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.42 £1.18
25	HA32128-33 Available to backorder	Hex Flange (Hf) Nut	£0.48 £0.40
28	HA3256-2 Available to backorder	Flat Washer	£0.72 £0.60
29	HA3290-134 Available to backorder	Screw	£0.50 £0.42
