Toro Z Master 122cm - 74311TE (402000000 - 404329999) Deck

Name: Toro Z Master 122cm - 74311TE (402000000 - 404329999) Deck
SKU: z_master_122cm_74311te_4244329999_deck-group
Price: 0.37 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 122cm - 74311TE (402000000 - 404329999) Deck

Description

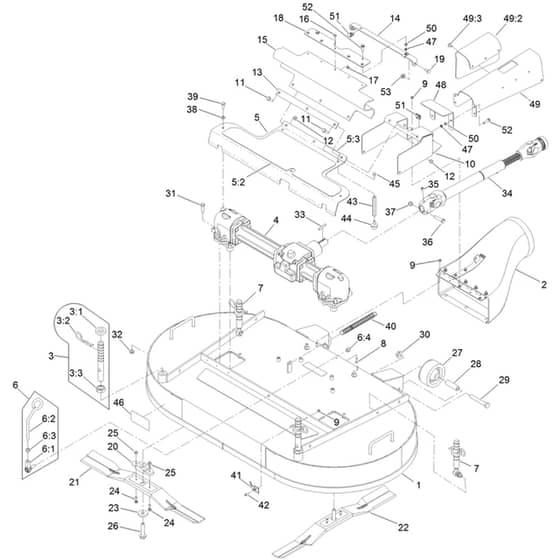

Toro Z Master 122cm - 74311TE (402000000 - 404329999) Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA142-2922 Available to backorder	Deck Decal And Baffle Asm [48 W.De	£1,934.40 £1,612.00
2	HA103-9487 Available to backorder	Discharge Tube Asm	£321.00 £267.50
3	HA103-7353 Available to backorder	[3.2] Pin-Cut Height	£13.16 £10.97
3	HA103-8496 Available to backorder	[3.3] Jam Nut	£4.66 £3.88
4	HA103-3387 Available to backorder	Gear Box Asm	£3,928.80 £3,274.00
5	HA130-2899 Available to backorder	Gearbox Cover Assembly	£197.52 £164.60
5	HA103-8629 Available to backorder	[5.2] Pad-Anti Skid	£22.52 £18.77
5	HA119-0217 Available to backorder	[5.3] Danger Decal	£4.18 £3.48
6	HA3219-3 Available to backorder	[6.3] Hex Nut	£0.65 £0.54
6	HA3296-6 Available to backorder	[6.4] Lock Nut	£1.78 £1.48
8	HA1-803075 Available to backorder	Truss Head Screw	£1.42 £1.18
9	HA3296-2 Available to backorder	Lock Nut	£2.26 £1.88
10	HA133-1870-01 Available to backorder	Front Pto Guard	£173.76 £144.80
11	HA322-5 Available to backorder	Hex Head (Hh) Screw	£0.65 £0.54
12	HA3296-29 Available to backorder	Lock Nut	£2.50 £2.08
14	HA136-1661-03 Available to backorder	Guard Mount - Black	£90.08 £75.07
16	HA114439 Available to backorder	Blind Rivet	£0.98 £0.82
17	HA3256-14 Available to backorder	Flat Washer	£0.72 £0.60
18	HA136-1660-03 Available to backorder	Plate-Guard	£59.56 £49.63
19	HA3230-23 Available to backorder	Carriage Screw	£1.27 £1.06
20	HA103-7705 Available to backorder	Blade Driver	£50.24 £41.87
21	HA130-2862 Available to backorder	Right Hand 25 Inch Standard Blade	£53.82 £44.85
22	HA130-2861 Available to backorder	25 Inch Standard Left Hand Blade	£44.26 £36.88
23	HA30-8770 Available to backorder	Washer [8131]	£5.38 £4.48
24	HA99-0283 Available to backorder	Shear Bolt	£8.48 £7.07
25	HA3296-42 Available to backorder	Ni Lock Nut	£0.44 £0.37
26	HA92-5816 Available to backorder	Blade Bolt	£7.72 £6.43
29	HA325-14 Available to backorder	Hex Head (Hh) Screw	£4.14 £3.45
30	HA32128-49 Available to backorder	Hex Head Flange (Hhf) Nut	£1.62 £1.35
31	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.22 £1.02
32	HA3290-357 Available to backorder	Whiz Hex Head Flange (Hhf) Nut	£1.15 £0.96
33	HA67-7490 Available to backorder	Key-Square [.250 X 1.50]	£2.74 £2.28
34	HA103-9485 Available to backorder	Drive Shaft Asm	£483.60 £403.00
35	HA3247-2 Available to backorder	Screw-Set. Hsh [3.8-16 X 3.8 Cup Point]	£1.27 £1.06
36	HA323-9 Available to backorder	Hex Head (Hh) Screw	£1.54 £1.28
37	HA3296-39 Available to backorder	Lock Nut	£2.74 £2.28
38	HA3256-23 Available to backorder	Plain Washer	£0.53 £0.44
39	HA322-3 Available to backorder	Hex Head (Hh) Screw	£1.13 £0.94
42	HA3290-134 Available to backorder	Screw	£0.50 £0.42
44	HA1-523420 Available to backorder	Bumper	£16.74 £13.95
45	HA321-2 Available to backorder	Screw-Hh [.250-20X.500.Gr5.Yz]	£4.38 £3.65
46	HA130-2887 Available to backorder	Decal	£16.74 £13.95
47	HA32115-15 Available to backorder	Retainer Nut	£1.18 £0.98
48	HA133-1871-01 Available to backorder	Pto Guard	£86.22 £71.85
49	HA133-1877 Available to backorder	Pto Guard Assembly	£209.76 £174.80
49	HA133-1883 Available to backorder	[49.2] Rubber Flap	£77.22 £64.35
49	HA1-803035 Available to backorder	[49.3] Pop Rivet	£0.98 £0.82
50	HA3256-60 Available to backorder	Washer-Flat[.266X.500.Stl.Yz..030 Thk]	£2.34 £1.95
51	HA107069 Available to backorder	Clip	£2.14 £1.78
53	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
