Toro Z Master 122cm - 74311TE (413000000 - 415899999) Engine, Muffler and Air Cleaner

Name: Toro Z Master 122cm - 74311TE (413000000 - 415899999) Engine, Muffler and Air Cleaner
SKU: z_master_122cm_74311te_413415899999_engine_mufflerair_cleaner-gr
Price: 0.36 GBP
Availability: InStock

Part No. z_master_122cm_74311te_413415899999_engine_mufflerair_cleaner-gr

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 122cm - 74311TE (413000000 - 415899999) Engine, Muffler and Air Cleaner

Description

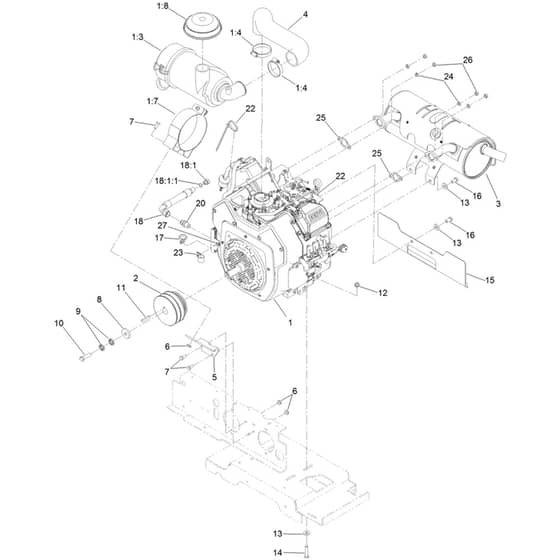

Toro Z Master 122cm - 74311TE (413000000 - 415899999) Engine, Muffler and Air Cleaner Parts Diagram

	Part No.	Details
0	HA237-42 Available to backorder	O-Ring	£4.76 £3.97
1	HA103-8569 Available to backorder	[1.3] Air Cleaner Canister Asm	£452.95 £377.46
1	HA2412-42 Available to backorder	[1.4] Clamp-Hose	£4.55 £3.79
1	HA103-1058 Available to backorder	[1.7] Bracket-Filter. Air	£123.24 £102.70
1	HA100-2436 Available to backorder	[1.8] Hood-Cleaner. 2" Air Intake	£80.16 £66.80
6	HA32128-20 Available to backorder	Nut-Hf	£1.22 £1.02
7	HA322-3 Available to backorder	Screw-Hh	£0.97 £0.81
8	HA1-543610 Available to backorder	Washer-Flat	£8.14 £6.78
9	HA1-603610 Available to backorder	Washer-Spring	£5.46 £4.55
10	HA3212-6 Available to backorder	Screw-Hh	£2.54 £2.12
11	HA67-7490 Available to backorder	Key-Square	£2.83 £2.36
12	HA3290-357 Available to backorder	Nut-Hsf	£1.06 £0.88
13	HA98-5975 Available to backorder	Washer-Belleville	£5.32 £4.43
14	HA323-9 Available to backorder	Screw-Hh	£1.60 £1.33
15	HA109-0181-03 Available to backorder	Shield-Exhaust	£71.76 £59.80
16	HA323-4 Available to backorder	Screw-Hh	£1.74 £1.45
18	HA116-5338 Available to backorder	Oil Drain Hose Asm	£71.76 £59.80
18	HA353-508 Available to backorder	[18.1] Plug-Hh	£8.65 £7.21
20	HA116-1455 Available to backorder	Fitting-Straight	£8.03 £6.69
23	HA1-633396 Available to backorder	Clip-Loom	£4.69 £3.91
24	HA1-805005 Available to backorder	Washer-Lock	£1.49 £1.24
25	HA110-6697 Available to backorder	Gasket-Exhaust	£7.91 £6.59
26	HA33014-00 Available to backorder	Nut-Hex	£0.43 £0.36
27	HA126-4338 Available to backorder	Screw-Hh	£2.21 £1.84
