Toro Z Master 122cm - 74311TE (316000001 - 316999999) Pump and Muffler Guard

Toro Z Master 122cm - 74311TE (316000001 - 316999999) Pump and Muffler Guard
Toro Z Master 122cm - 74311TE (316000001 - 316999999) Pump and Muffler Guard

Description

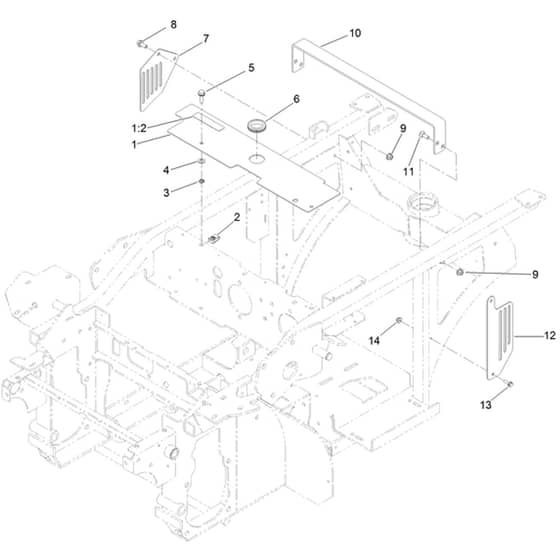

Toro Z Master 122cm - 74311TE (316000001 - 316999999) Pump and Muffler Guard Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Pump Guard Assembly
Pump Guard Assembly
HA133-1826
Available to backorder
Pump Guard Assembly
£69.18 £57.65

  1 [1.2] Warning Decal
[1.2] Warning Decal
HA98-1977
Available to backorder
[1.2] Warning Decal
£13.16 £10.97

  2 U Clip Nut
U Clip Nut
HA115-7721
Available to backorder
U Clip Nut
£1.54 £1.28

  3 Push Nut
Push Nut
HA117-2749
Available to backorder
Push Nut
£0.48 £0.40

  4 Thrust Washer
Thrust Washer
HA73-0041
Available to backorder
Thrust Washer
£2.34 £1.95

  5 Hex Head Flange (Hhf) Screw
Hex Head Flange (Hhf) Screw
HA3234-29
Available to backorder
Hex Head Flange (Hhf) Screw
£2.88 £2.40

  6 Rubber Grommet
Rubber Grommet
HA240-3
Available to backorder
Rubber Grommet
£28.06 £23.38

  7 Right Hand Muffler Guard
Right Hand Muffler Guard
HA133-1824-03
Available to backorder
Right Hand Muffler Guard
£25.06 £20.88

  8 Hex Head Flange (Hhf) Screw
Hex Head Flange (Hhf) Screw
HA3234-47
Available to backorder
Hex Head Flange (Hhf) Screw
£2.14 £1.78

  9 Hex Flange (Hf) Nut
Hex Flange (Hf) Nut
HA104-8300
Available to backorder
Hex Flange (Hf) Nut
£0.62 £0.52

  10 Top Muffler Guard
Top Muffler Guard
HA133-1823-03
Available to backorder
Top Muffler Guard
£62.70 £52.25

  11 Carriage Screw
Carriage Screw
HA3230-16
Available to backorder
Carriage Screw
£2.14 £1.78

  12 Left Hand (Lh) Muffler Guard
Left Hand (Lh) Muffler Guard
HA133-1822-03
Available to backorder
Left Hand (Lh) Muffler Guard
£25.06 £20.88

  13 Hex Washer Head (Hwh) Screw
Hex Washer Head (Hwh) Screw
HA32105-15
Available to backorder
Hex Washer Head (Hwh) Screw
£2.14 £1.78

  14 Hex Flange (Hf) Nut
Hex Flange (Hf) Nut
HA104-7201
Available to backorder
Hex Flange (Hf) Nut
£1.30 £1.08


Description

Toro Z Master 122cm - 74311TE (316000001 - 316999999) Pump and Muffler Guard Parts Diagram
