Toro Z Master 122cm - 74311TE (316000001 - 316999999) Electrical

Description

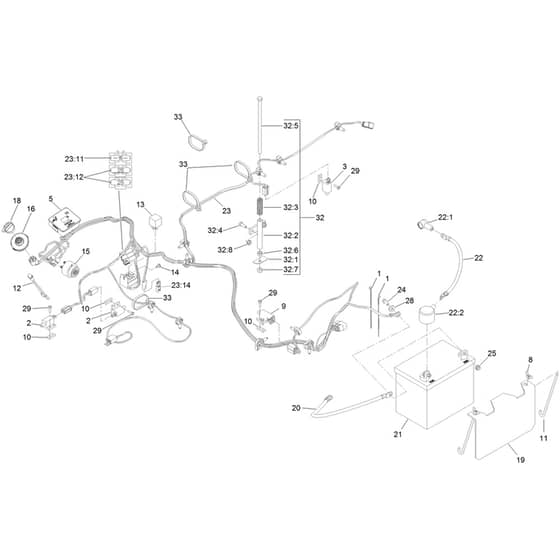

Toro Z Master 122cm - 74311TE (316000001 - 316999999) Electrical Parts Diagram

	Part No.	Details
1	HA1-303287 Available to backorder	Cable Tie	£0.85 £0.71
2	HA1-513051 Available to backorder	Switch-Open. Normally	£22.26 £18.55
3	HA1-513152 Available to backorder	Switch-Closed. Normally	£16.08 £13.40
5	HA116-8812 Available to backorder	Hour Meter Asm	£202.56 £168.80
8	HA1-543792 Available to backorder	Wingnut	£7.03 £5.86
9	HA1-633111 Available to backorder	Switch For Drive Lever	£24.74 £20.62
10	HA1-633181 Available to backorder	Plate-Tapped	£7.54 £6.28
11	HA1-633651 Available to backorder	Bolt-Holddown	£8.52 £7.10
12	HA1-643267 Available to backorder	Indicator-Led. Red	£28.45 £23.71
13	HA1-643275 Available to backorder	Relay	£27.20 £22.67
14	HA104-2065 In stock	Hex Washer Head (Hwh) Screw	£0.50 £0.42
15	HA103-0205 Available to backorder	Alarm-Tone. Dual	£75.36 £62.80
16	HA137-4100 Available to backorder	Ignition Switch	£32.17 £26.81
18	HA63-8360 Available to backorder	Ignition Key	£6.56 £5.47
19	HA103-4161-03 Available to backorder	Hold Down-Battery	£45.79 £38.16
20	HA103-8355 Available to backorder	Cable-Battery. Negative	£19.78 £16.48
22	HA116-4730 Available to backorder	Positive Battery Cable	£23.51 £19.59
22	HA1-543393 Available to backorder	[22.1] Insulator-Solenoid	£6.04 £5.03
22	HA109-2407 Available to backorder	[22.2] Insulator-Battery	£6.04 £5.03
23	HA116-9114 Available to backorder	Wiring Harness	£388.08 £323.40
23	HA109355 Available to backorder	[23.11] Blade Fuse - 15 Amp	£5.32 £4.43
23	HA109102 Available to backorder	[23.12] Blade Fuse - 25 Amp	£8.14 £6.78
23	HA116-0053 Available to backorder	[23.14] Plug Cap	£47.00 £39.17
28	HA3256-2 Available to backorder	Flat Washer	£0.64 £0.53
29	HA3290-134 Available to backorder	Screw	£0.48 £0.40
32	HA126-7505 Available to backorder	[32.1] Plate-Switch	£8.40 £7.00
32	HA1-522424-03 Available to backorder	[32.2] Mount-Spring. Seat	£43.31 £36.09
32	HA1-523415 Available to backorder	[32.3] Spring-Switch. Seat	£39.58 £32.98
32	HA321-4 Available to backorder	[32.4] Hex Head (Hh) Screw	£1.22 £1.02
32	HA322-50 Available to backorder	[32.5] Hex Head (Hh) Screw	£5.81 £4.84
32	HA3217-6 Available to backorder	[32.6] Hex Nut	£1.46 £1.22
32	HA3296-29 Available to backorder	[32.7] Lock Nut	£2.59 £2.16
32	HA32128-33 Available to backorder	[32.8] Hex Flange (Hf) Nut	£0.43 £0.36
