Toro Z Master 122cm - 74311TE (316000001 - 316999999) Drive

Name: Toro Z Master 122cm - 74311TE (316000001 - 316999999) Drive
SKU: z_master_122cm_74311te_3161316999999_drive-group
Price: 0.4 GBP
Availability: InStock

Part No. z_master_122cm_74311te_3161316999999_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 122cm - 74311TE (316000001 - 316999999) Drive

Description

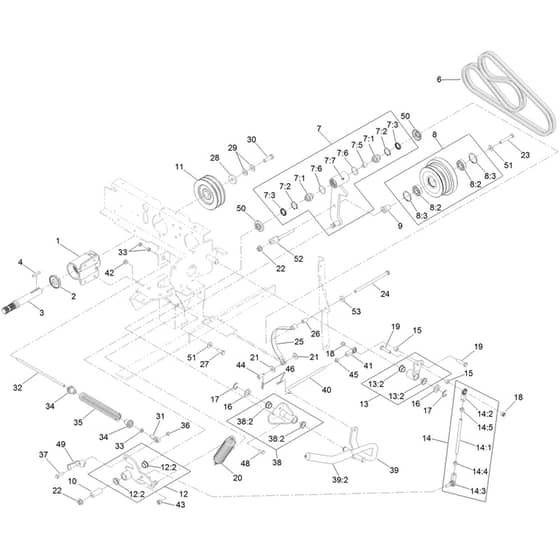

Toro Z Master 122cm - 74311TE (316000001 - 316999999) Drive Parts Diagram

	Part No.	Details
1	HA114-0250 Available to backorder	Jackshaft Asm	£347.53 £289.61
2	HA103-2535 Available to backorder	Spacer-Guard. Bottom	£14.83 £12.36
4	HA67-7490 Available to backorder	Key-Square [.250 X 1.50]	£2.83 £2.36
6	HA130-2870 Available to backorder	Z-Master Matched Drive Assembly Belts	£168.72 £140.60
7	HA103-8253 Available to backorder	Idler Pivot Asm	£252.96 £210.80
7	HA103-3504 Available to backorder	[7.1] Spherical Bearing	£29.69 £24.74
7	HA32120-10 Available to backorder	[7.2] Snap Ring	£1.60 £1.33
7	HA103-3506 Available to backorder	[7.3] Seal-Lip. Single	£6.56 £5.47
7	HA1-413088 Available to backorder	[7.5] Lift Lever Bushing	£12.35 £10.29
7	HA106-7159 Available to backorder	[7.6] 1.174 Inch X 0.103 Inch O-Ring	£1.69 £1.41
7	HA302-19 Available to backorder	[7.7] Fitting-Grease [1.4-28X.51.W.Chk]	£1.06 £0.88
8	HA251-347 Available to backorder	[8.2] 1.6535 Inch X 0.7874 Inch X 0.4724 Inch Deep Groove Ball Bearing	£16.60 £13.83
13	HA103-9297 Available to backorder	Arm Assembly	£129.24 £107.70
14	HA103-1167 Available to backorder	[14.2] Joint-Ball End. Lh	£38.36 £31.97
14	HA3219-20 Available to backorder	[14.5] Nut-Hex. Lh	£2.09 £1.74
15	HA92-9025 Available to backorder	Spacer	£12.43 £10.36
16	HA1-303007 Available to backorder	Washer	£6.97 £5.81
17	HA32151-48 Available to backorder	E-Ring	£1.74 £1.45
18	HA3296-39 Available to backorder	Lock Nut	£2.83 £2.36
19	HA323-9 Available to backorder	Hex Head (Hh) Screw	£1.60 £1.33
21	HA3256-4 In stock	Flat Washer	£0.48 £0.40
22	HA32128-19 Available to backorder	Nut-Hf Lock. Large Flg	£1.69 £1.41
23	HA323-12 Available to backorder	Hex Head Screw	£1.94 £1.62
24	HA323-36 Available to backorder	Screw-Hh[.375-16X7.000.Gr5.Yz]	£5.23 £4.36
27	HA323-6 Available to backorder	Hex Head (Hh) Screw	£1.14 £0.95
28	HA1-543610 Available to backorder	Clutch Washer	£8.14 £6.78
29	HA1-603610 Available to backorder	Spring Washer	£5.46 £4.55
30	HA3212-6 Available to backorder	Screw-Hh[.438-20X1.500.Gr5.Yz]	£2.54 £2.12
31	HA1-543017 Available to backorder	Balljoint-Rh	£24.74 £20.62
33	HA3219-2 Available to backorder	Hex Nut	£0.62 £0.52
36	HA3296-29 Available to backorder	Lock Nut	£2.59 £2.16
37	HA322-6 Available to backorder	Hex Head (Hh) Screw	£0.77 £0.64
38	HA108519 Available to backorder	[38.2] Bronze Bushing	£18.56 £15.47
39	HA103-8153 Available to backorder	[39.2] Grip-Lever. Control	£17.32 £14.43
41	HA103-0608 Available to backorder	Joint-Ball. End	£39.58 £32.98
42	HA32128-20 Available to backorder	Hex Flange (Hf) Nut	£1.22 £1.02
43	HA3296-6 Available to backorder	Lock Nut	£1.84 £1.53
44	HA283-2 Available to backorder	Clevis Pin	£16.08 £13.40
45	HA3219-3 Available to backorder	Hex Nut	£0.58 £0.48
46	HA1-806003 Available to backorder	Cotter Pin	£1.72 £1.43
48	HA322-3 Available to backorder	Hex Head (Hh) Screw	£0.97 £0.81
50	HA103-2916 Available to backorder	Guard-Top	£2.96 £2.47
51	HA98-5975 Available to backorder	Belleville Washer	£5.32 £4.43
53	HA5-0652 Available to backorder	Spacer	£9.17 £7.64
