Toro Z Master 122cm - 74048TE (408906417 - 410169999) LH Transaxle No. 139-1074

Toro Z Master 122cm - 74048TE (408906417 - 410169999) LH Transaxle No. 139-1074

Description

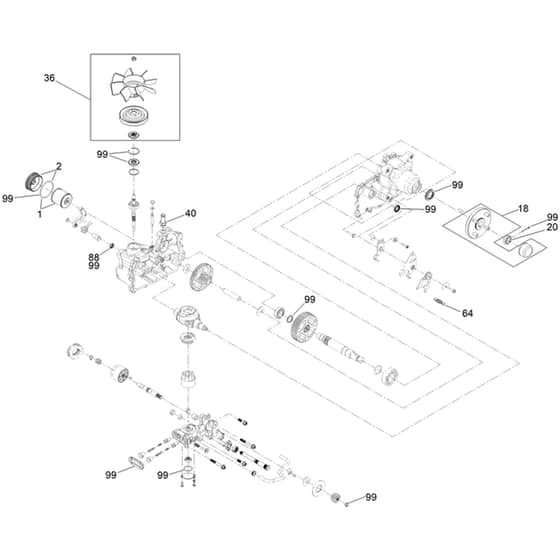

Toro Z Master 122cm - 74048TE (408906417 - 410169999) LH Transaxle No. 139-1074 Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HA144-6598 Available to backorder	Kit. Filter		£64.26 £53.55
	2		HA144-6599 Available to backorder	Kit. Filler Cap		£53.08 £44.23
	18		HA144-6594 Available to backorder	Hub-4 Bolt		£321.36 £267.80
	20		HA144-6595 Available to backorder	Nut. Slotted		£34.48 £28.73
	36		HA144-6597 Available to backorder	Kit. Fan And Pulley		£180.20 £150.17
	40		HA144-6601 Available to backorder	Fitting-5.8 Beaded. 7.8 Sae		£75.24 £62.70
	64		HA125-4684 Available to backorder	Spring-Extension		£17.24 £14.37
	88		HA145-3637 Available to backorder	Seal. Brake		£8.46 £7.05
	99		HA144-6600 Available to backorder	Kit. Seal		£98.82 £82.35

Description

Toro Z Master 122cm - 74048TE (408906417 - 410169999) LH Transaxle No. 139-1074 Parts Diagram
