Toro Z Master 122cm - 74048TE (400000000 - 408767851) Deck Lift

Description

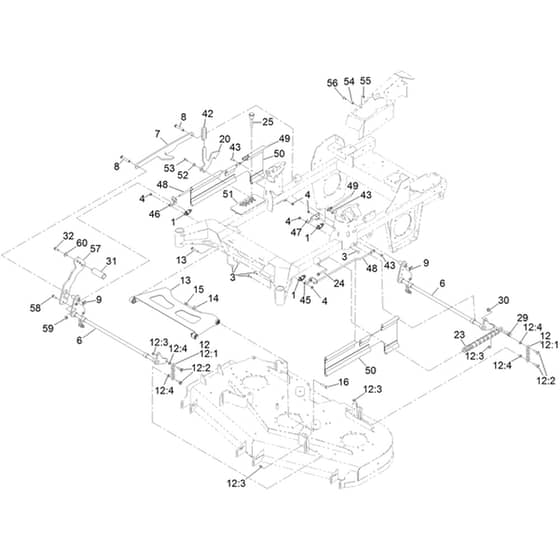

Toro Z Master 122cm - 74048TE (400000000 - 408767851) Deck Lift Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA115-5065 Available to backorder	Flange Bushing	£7.52 £6.27
3	HA3230-22 Available to backorder	Carriage Screw	£2.38 £1.98
4	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
6	HA140-4975-03 Available to backorder	Deck Lift Shaft Assembly	£125.48 £104.57
7	HA126-4639-03 Available to backorder	Lift Link	£96.52 £80.43
8	HA126-9181 Available to backorder	Clevis Pin	£9.08 £7.57
9	HA138-8491 Available to backorder	Pin Clip	£9.46 £7.88
12	HA126-8877 Available to backorder	Deck Chain Asm	£15.54 £12.95
12	HA1-633447 Available to backorder	[12.1] Chain-Lift. Deck	£11.94 £9.95
12	HA130-0742 Available to backorder	[12.2] Shoulder Bolt	£2.14 £1.78
12	HA43-0940 Available to backorder	[12.4] Spacer [3.8 X 7.8 X 10 Ga Stl. Cz]	£1.96 £1.63
13	HA140-1179 Available to backorder	Deck Strut Assembly With Bushings	£185.64 £154.70
14	HA1-373034 Available to backorder	Washer	£5.00 £4.17
15	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.27 £1.06
16	HA323-17 Available to backorder	Carriage Screw	£3.20 £2.67
20	HA140-1249 Available to backorder	Transport Lock Plate	£38.60 £32.17
23	HA116-0886 Available to backorder	Extension Spring	£156.72 £130.60
24	HA92-7674 Available to backorder	Shoulder Bolt	£3.10 £2.58
25	HA126-5401 Available to backorder	Pin-Hoc	£25.12 £20.93
29	HA116-0780 Available to backorder	Hex Head Flange (Hhf) Shoulder Screw	£9.56 £7.97
30	HA99-5107 Available to backorder	Lock Nut	£2.78 £2.32
31	HA140-4959 Available to backorder	Foot Life Pedal	£50.50 £42.08
32	HA3234-42 Available to backorder	Hex Head Flange (Hhf) Screw	£1.72 £1.43
42	HA132-4749 Available to backorder	Lever Grip	£5.84 £4.87
43	HA3234-47 Available to backorder	Hex Head Flange (Hhf) Screw	£2.14 £1.78
45	HA140-4918 Available to backorder	Left Hand Upper Front Mount Bracket	£36.98 £30.82
46	HA140-4919 Available to backorder	Right Hand Upper Front Mount Bracket	£36.98 £30.82
47	HA145-1275 Available to backorder	Obs Upper Rear Mount Bracket	£17.70 £14.75
48	HA126-7760 Available to backorder	Rod-Support. Upper	£106.46 £88.72
50	HA126-8561 Available to backorder	Guard-Side	£218.28 £181.90
51	HA140-4927 Available to backorder	Decal - Height Of Cut (Hoc)	£54.44 £45.37
52	HA104-7658 Available to backorder	Spacer	£1.42 £1.18
53	HA9266934 Available to backorder	Screw	£9.44 £7.87
54	HA114-2754 Available to backorder	Spacer	£13.16 £10.97
55	HA3296-47 Available to backorder	Lock Nut	£4.30 £3.58
56	HA126-7439 Available to backorder	Screw-Torx	£2.14 £1.78
57	HA144-2699-03 Available to backorder	Deck Lift Arm	£50.14 £41.78
59	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
60	HA2844 Available to backorder	Washer	£4.22 £3.52
