Toro Z Master 122cm - 74048TE (418029516 - 420199999) Motion Control

Description

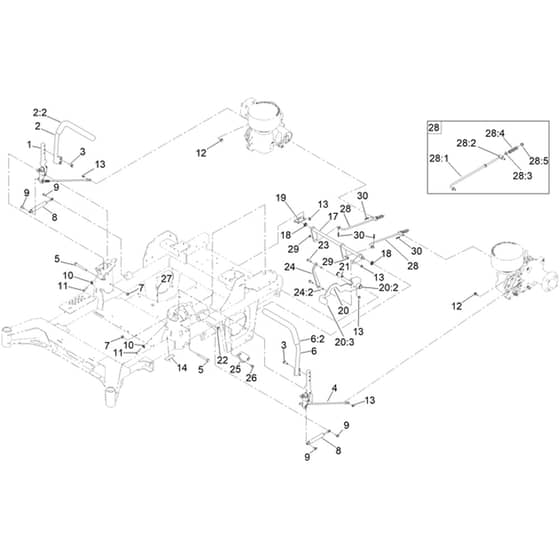

Toro Z Master 122cm - 74048TE (418029516 - 420199999) Motion Control Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA147-5046 Available to backorder	Right Hand (Rh) Motion Control Assembly	£164.10 £136.75
2	HA147-2390 Available to backorder	Right Hand (Rh) Handle Assembly	£98.14 £81.78
3	HA110-5052 Available to backorder	Screw-Hhf	£2.10 £1.75
4	HA147-5047 Available to backorder	Left Hand (Lh) Motion Control Assembly	£164.10 £136.75
5	HA115-5099 Available to backorder	Pivot Bolt	£3.94 £3.28
6	HA147-2391 Available to backorder	Left Hand (Lh) Handle Assembly	£98.14 £81.78
6	HA109-5668 Available to backorder	[6.2] Grip-Lever. Control	£16.74 £13.95
8	HA142-6851 Available to backorder	Damper	£35.88 £29.90
9	HA126-4424 Available to backorder	Shoulder Screw	£2.02 £1.68
10	HA112-3306 Available to backorder	Nut	£1.46 £1.22
11	HA126-4299 Available to backorder	Hex Socket Button Head (Hsbh) Screw	£2.38 £1.98
12	HA37-8771 Available to backorder	Hex Flange (Hf) Shoulder Bolt	£5.78 £4.82
13	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
14	HA115-9625 Available to backorder	Decal - Parking Brake	£4.90 £4.08
17	HA144-2658 Available to backorder	Brake Assembly	£149.62 £124.68
18	HA126-5820 Available to backorder	Spherical Bearing	£9.08 £7.57
19	HA139-6742 Available to backorder	Brake Bracket	£9.20 £7.67
20	HA139-6726 Available to backorder	Brake Lever Assembly With Grip (Service)	£78.82 £65.68
20	HA109-8054 Available to backorder	[20.2] Flange Bushing	£5.38 £4.48
20	HA132-4749 Available to backorder	[20.3] Lever Grip	£5.84 £4.87
21	HA139-6743 Available to backorder	Handle Pivot	£17.70 £14.75
22	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£2.88 £2.40
23	HA116-2670 Available to backorder	Shoulder Screw	£8.00 £6.67
24	HA144-6566 Available to backorder	Brake Link Assembly	£26.30 £21.92
24	HA116-4976 Available to backorder	[24.2] Sleeve Bushing	£2.86 £2.38
25	HA139-6745 Available to backorder	Switch Plate	£9.68 £8.07
26	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
27	HA3230-23 Available to backorder	Carriage Screw	£1.27 £1.06
28	HA144-0353 Available to backorder	Brake Rod Assembly	£27.50 £22.92
28	HA139-6741 Available to backorder	[28.2] Rod Fitting	£19.12 £15.93
28	HA3256-3 Available to backorder	[28.3] Flat Washer	£0.94 £0.78
28	HA104-8301 Available to backorder	[28.5] Hex Flange (Hf) Nut	£1.74 £1.45
29	HA3256-45 Available to backorder	Flat Washer	£0.48 £0.40
30	HA119-1415 Available to backorder	Pin-Cotter. Locking	£0.41 £0.34
