Toro Z Master 122cm - 74048TE (418029516 - 420199999) Engine, Clutch and Muffler

Description

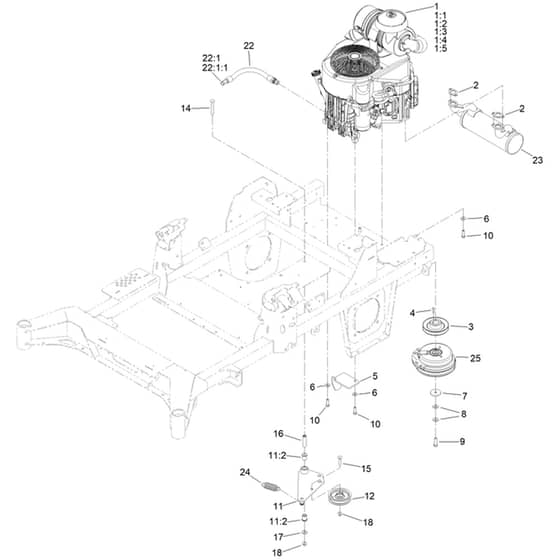

Toro Z Master 122cm - 74048TE (418029516 - 420199999) Engine, Clutch and Muffler Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA119-5852 Available to backorder	[1.1] Oil Filter	£42.44 £35.37

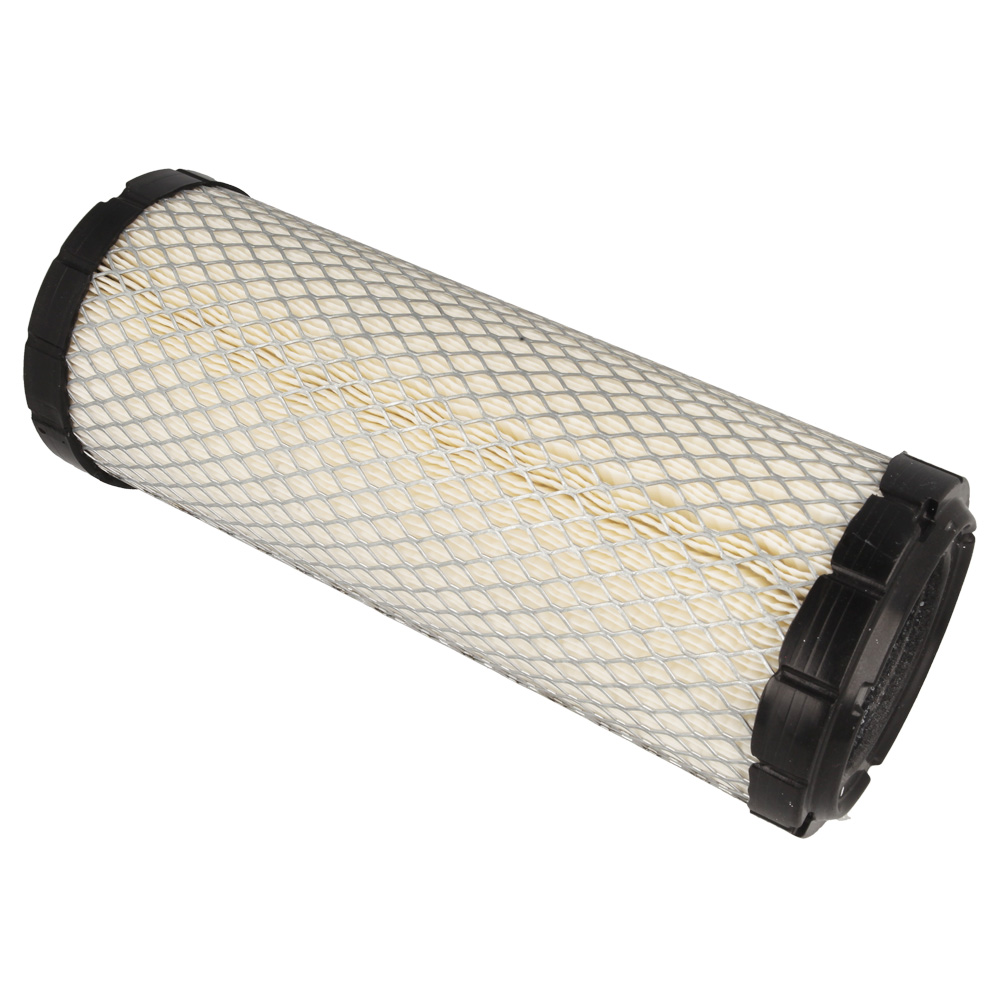

1	HA119-5944 Available to backorder	[1.2] Outer Air Filter Element	£73.32 £61.10

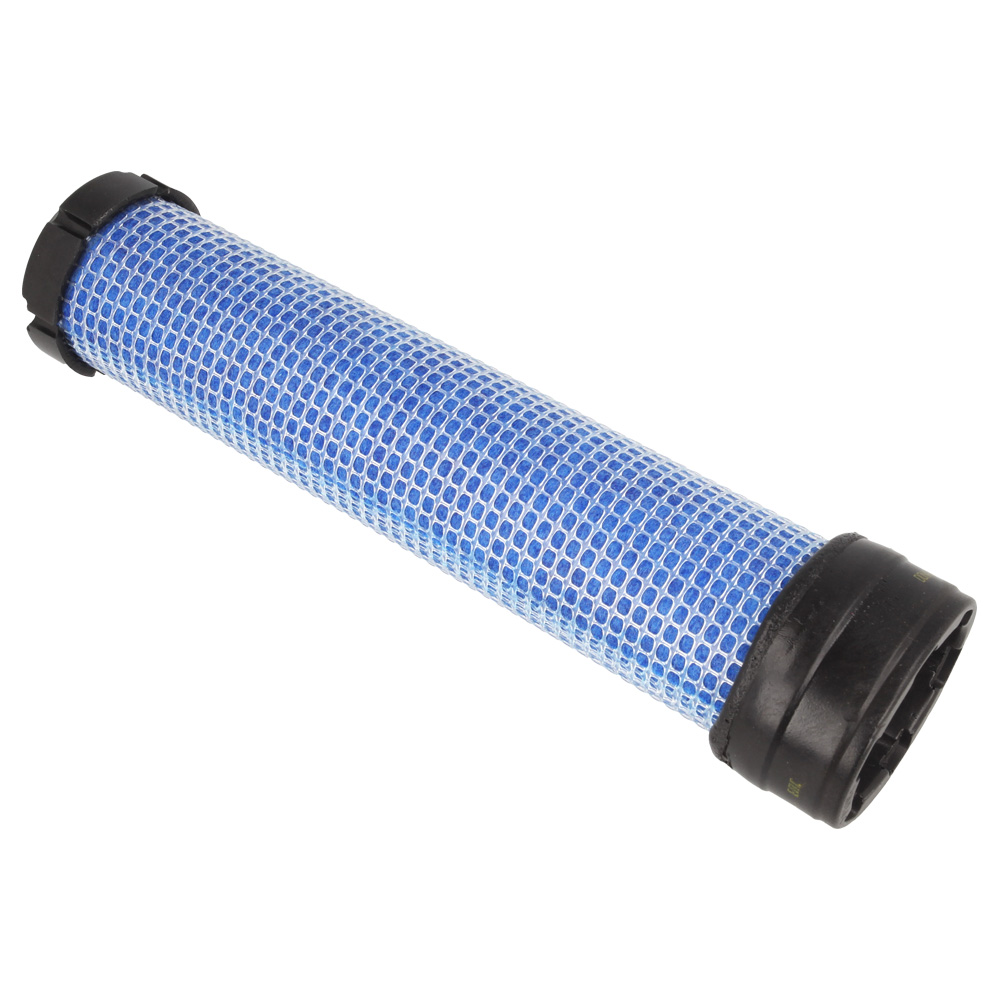

1	HA119-5945 Available to backorder	[1.3] Inner Air Filter Element	£82.06 £68.38
1	HA92-2153 In stock	[1.5] Spark Plug	£3.59 £2.99
2	HA1-653313 Available to backorder	Exhaust Gasket	£7.06 £5.88
3	HA139-6702 Available to backorder	Sheave With Hub	£34.68 £28.90
4	HA1-807259 Available to backorder	Key	£2.26 £1.88
5	HA140-1190 Available to backorder	Clutch Anchor	£22.52 £18.77
6	HA98-5975 Available to backorder	Belleville Washer	£5.14 £4.28
7	HA109-6919 Available to backorder	Clutch Washer	£11.88 £9.90
8	HA1-603610 Available to backorder	Spring Washer	£5.28 £4.40
9	HA109-9761 Available to backorder	Screw-Hh. W.Loctite	£5.26 £4.38
10	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.08 £0.90
11	HA144-2671 Available to backorder	Idler Arm Assembly	£78.82 £65.68
11	HA138-2573 Available to backorder	[11.2] Flange Bushing	£3.10 £2.58
12	HA140-4964 Available to backorder	Flat Idler Pulley	£28.70 £23.92
14	HA3231-42 Available to backorder	Carriage Screw	£3.86 £3.22
15	HA3231-29 Available to backorder	Carriage Screw	£1.12 £0.93
16	HA139-6690 Available to backorder	Idler Pivot Bushing	£10.12 £8.43
17	HA3256-4 In stock	Flat Washer	£0.46 £0.38
18	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
22	HA116-4924 Available to backorder	Engine Oil Drain Hose Asm	£43.06 £35.88
22	HA353-508 Available to backorder	[22.1] Plug-Hh [O-Ring]	£8.78 £7.32
23	HA126-4360 Available to backorder	Muffler	£203.64 £169.70
25	HA116-1947 Available to backorder	Clutch	£528.00 £440.00
