Toro Z Master 122cm - 74048TE (418029516 - 420199999) Deck

Name: Toro Z Master 122cm - 74048TE (418029516 - 420199999) Deck
SKU: z_master_122cm_74048te_4182951642199999_deck-group
Price: 0.33 GBP
Availability: InStock

Part No. z_master_122cm_74048te_4182951642199999_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 122cm - 74048TE (418029516 - 420199999) Deck

Description

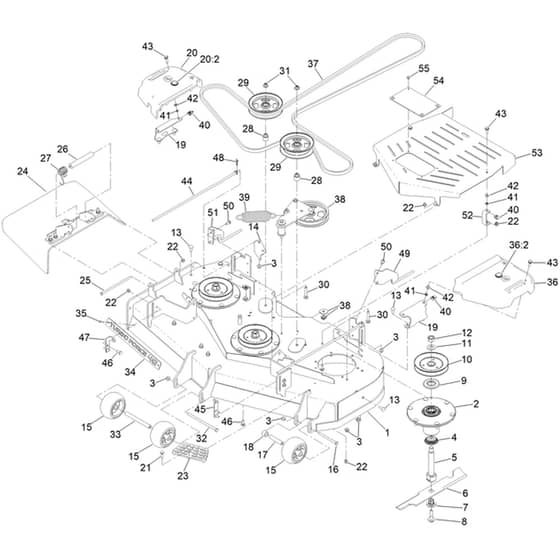

Toro Z Master 122cm - 74048TE (418029516 - 420199999) Deck Parts Diagram

	Part No.	Details
1	HA147-4995 Available to backorder	Deck Decal Asm [48. 4000. Service]	£2,047.01 £1,705.84
2	HA137-9780 Available to backorder	Spindle Assembly	£172.32 £143.60
3	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
4	HA137-9784 Available to backorder	Bottom Guard	£7.28 £6.07
5	HA138-6045 Available to backorder	Spindle Shaft	£51.97 £43.31
6	HA140-1243 Available to backorder	16.5 Inch Hi-Flow Blade	£24.00 £20.00
7	HA137-9787 Available to backorder	Hex Bushing	£12.14 £10.12
8	HA109-9220 Available to backorder	Blade Screw	£9.64 £8.03
9	HA103-1330 Available to backorder	Guard-Bearing. Top	£6.04 £5.03
10	HA138-6065 Available to backorder	Blade Drive Sheave	£25.99 £21.66
11	HA103-2802 Available to backorder	Washer	£6.97 £5.81
12	HA116-7306 Available to backorder	Hex Nut	£3.20 £2.67
13	HA3231-27 Available to backorder	Carriage Screw	£0.94 £0.78
14	HA107-8541-01 Available to backorder	Discharge Baffle	£25.99 £21.66
15	HA1-603299 Available to backorder	Titan Anti-Scalp & Wear Bar Kit	£28.45 £23.71
16	HA323-23 Available to backorder	Hex Head (Hh) Screw	£3.56 £2.97
17	HA133-2129 Available to backorder	Shafting Tube	£17.32 £14.43
18	HA133-2128 Available to backorder	Spacer Tube	£19.78 £16.48
19	HA126-9121-01 Available to backorder	Bracket-Cover. Belt	£49.92 £41.60
20	HA117-7813 Available to backorder	Rh Assembly With Asm [52	£49.51 £41.26
21	HA3230-3 Available to backorder	Screw-Carr [.312-18X1.250.Gr5.Yz]	£0.91 £0.76
22	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
23	HA126-4781-03 Available to backorder	Step-Deck	£43.26 £36.05
24	HA144-2635 Available to backorder	Rubber Deflector Assembly	£190.20 £158.50
25	HA322-50 Available to backorder	Hex Head (Hh) Screw	£5.81 £4.84
26	HA105-4622 Available to backorder	Spacer	£12.35 £10.29
27	HA108-4052 Available to backorder	Torsion Spring	£29.69 £24.74
28	HA139-8061 Available to backorder	Idler Bushing	£7.28 £6.07
29	HA132-9425 Available to backorder	Flat Idler Pulley	£53.21 £44.34
30	HA323-17 Available to backorder	Carriage Screw	£3.52 £2.93
31	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.09 £0.91
32	HA108-5388 Available to backorder	Hex Head (Hh) Screw	£18.56 £15.47
33	HA98-5967 Available to backorder	Wheel Spacer	£18.56 £15.47
35	HA130-8451 Available to backorder	Trifold Rivet	£1.22 £1.02
36	HA117-7814 Available to backorder	Lh Assembly With Asm [52	£49.51 £41.26
36	HA117-3824 Available to backorder	[36.2] Plastic Plug	£3.20 £2.67
37	HA144-0358 Available to backorder	Deck Assembly V-Belt	£185.40 £154.50
38	HA139-1087 Available to backorder	Idler Arm Assembly	£194.64 £162.20
39	HA116-6317 Available to backorder	Extension Spring	£33.41 £27.84
40	HA94-2413 Available to backorder	U Nut	£2.21 £1.84
41	HA117-2749 Available to backorder	Push Nut	£0.43 £0.36
42	HA73-0041 Available to backorder	Thrust Washer	£2.48 £2.07
43	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£3.14 £2.62
44	HA140-8027 Available to backorder	Lower Skirt Rod	£44.94 £37.45
45	HA140-8032 Available to backorder	Left Hand Support Bracket	£23.29 £19.41
46	HA3230-10 Available to backorder	Carriage Bolt	£0.85 £0.71
47	HA140-8033 Available to backorder	Right Hand Support Bracket	£23.29 £19.41
48	HA119-1415 Available to backorder	Pin-Cotter. Locking	£0.40 £0.33
49	HA140-4913 Available to backorder	Left Hand Lower Support	£242.16 £201.80
50	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
51	HA140-4914 Available to backorder	Right Hand Lower Support	£242.16 £201.80
52	HA126-9646 Available to backorder	Bracket-Guard	£43.26 £36.05
53	HA145-1266-03 Available to backorder	Guard-Center Belt 48	£215.16 £179.30
54	HA144-0420 Available to backorder	Rubber Shield	£23.29 £19.41
55	HA132-5064 Available to backorder	Pop Rivet	£0.72 £0.60
