Toro Z Master 122cm - 74048TE (414071674 - 414071689) Fuel System

Description

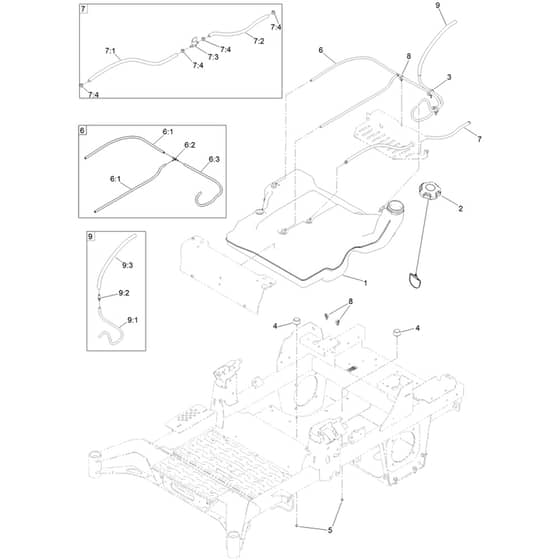

Toro Z Master 122cm - 74048TE (414071674 - 414071689) Fuel System Parts Diagram

	Part No.	Details
1	HA139-6722 Available to backorder	Fuel Tank Assembly	£382.98 £319.15
2	HA137-4119 Available to backorder	Ratcheting Fuel Cap	£32.17 £26.81
3	HA104-2490 Available to backorder	Hose Clamp	£5.44 £4.53
4	HA131-8834 Available to backorder	Bumper	£13.61 £11.34
5	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.18 £0.98
6	HA139-8067 Available to backorder	Vent Hose Assembly	£77.28 £64.40
6	HA120-2234 Available to backorder	[6.2] Tee Fitting	£4.69 £3.91
6	HA140-4956 Available to backorder	[6.3] Fuel Hose	£41.59 £34.66
7	HA139-8068 Available to backorder	Fuel Hose Assembly	£88.44 £73.70
7	HA109-0298 Available to backorder	[7.1] Fuel Hose	£18.56 £15.47
7	HA114-3766 Available to backorder	[7.2] Fuel Hose	£9.08 £7.57
7	HA1-603770 Available to backorder	[7.3] Fuel Valve	£9.64 £8.03
7	HA2412-98 Available to backorder	[7.4] Hose Clamp	£1.72 £1.43
8	HA126-5523 Available to backorder	Clip	£2.21 £1.84
9	HA140-4957 Available to backorder	Fuel Vent Assembly	£64.32 £53.60
9	HA138-3152 Available to backorder	[9.1] Hose-Fuel [3.16 X 23.00]	£14.89 £12.41
9	HA116-4630 Available to backorder	[9.2] Fitting-Orifice. Straight	£6.04 £5.03
9	HA116-4344 Available to backorder	[9.3] Fuel Hose	£14.83 £12.36
