Toro Z Master 122cm - 74048TE (410170000 - 411435567) Engine, Clutch and Muffler

Description

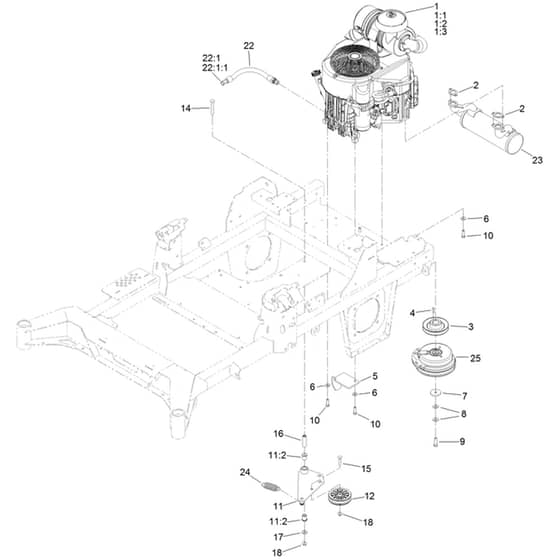

Toro Z Master 122cm - 74048TE (410170000 - 411435567) Engine, Clutch and Muffler Parts Diagram

	Part No.	Details
2	HA1-653313 Available to backorder	Gasket-Exhaust	£7.31 £6.09
3	HA139-6702 Available to backorder	Sheave. W.Hub	£35.88 £29.90
4	HA1-807259 Available to backorder	Key	£2.34 £1.95
5	HA140-1190 Available to backorder	Anchor-Clutch	£23.29 £19.41
6	HA98-5975 Available to backorder	Washer-Belleville	£5.32 £4.43
7	HA109-6919 Available to backorder	Washer-Plain	£12.29 £10.24
8	HA1-603610 Available to backorder	Washer-Spring	£5.46 £4.55
9	HA109-9761 Available to backorder	Screw-Hh	£5.44 £4.53
10	HA323-7 Available to backorder	Screw-Hh	£1.12 £0.93
11	HA144-2671 Available to backorder	Idler Arm Asm	£78.84 £65.70
11	HA138-2573 Available to backorder	[11.2] Bushing-Flange	£3.20 £2.67
12	HA116-2456 Available to backorder	Pulley-Flat Idler	£27.20 £22.67
14	HA3231-42 Available to backorder	Screw-Carr	£4.00 £3.33
15	HA3231-29 Available to backorder	Screw-Carr	£1.16 £0.97
16	HA139-6690 Available to backorder	Bushing. Idler Pivot	£10.46 £8.72
17	HA3256-4 In stock	Washer-Flat	£0.48 £0.40
18	HA104-8301 Available to backorder	Nut-Hf. Ni	£1.80 £1.50
22	HA116-4924 Available to backorder	Engine Oil Drain Hose Asm	£44.54 £37.12
22	HA353-508 Available to backorder	[22.1] Plug-Hh	£8.65 £7.21
23	HA126-4360 Available to backorder	Muffler	£213.60 £178.00
25	HA116-1947 Available to backorder	Clutch	£522.46 £435.38
