Toro Z Master 122cm - 72902TE (400000000 - 410999999) Frame, Caster and Z Stand

Description

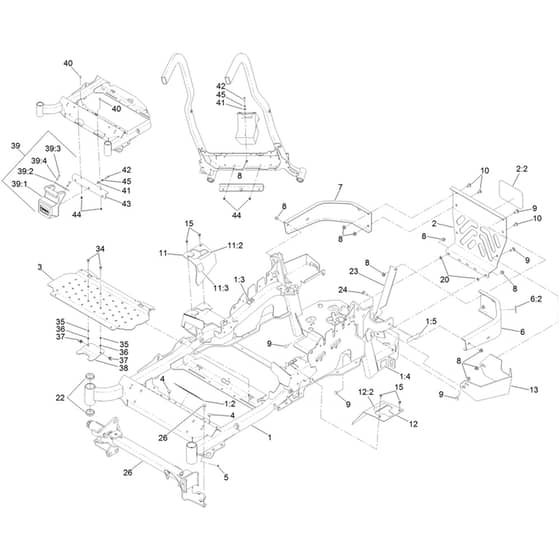

Toro Z Master 122cm - 72902TE (400000000 - 410999999) Frame, Caster and Z Stand Parts Diagram

	Part No.	Details
1	HA132-0871 Available to backorder	[1.2] Danger Decal	£14.96 £12.47
1	HA106-2655 Available to backorder	[1.4] Decal - Pinched Finger Hazard	£2.32 £1.93
1	HA133-8062 Available to backorder	[1.5] Decal - Spark Arrestor	£4.14 £3.45
2	HA115-7410 Available to backorder	Rear Guard Assembly With Decals	£284.88 £237.40
2	HA67-7320 Available to backorder	[2.2] Decal [Toro Logo. 7.57X4.96]	£53.11 £44.26
3	HA116-8898-01 Available to backorder	Floorpan	£120.84 £100.70
4	HA1-513658 Available to backorder	Bumper	£7.54 £6.28
5	HA1-811010 Available to backorder	Plug	£6.04 £5.03
6	HA116-0180 Available to backorder	Lh Bumper Asm	£210.48 £175.40
6	HA106-5517 Available to backorder	[6.2] Warning Decal	£4.32 £3.60
7	HA116-0057-03 Available to backorder	Bumper-Rh	£248.28 £206.90
8	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
9	HA3231-22 Available to backorder	Carriage Screw	£1.22 £1.02
10	HA3231-21 Available to backorder	Carriage Screw	£1.28 £1.07
11	HA116-5899 Available to backorder	Rh Motion Control Cover Asm	£49.22 £41.02
11	HA116-5988 Available to backorder	[11.3] Decal - Park Brake	£17.32 £14.43
12	HA116-0580 Available to backorder	Lh Motion Control Cover Asm	£33.41 £27.84
12	HA99-8936 Available to backorder	[12.2] Decal - Motion Control	£25.99 £21.66
13	HA117-0908-03 Available to backorder	Guard Assembly - Black	£192.60 £160.50
15	HA32144-10 Available to backorder	Hex Washer Head (Hwh) Screw	£5.29 £4.41
20	HA107-3154 Available to backorder	Push Nut	£1.22 £1.02
22	HA1-543508 Available to backorder	Bearing Cup	£9.02 £7.52
23	HA127-0324-03 Available to backorder	Strap	£41.59 £34.66
34	HA323-44 Available to backorder	Hex Head Flange (Hhf) Screw	£4.57 £3.81
35	HA3256-60 Available to backorder	Washer-Flat[.266X.500.Stl.Yz..030 Thk]	£2.54 £2.12
36	HA32115-15 Available to backorder	Retainer Nut	£1.18 £0.98
37	HA107069 Available to backorder	Clip	£2.21 £1.84
38	HA119-0395-03 Available to backorder	Captive Adapter	£27.20 £22.67
39	HA120-7885 Available to backorder	Weight Assembly	£824.82 £687.35
39	HA120-7881 Available to backorder	[39.1] Weight	£798.17 £665.14
39	HA115-3616-01 Available to backorder	[39.2] Weight Support Tab	£37.12 £30.93
39	HA323-4 Available to backorder	[39.3] Hex Head (Hh) Screw	£1.74 £1.45
40	HA3230-23 Available to backorder	Carriage Screw	£1.09 £0.91
41	HA3256-4 In stock	Flat Washer	£0.48 £0.40
42	HA323-6 Available to backorder	Hex Head (Hh) Screw	£1.14 £0.95
43	HA115-3615-01 Available to backorder	Weight Mount Bracket	£55.68 £46.40
44	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
45	HA3253-5 Available to backorder	Lock Washer	£0.48 £0.40
