Toro Z Master 122cm - 72902TE (400000000 - 410999999) Deck

Name: Toro Z Master 122cm - 72902TE (400000000 - 410999999) Deck
SKU: z_master_122cm_72902te_441999999_deck-group
Price: 0.35 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 122cm - 72902TE (400000000 - 410999999) Deck

Description

Toro Z Master 122cm - 72902TE (400000000 - 410999999) Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA140-1167 Available to backorder	Deck Decal Asm	£2,293.20 £1,911.00
2	HA115-7407 Available to backorder	Z-Master Deck Assembly V-Belt	£178.08 £148.40
3	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
4	HA138-6065 Available to backorder	Blade Drive Sheave	£25.12 £20.93
5	HA117-7814 Available to backorder	Lh Assembly With Asm [52	£47.86 £39.88
7	HA137-9780 Available to backorder	Spindle Assembly	£165.36 £137.80
8	HA114-5881-01 Available to backorder	Sm Belt Cover Bracket - Red	£92.12 £76.77
9	HA121-7975-01 Available to backorder	Skid Plate	£67.00 £55.83
10	HA3231-27 Available to backorder	Carriage Screw	£0.90 £0.75
11	HA3290-357 Available to backorder	Whiz Hex Head Flange (Hhf) Nut	£1.02 £0.85
12	HA108-5387 Available to backorder	Carriage Screw	£3.82 £3.18
13	HA323-23 Available to backorder	Hex Head (Hh) Screw	£3.44 £2.87
14	HA140-1243 Available to backorder	16.5 Inch Hi-Flow Blade	£23.20 £19.33
15	HA137-9787 Available to backorder	Hex Bushing	£11.74 £9.78
16	HA109-9220 Available to backorder	Blade Screw	£9.08 £7.57
17	HA114-5862-01 Available to backorder	Baffle	£265.44 £221.20
18	HA138-6052-01 Available to backorder	Plate-Baffle. Formed	£132.84 £110.70
19	HA98-7912 In stock	Spanner Tube	£20.24 £16.87
20	HA1-603299 Available to backorder	Titan Anti-Scalp & Wear Bar Kit	£26.30 £21.92
21	HA98-7913 Available to backorder	Spacer Tube	£11.28 £9.40
22	HA3231-40 Available to backorder	Carriage Bolt	£2.14 £1.78
23	HA108-5388 Available to backorder	Hex Head (Hh) Screw	£17.94 £14.95
24	HA98-5967 Available to backorder	Wheel Spacer	£17.94 £14.95
25	HA107-8541-01 Available to backorder	Discharge Baffle	£25.12 £20.93
26	HA322-50 Available to backorder	Hex Head (Hh) Screw	£5.62 £4.68
27	HA108-2792 Available to backorder	Rubber Deflector Assembly	£244.56 £203.80
28	HA108-4052 Available to backorder	Torsion Spring	£28.70 £23.92
29	HA105-4622 Available to backorder	Spacer	£11.94 £9.95
30	HA3296-47 Available to backorder	Lock Nut	£4.30 £3.58
31	HA109-1092 Available to backorder	Knob	£8.96 £7.47
32	HA114-5867 Available to backorder	Tall Spring Anchor	£16.74 £13.95
33	HA116-6317 Available to backorder	Extension Spring	£32.30 £26.92
34	HA109-2872 Available to backorder	Pulley Spacer	£25.12 £20.93

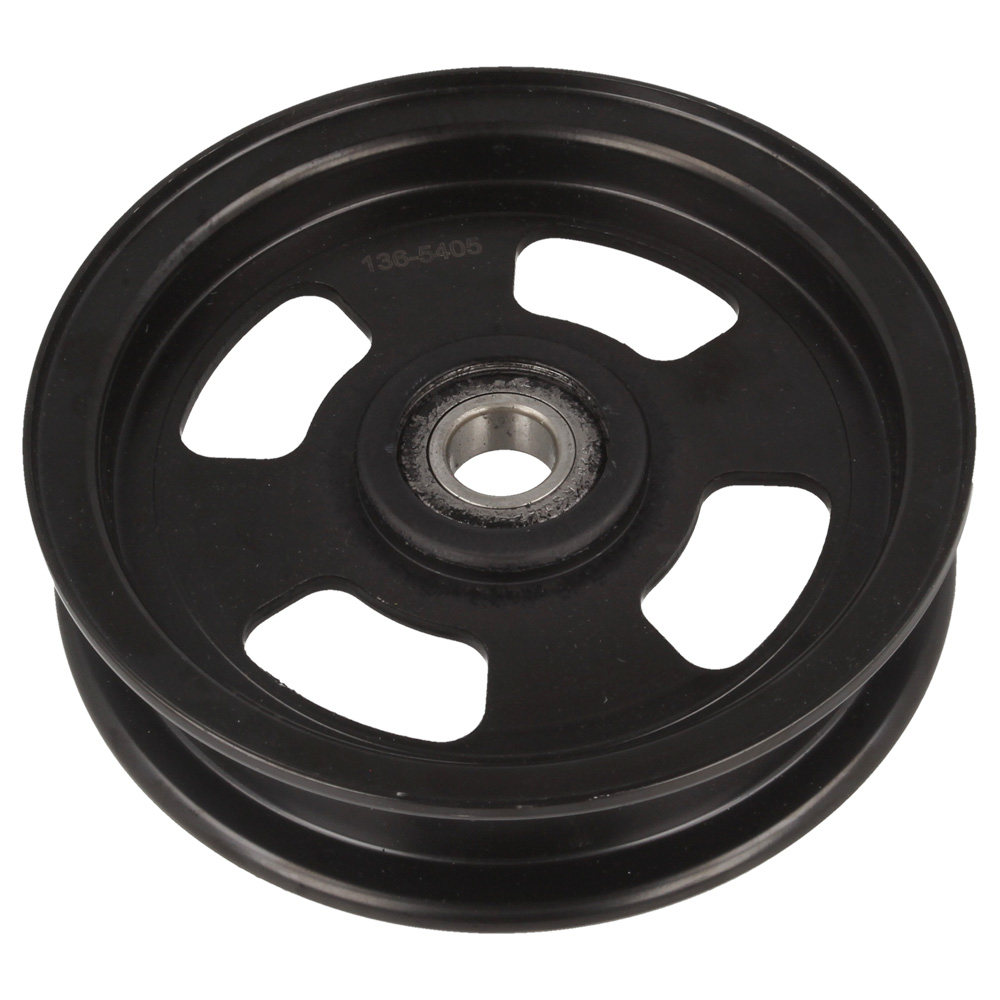

35	HA136-5405 Available to backorder	Flat Idler Pulley	£53.82 £44.85
36	HA117-7813 Available to backorder	Rh Assembly With Asm [52	£47.86 £39.88
36	HA117-3824 Available to backorder	[36.2] Plastic Plug	£3.10 £2.58
37	HA136-5404 Available to backorder	Flat Idler Pulley	£69.38 £57.82
38	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.06 £0.88
39	HA95-1726 In stock	Screw-Hwh Thd Form	£2.14 £1.78
40	HA94-2413 Available to backorder	U Nut	£2.14 £1.78
41	HA117-2749 Available to backorder	Push Nut	£0.42 £0.35
42	HA73-0041 Available to backorder	Thrust Washer	£2.40 £2.00
43	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£3.04 £2.53
44	HA131-3987 Available to backorder	Upper Support Rod	£45.04 £37.53
45	HA131-4191 Available to backorder	Right Hand (Rh) Lower Support Rod	£58.62 £48.85
46	HA131-4192 Available to backorder	Left Hand (Lh) Lower Support Rod	£58.62 £48.85
47	HA131-7652 Available to backorder	Side Guard	£31.10 £25.92
48	HA131-4194-03 Available to backorder	Upper Mounting Bracket - Black	£41.82 £34.85
49	HA131-3979-03 Available to backorder	Front Deck Shield	£118.92 £99.10
50	HA131-4195-03 Available to backorder	Bracket Assembly With Black	£48.26 £40.22
51	HA131-4196-03 Available to backorder	Bracket Assembly - Rear (Lh	£64.36 £53.63
52	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
53	HA32144-10 Available to backorder	Hex Washer Head (Hwh) Screw	£5.12 £4.27
54	HA3230-23 Available to backorder	Carriage Screw	£1.06 £0.88
55	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.64 £0.53
56	HA132-0920-03 Available to backorder	Rh Rear Mounting Bracket - Black	£56.30 £46.92
57	HA126-4781-03 Available to backorder	Step-Deck	£41.82 £34.85
58	HA3230-3 Available to backorder	Screw-Carr [.312-18X1.250.Gr5.Yz]	£0.88 £0.73
59	HA138-6045 Available to backorder	Spindle Shaft	£50.24 £41.87
60	HA137-9784 Available to backorder	Bottom Guard	£7.04 £5.87
61	HA103-1330 Available to backorder	Guard-Bearing. Top	£5.84 £4.87
62	HA103-2802 Available to backorder	Washer	£6.74 £5.62
63	HA116-7306 Available to backorder	Hex Nut	£3.10 £2.58
65	HA100-4852 Available to backorder	Washer-Hardened	£7.66 £6.38
66	HA94-7582 Available to backorder	Shoulder Bolt	£3.70 £3.08
