Toro Z Master 122cm - 72902TE (412200000 - 999999999) Deck

Description

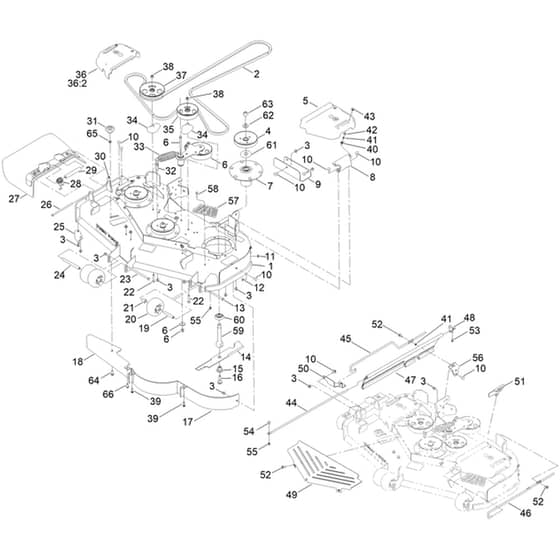

Toro Z Master 122cm - 72902TE (412200000 - 999999999) Deck Parts Diagram

	Part No.	Details
1	HA140-1167 Available to backorder	Deck Decal Asm	£2,338.93 £1,949.11
2	HA115-7407 Available to backorder	Z-Master Deck Assembly V-Belt	£185.40 £154.50
3	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
4	HA138-6065 Available to backorder	Blade Drive Sheave	£25.99 £21.66
5	HA117-7814 Available to backorder	Lh Assembly With Asm [52	£49.51 £41.26
7	HA137-9780 Available to backorder	Spindle Assembly	£172.32 £143.60
8	HA114-5881-01 Available to backorder	Sm Belt Cover Bracket - Red	£92.16 £76.80
9	HA121-7975-01 Available to backorder	Skid Plate	£66.96 £55.80
10	HA3231-27 Available to backorder	Carriage Screw	£0.94 £0.78
11	HA3290-357 Available to backorder	Whiz Hex Head Flange (Hhf) Nut	£1.06 £0.88
12	HA108-5387 Available to backorder	Carriage Screw	£3.95 £3.29
13	HA323-23 Available to backorder	Hex Head (Hh) Screw	£3.56 £2.97
14	HA140-1243 Available to backorder	16.5 Inch Hi-Flow Blade	£24.00 £20.00
15	HA137-9787 Available to backorder	Hex Bushing	£12.14 £10.12
16	HA109-9220 Available to backorder	Blade Screw	£9.64 £8.03
17	HA114-5862-01 Available to backorder	Baffle	£278.52 £232.10
18	HA138-6052-01 Available to backorder	Plate-Baffle. Formed	£138.36 £115.30
19	HA98-7912 In stock	Spanner Tube	£20.94 £17.45
20	HA1-603299 Available to backorder	Titan Anti-Scalp & Wear Bar Kit	£28.45 £23.71
21	HA98-7913 Available to backorder	Spacer Tube	£11.66 £9.72
22	HA3231-40 Available to backorder	Carriage Bolt	£2.21 £1.84
23	HA108-5388 Available to backorder	Hex Head (Hh) Screw	£18.56 £15.47
24	HA98-5967 Available to backorder	Wheel Spacer	£18.56 £15.47
25	HA107-8541-01 Available to backorder	Discharge Baffle	£25.99 £21.66
26	HA322-50 Available to backorder	Hex Head (Hh) Screw	£5.81 £4.84
27	HA108-2792 Available to backorder	Rubber Deflector Assembly	£256.56 £213.80
28	HA108-4052 Available to backorder	Torsion Spring	£29.69 £24.74
29	HA105-4622 Available to backorder	Spacer	£12.35 £10.29
30	HA3296-47 Available to backorder	Lock Nut	£4.45 £3.71
31	HA109-1092 Available to backorder	Knob	£9.26 £7.72
32	HA114-5867 Available to backorder	Tall Spring Anchor	£17.32 £14.43
33	HA116-6317 Available to backorder	Extension Spring	£33.41 £27.84
34	HA109-2872 Available to backorder	Pulley Spacer	£25.99 £21.66
35	HA136-5405 Available to backorder	Flat Idler Pulley	£55.68 £46.40
36	HA117-7813 Available to backorder	Rh Assembly With Asm [52	£49.51 £41.26
36	HA117-3824 Available to backorder	[36.2] Plastic Plug	£3.20 £2.67
37	HA136-5404 Available to backorder	Flat Idler Pulley	£69.36 £57.80
38	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.09 £0.91
39	HA95-1726 In stock	Screw-Hwh Thd Form	£2.21 £1.84
40	HA94-2413 Available to backorder	U Nut	£2.21 £1.84
41	HA117-2749 Available to backorder	Push Nut	£0.43 £0.36
42	HA73-0041 Available to backorder	Thrust Washer	£2.48 £2.07
43	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£3.14 £2.62
44	HA131-3987 Available to backorder	Upper Support Rod	£46.60 £38.83
45	HA131-4191 Available to backorder	Right Hand (Rh) Lower Support Rod	£60.64 £50.53
46	HA131-4192 Available to backorder	Left Hand (Lh) Lower Support Rod	£60.64 £50.53
47	HA131-7652 Available to backorder	Side Guard	£32.17 £26.81
48	HA131-4194-03 Available to backorder	Upper Mounting Bracket - Black	£43.26 £36.05
49	HA131-3979-03 Available to backorder	Front Deck Shield	£123.84 £103.20
50	HA131-4195-03 Available to backorder	Bracket Assembly With Black	£49.92 £41.60
51	HA131-4196-03 Available to backorder	Bracket Assembly - Rear (Lh	£64.32 £53.60
52	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
53	HA32144-10 Available to backorder	Hex Washer Head (Hwh) Screw	£5.29 £4.41
54	HA3230-23 Available to backorder	Carriage Screw	£1.09 £0.91
55	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
56	HA132-0920-03 Available to backorder	Rh Rear Mounting Bracket - Black	£58.24 £48.53
57	HA126-4781-03 Available to backorder	Step-Deck	£43.26 £36.05
58	HA3230-3 Available to backorder	Screw-Carr [.312-18X1.250.Gr5.Yz]	£0.91 £0.76
59	HA138-6045 Available to backorder	Spindle Shaft	£51.97 £43.31
60	HA137-9784 Available to backorder	Bottom Guard	£7.28 £6.07
61	HA103-1330 Available to backorder	Guard-Bearing. Top	£6.04 £5.03
62	HA103-2802 Available to backorder	Washer	£6.97 £5.81
63	HA116-7306 Available to backorder	Hex Nut	£3.20 £2.67
65	HA100-4852 Available to backorder	Washer-Hardened	£7.92 £6.60
66	HA94-7582 Available to backorder	Shoulder Bolt	£3.83 £3.19
