Toro Z Master 122cm - 72902TE (411000000 - 412199999) Seat Mounting

Description

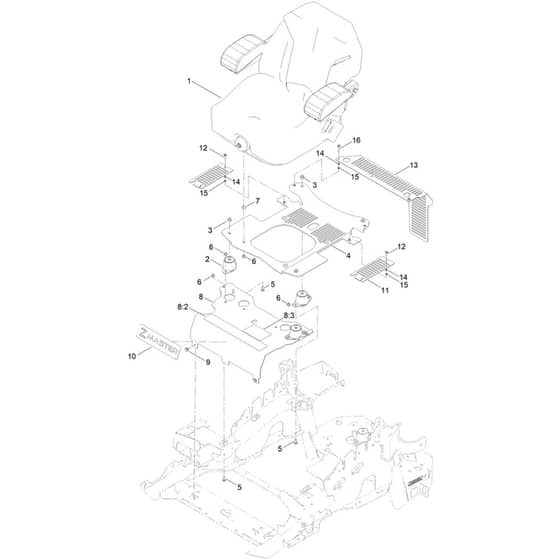

Toro Z Master 122cm - 72902TE (411000000 - 412199999) Seat Mounting Parts Diagram

	Part No.	Details
1	HA140-8003 Available to backorder	Suspension Seat (Service)	£973.10 £810.92
2	HA109-9034 Available to backorder	Isolator-Seat	£78.96 £65.80
3	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
4	HA117-0910 Available to backorder	Seat Base Asm Assembly With Iso	£357.96 £298.30
5	HA3230-23 Available to backorder	Carriage Screw	£1.09 £0.91
6	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
7	HA26-4840 Available to backorder	Spacer-Pin. Mounting	£1.51 £1.26
8	HA116-2324 Available to backorder	Mount-Seat	£353.32 £294.43
8	HA114-4468 Available to backorder	[8.2] Console Decal	£61.86 £51.55
8	HA125-9383 Available to backorder	[8.3] Decal - Service Aid	£34.94 £29.12
9	HA9266934 Available to backorder	Screw	£9.77 £8.14
10	HA140-1215 Available to backorder	Console Decal	£11.14 £9.28
11	HA117-0901-03 Available to backorder	Assembly - Black	£37.12 £30.93
12	HA32105-15 Available to backorder	Hex Washer Head (Hwh) Screw	£2.21 £1.84
13	HA119-4241-03 Available to backorder	Ce Guard - Black	£304.32 £253.60
14	HA3256-60 Available to backorder	Washer-Flat[.266X.500.Stl.Yz..030 Thk]	£2.54 £2.12
15	HA32115-15 Available to backorder	Push Nut	£1.18 £0.98
16	HA3234-21 Available to backorder	Hex Head Flange (Hhf) Screw	£2.71 £2.26
