Toro Z Master 122cm - 72902TE (411000000 - 412199999) Park Brake

Name: Toro Z Master 122cm - 72902TE (411000000 - 412199999) Park Brake
SKU: z_master_122cm_72902te_411412199999_park_brake-group
Price: 0.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 122cm - 72902TE (411000000 - 412199999) Park Brake

Description

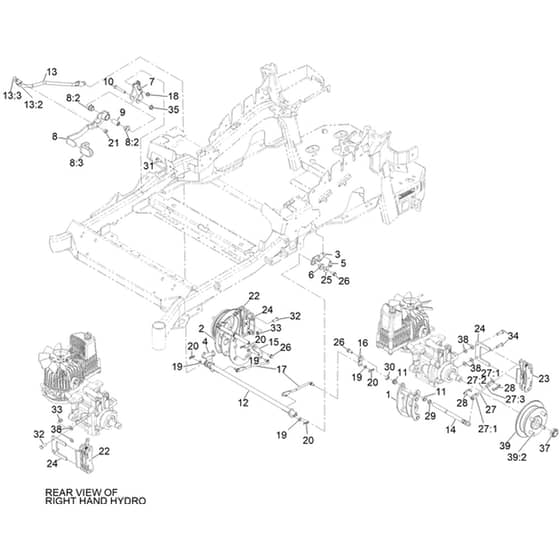

Toro Z Master 122cm - 72902TE (411000000 - 412199999) Park Brake Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA126-4248 Available to backorder	MOUNT-BELLCRANK, LH	£41.86 £34.88
2	HA126-4249 Available to backorder	Mount-Bellcrank. Rh	£43.06 £35.88
3	HA116-9681 Available to backorder	Mount-Pivot. Lh	£4.78 £3.98
4	HA116-9682 Available to backorder	Mount-Pivot. Rh	£4.78 £3.98
5	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
7	HA116-9096-01 Available to backorder	Bracket-Mount	£31.10 £25.92
8	HA135-7565 Available to backorder	Brake Lever Asm	£67.56 £56.30
8	HA109-8054 Available to backorder	[8.2] Flange Bushing	£5.38 £4.48
8	HA132-4749 Available to backorder	[8.3] Lever Grip	£5.84 £4.87
9	HA116-9117 Available to backorder	Pivot-Handle. Brake	£3.10 £2.58
10	HA323-11 In stock	Hex Head (Hh) Screw	Was £2.33 £1.94 Special Price £1.54 £1.28
11	HA126-6199 Available to backorder	Bushing	£8.48 £7.07
12	HA135-7800 Available to backorder	Shaft-Cross	£94.92 £79.10
13	HA135-7805 Available to backorder	Asm. Front Linkage	£77.76 £64.80
13	HA94-7572 Available to backorder	[13.2] Right Hand Tie Rod End	£38.26 £31.88
13	HA3220-3 In stock	[13.3] Hj Nut	Was £0.53 £0.44 Special Price £0.29 £0.24
14	HA126-4251 Available to backorder	Bellcrank	£29.78 £24.82
15	HA126-3716 Available to backorder	Right Hand Inner Arm	£6.34 £5.28
16	HA126-3715 Available to backorder	Left Hand Inner Arm	£6.34 £5.28
17	HA142-6327 Available to backorder	Mid-Link. Long	£48.26 £40.22
18	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
19	HA3256-23 Available to backorder	Plain Washer	£0.53 £0.44
20	HA119-1415 Available to backorder	Pin-Cotter. Locking	£0.41 £0.34
21	HA3296-6 Available to backorder	Lock Nut	£1.78 £1.48
22	HA135-7440 Available to backorder	Caliper-Brake. Rh	£139.96 £116.63
23	HA135-7441 Available to backorder	Caliper-Brake. Lh	£139.96 £116.63
24	HA135-7828 Available to backorder	Plate-Mount. Brake	£13.16 £10.97
25	HA115-7109 Available to backorder	Washer-Flat [1.062 X .328]	£1.44 £1.20
26	HA98-9940 Available to backorder	Hex Head Flange (Hhf) Screw	£2.66 £2.22
27	HA126-7587 Available to backorder	[27.2] Linkage. Rear	£25.12 £20.93
27	HA3220-1 Available to backorder	[27.3] Jam Nut	£1.42 £1.18
28	HA126-6395 Available to backorder	Pin-Clevis. Spring	£9.20 £7.67
29	HA126-6200 Available to backorder	Spacer	£3.10 £2.58
30	HA32120-19 Available to backorder	0.625 Inch X 0.042 Inch E-Ring	£2.72 £2.27
31	HA3230-2 Available to backorder	Carriage Bolt	£0.86 £0.72
32	HA135-7915 Available to backorder	Screw-Hh.	£1.27 £1.06
33	HA112-0236 Available to backorder	Lock Nut	£0.86 £0.72
34	HA135-7890 Available to backorder	Screw-Hh. Patch	£1.54 £1.28
35	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
37	HA116-1399 Available to backorder	Lock Nut	£16.74 £13.95
38	HA3256-24 Available to backorder	Flat Washer	£0.53 £0.44
39	HA142-2701 Available to backorder	Wheel Hub Asm	£165.70 £138.08
39	HA116-1696 Available to backorder	[39.2] Wheel Stud	£4.18 £3.48
