Toro Z Master 122cm - 72902TE (411000000 - 412199999) Deck Lift

Part No. z_master_122cm_72902te_411412199999_deck_lift-group
Toro Z Master 122cm - 72902TE (411000000 - 412199999) Deck Lift
Toro Z Master 122cm - 72902TE (411000000 - 412199999) Deck Lift

Description

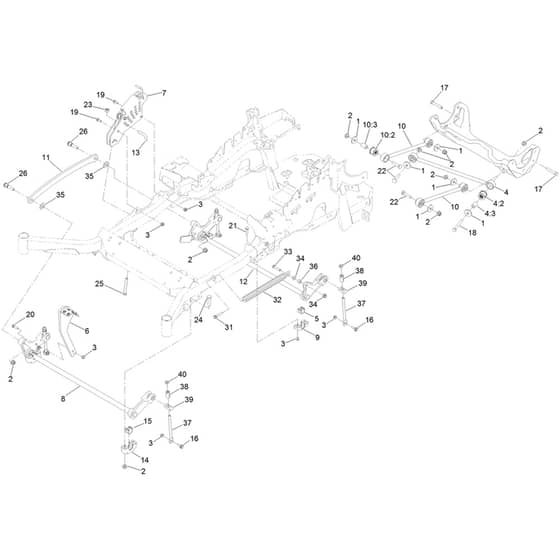

Toro Z Master 122cm - 72902TE (411000000 - 412199999) Deck Lift Parts Diagram

Ref. Img. Part No. Details
  1 Washer[1.2 X 1-3.4. 11 Ga. Stl. Cz]
Washer[1.2 X 1-3.4. 11 Ga. Stl. Cz]
HA86-1990
Available to backorder
Washer[1.2 X 1-3.4. 11 Ga. Stl. Cz]
£3.11 £2.59

  2 Lock Nut
Lock Nut
HA99-5107
Available to backorder
Lock Nut
£3.04 £2.53

  3 Hex Flange (Hf) Nut
Hex Flange (Hf) Nut
HA104-8301
Available to backorder
Hex Flange (Hf) Nut
£1.80 £1.50

  4 Panhard Rod Asm
Panhard Rod Asm
HA109-5013
Available to backorder
Panhard Rod Asm
£162.72 £135.60

  5 Bearing-Cross Shaft. Rear
Bearing-Cross Shaft. Rear
HA109-7173
Available to backorder
Bearing-Cross Shaft. Rear
£4.08 £3.40

  6 Foot Lever
Foot Lever
HA116-1919-01
Available to backorder
Foot Lever
£113.64 £94.70

  8 Decklift-Front
Decklift-Front
HA126-2477-03
Available to backorder
Decklift-Front
£358.32 £298.60

  9 Rear Cross Shaft Bearing Support
Rear Cross Shaft Bearing Support
HA127-0553
Available to backorder
Rear Cross Shaft Bearing Support
£17.32 £14.43

  10 Deck Strut Asm
Deck Strut Asm
HA109-7952
Available to backorder
Deck Strut Asm
£166.32 £138.60

  10 [10.2] Bushing-Suspension. Rubber
[10.2] Bushing-Suspension. Rubber
HA109-5009
Available to backorder
[10.2] Bushing-Suspension. Rubber
£5.06 £4.22

  10 [10.3] Spacer
[10.3] Spacer
HA109-5010
Available to backorder
[10.3] Spacer
£19.97 £16.64

  11 Link-Lift. Deck
Link-Lift. Deck
HA116-0797-03
Available to backorder
Link-Lift. Deck
£151.92 £126.60

  12 Lift-Deck. Rear
Lift-Deck. Rear
HA116-2645-03
Available to backorder
Lift-Deck. Rear
£331.64 £276.37

  13 Pin-Hoc
Pin-Hoc
HA116-5584
Available to backorder
Pin-Hoc
£5.81 £4.84

  14 Support-Bearing. Cross Shaft (Front)
Support-Bearing. Cross Shaft (Front)
HA109-9409
Available to backorder
Support-Bearing. Cross Shaft (Front)
£17.32 £14.43

  15 Bearing-Cross Shaft. Front
Bearing-Cross Shaft. Front
HA109-9410
Available to backorder
Bearing-Cross Shaft. Front
£4.08 £3.40

  16 Hex Head Flange (Hhf) Shoulder Screw
Hex Head Flange (Hhf) Shoulder Screw
HA109-9840
Available to backorder
Hex Head Flange (Hhf) Shoulder Screw
£5.20 £4.33

  17 Hex Head (Hh) Screw
Hex Head (Hh) Screw
HA325-12
Available to backorder
Hex Head (Hh) Screw
£3.89 £3.24

  18 Hex Head (Hh) Screw
Hex Head (Hh) Screw
HA325-17
Available to backorder
Hex Head (Hh) Screw
£4.94 £4.12

  19 Carriage Bolt
Carriage Bolt
HA323-12
Available to backorder
Carriage Bolt
£1.94 £1.62

  20 Carriage Screw
Carriage Screw
HA323-14
Available to backorder
Carriage Screw
£2.29 £1.91

  21 Carriage Screw
Carriage Screw
HA323-17
Available to backorder
Carriage Screw
£3.52 £2.93

  40 Jam Nut
Jam Nut
HA3218-5
Available to backorder
Jam Nut
£0.48 £0.40


Description

Toro Z Master 122cm - 72902TE (411000000 - 412199999) Deck Lift Parts Diagram
