Castel Garden XX 220 HD - 2016-2022 - 2T1320673 C16

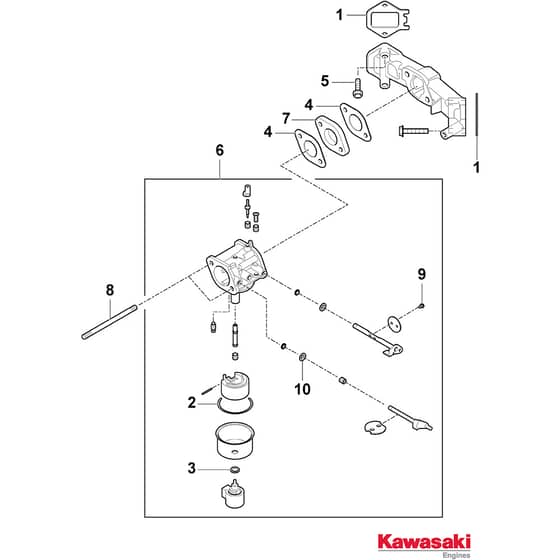

XX 220 HD - 2016-2022 - 2T1320673/C16 - Castel Garden Ride On Mower Carburettor Diagram

XX 220 HD - 2016-2022 - 2T1320673/C16 - Castel Garden Ride On Mower Carburettor Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XX 220 HD - 2016-2022 - 2T1320673/C16 - Castel Garden Ride On Mower Carburettor Diagram

XX 220 HD - 2016-2022 - 2T1320673/C16 - Castel Garden Ride On Mower Carburettor Diagram

Description

Castel Garden XX 220 HD Parts Diagram

Product Name - XX 220 HD

Model Year - 2016-2022

Model Type - TX 122 Hydro

Art.N - 2T1320673/C16

Engine Model - FS600V

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		KA11061-0877 Available to backorder	Gasket		£2.76 £2.30
	2		KA11061-7009 In stock	Gasket Kawasaki p.n 11061-7009		£2.60 £2.17
	4		KA11061-7096 In stock	Gasket Kawasaki p.n 11061-7096		£5.70 £4.75
	5		MO112735405/0 Available to backorder	Screw Kawasaki p.n 130AA0625		£1.55 £1.29
	6		KA15004-0827 Available to backorder	Carburetor Kawasaki p.n 15004-0827		£435.36 £362.80
	7		KA16073-0876 Available to backorder	Insulator Kawasaki p.n 16073-7007		£7.32 £6.10
	8		KA92004-2149 Available to backorder	Pin Kawasaki p.n 92004-2149		£2.94 £2.45

Description

Castel Garden XX 220 HD Parts Diagram

Product Name - XX 220 HD

Model Year - 2016-2022

Model Type - TX 122 Hydro

Art.N - 2T1320673/C16

Engine Model - FS600V
