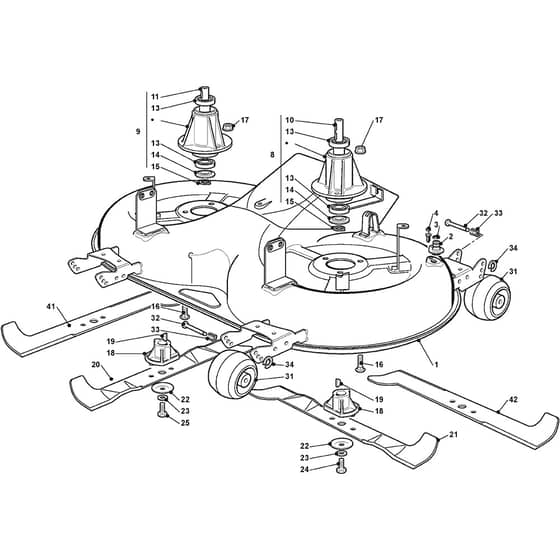

XX 220 HD - 2011-2015 - 2T1310273/11 - Castel Garden Ride On Mower Cutting Plate Diagram

Description

Castel Garden XX 220 HD Parts Diagram

Product Name - XX 220 HD

Model Year - 2011-2015

Model Type - TX 122 Hydro

Art.N - 2T1310273/11

Engine Model - Intek V-Twin series 7220

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382564213/1 Available to backorder	Cutting Plate Grey	£985.82 £821.52
2	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.49 £1.24
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO112500030/0 In stock	Rivet	£1.49 £1.24
8	MO382207200/2LC Available to backorder	Main Blade Shaft Ass.Y	£101.35 £84.46
9	MO382207201/3LC Available to backorder	Secondary Blade Shaft Ass.Y	£91.51 £76.26
10	MO125020800/1 Available to backorder	Main Blade Shaft	£46.46 £38.72
11	MO125020801/2 Available to backorder	Secondary Blade Shaft	£42.23 £35.19
13	MO119216047/0 In stock	Bearing	£15.78 £13.15
14	MO325160501/1 Available to backorder	Dust Cover Disc	£1.49 £1.24
15	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
16	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
17	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
18	MO125463200/0 In stock	Blade Holder	£9.08 £7.57
19	MO112139100/0 In stock	Key	£1.55 £1.29
20	MO182004350/0 Available to backorder	Right Mulching Blade	£44.45 £37.04
21	MO182004349/0 Available to backorder	Left Mulching Blade	£44.45 £37.04
22	MO122160400/0 In stock	Elastic Disc To 31-8-2015	£1.82 £1.52
22	MO125160503/0 In stock	Blade Hub Elastic Disc Lawntr. From 01-9-2015	£3.50 £2.92
23	MO112523080/0 In stock	Washer To 31-8-2015	£1.55 £1.29
24	MO112735694/0 In stock	Screw To 31-8-2015	£1.97 £1.64
24	MO112735696/0 In stock	Screw From 01-9-2015	£2.65 £2.21
25	MO112735697/1 In stock	Screw From 01-9-2015	£2.12 £1.77
25	MO112735695/1 In stock	Screw To 31-8-2015	£3.79 £3.16
31	MO182700004/0 Available to backorder	Anti Scalp Wheel	£18.86 £15.72
32	MO125510121/1 Available to backorder	Pin	£9.22 £7.68
33	MO122450115/0 Available to backorder	Spring	£1.94 £1.62
34	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
41	MO182004343/0 In stock	Right Blade. Winged	£45.79 £38.16
42	MO182004342/0 In stock	Left Blade 122cm	£45.79 £38.16
