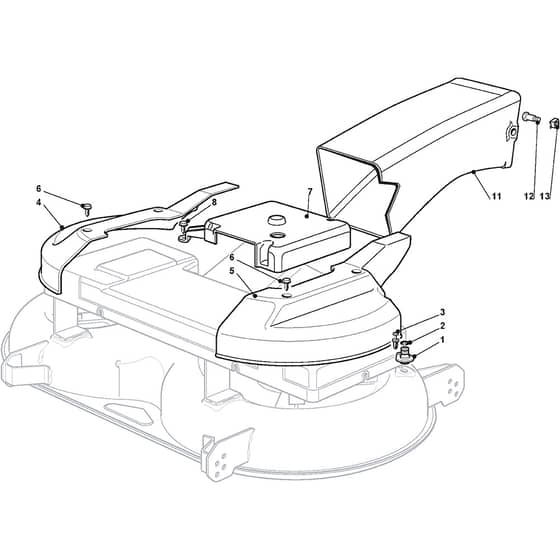

XX 220 HD - 2008 - 299942176/08T - Castel Garden Ride On Mower Guards Diagram

Name: XX 220 HD - 2008 - 299942176/08T - Castel Garden Ride On Mower Guards Diagram
SKU: xx_220_hd_299942176_08t_guards-group
Price: 1.29 GBP
Availability: InStock

Part No. xx_220_hd_299942176_08t_guards-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XX 220 HD - 2008 - 299942176/08T - Castel Garden Ride On Mower Guards Diagram

Description

Castel Garden XX 220 HD Parts Diagram

Product Name - XX 220 HD

Model Year - 2008

Model Type - TX 122 Hydro

Art.N - 299942176/08T

Engine Model - B&S 22 HP

	Part No.	Details
1	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.55 £1.29
2	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
3	MO112500030/0 In stock	Rivet	£1.55 £1.29
4	MO325060113/0 Available to backorder	Right Belt Protection Carter	£18.48 £15.40
5	MO325060114/0 Available to backorder	Left Belt Protection	£18.48 £15.40
7	MO125600050/0 Available to backorder	Protection	£7.74 £6.45
8	MO112735403/0 In stock	Screw	£1.55 £1.29
11	MO325108009/1 Available to backorder	Rear Conveyor Assy From 01-9-2006	£71.80 £59.83
12	MO125510051/1 Available to backorder	Pin	£4.19 £3.49
13	MO112360425/0 Available to backorder	Square Nut M8	£1.92 £1.60
