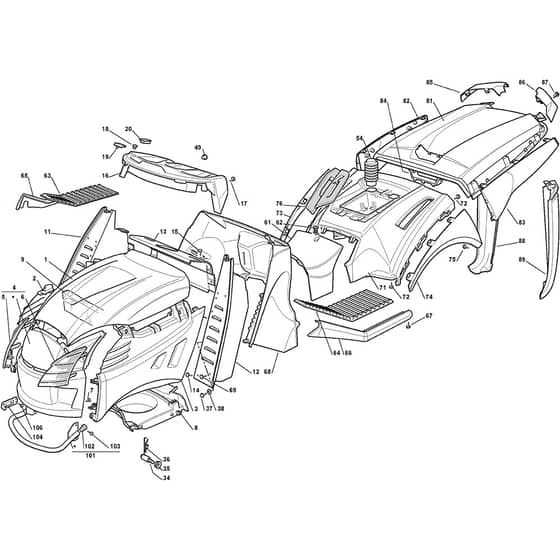

XX 220 HD - 2007 - 299942276/TE7 - Castel Garden Ride On Mower Body Diagram

Description

Castel Garden XX 220 HD Parts Diagram

Product Name - XX 220 HD

Model Year - 2007

Model Type - TX 122 Hydro

Art.N - 299942276/TE7

Engine Model -

	Part No.	Details
1	MO325076858/0 Available to backorder	Red Upper Bonnet	£108.40 £90.33
2	MO325207120/1 Available to backorder	Hood. Right	£40.75 £33.96
3	MO325207121/1 Available to backorder	Hood. Left	£45.54 £37.95
4	MO382394647/0 Available to backorder	Hood. Front	£88.69 £73.91
5	MO325410874/0 Available to backorder	Right Light Grill	£41.26 £34.38
6	MO325410875/0 Available to backorder	Left Light Plastic Cover	£41.26 £34.38
7	MO112735405/0 Available to backorder	Screw	£1.55 £1.29
8	MO325108025/0 Available to backorder	Conveyor	£39.42 £32.85
9	MO125730016/0 Available to backorder	Intake Separator	£14.94 £12.45
11	MO382785022/10 Available to backorder	Right Dashboard Support From 01-9-2011	£43.02 £35.85
11	MO382785022/8 Available to backorder	Right Dashboard Support To 31-8-2011	£29.57 £24.64
12	MO382785021/7 Available to backorder	Left Dashboard Support To 31-8-2011	£29.57 £24.64
12	MO382785021/9 Available to backorder	Left Dashboard Support From 01-9-2011	£43.02 £35.85
13	MO382785137/1 Available to backorder	Central Dashboard Support From 01-9-2003	£13.42 £11.18
15	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
17	MO112728440/0 Available to backorder	Screw	£1.39 £1.16
18	MO125120200/0 Available to backorder	Cap	£1.39 £1.16
19	MO125260000/0 Available to backorder	Grommet	£2.94 £2.45
34	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
35	MO112293201/0 In stock	Nut	£1.70 £1.42
36	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
37	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
38	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
49	MO325120233/0 Available to backorder	Cap Starter Control Hole Closing Cap	£3.25 £2.71
54	MO325737002/0 Available to backorder	Hood	£17.09 £14.24
61	MO325110306/0 Available to backorder	Cover (Hydro)	£33.49 £27.91
62	MO125580020/2 In stock	Stake From 01-9-2010	£8.29 £6.91
63	MO325110278/1 Available to backorder	Right Footboard Cover	£30.98 £25.82
64	MO325110279/0 Available to backorder	Left Footboard Cover	£30.98 £25.82
65	MO325599000/0 Available to backorder	Right Profile Grey	£15.49 £12.91
66	MO325599001/0 Available to backorder	Left Profil	£15.68 £13.07
68	MO325785228/1 Available to backorder	Dashboard Support	£71.81 £59.84
71	MO325109744/0 Available to backorder	Red Wheels Cover	£130.91 £109.09
72	MO112735402/0 In stock	Screw	£1.55 £1.29
75	MO112728686/0 In stock	Screw	£1.55 £1.29
76	MO325207129/1 Available to backorder	Cover. Can Holder	£25.04 £20.87
81	MO325110302/0 Available to backorder	Red Grass-Catcher Cover	£167.54 £139.62
82	MO325109745/0 Available to backorder	Grasscatcher Side Cover. Right Grey	£53.50 £44.58
83	MO325109746/0 Available to backorder	Left Cover	£53.50 £44.58
84	MO325394009/0 Available to backorder	Handle Cover	£36.59 £30.49
86	MO382110306/1 Available to backorder	Left Cover	£51.12 £42.60
87	MO112735403/0 In stock	Screw	£1.55 £1.29
88	MO325032006/0 Available to backorder	Right Angular Support	£36.59 £30.49
89	MO325032007/0 Available to backorder	Left Angular Support	£36.59 £30.49
101	MO382869019/0 Available to backorder	Muffler Protection	£76.02 £63.35
102	MO118737857/0 Available to backorder	Cap	£1.55 £1.29
103	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
104	MO325547109/2 Available to backorder	Plate From 01-9-2010	£4.93 £4.11
106	MO112731580/0 Available to backorder	Self-Tap Screw Te 4.8 X 9.5 C15 Bz	£1.63 £1.36
