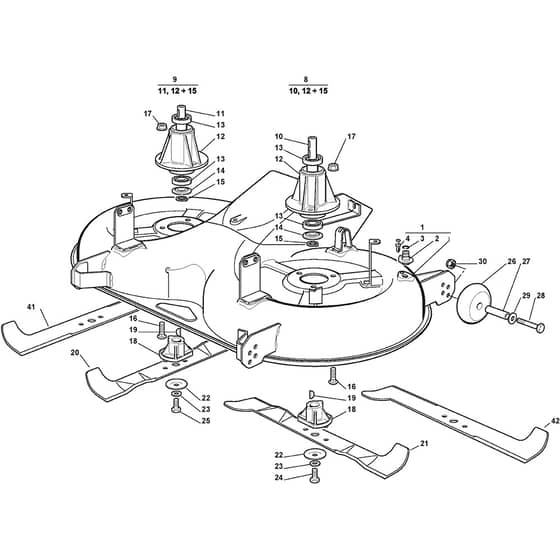

XX 220 HD - 2005 - 299942276/UK - Castel Garden Ride On Mower Cutting Plate Diagram

Description

Castel Garden XX 220 HD Parts Diagram

Product Name - XX 220 HD

Model Year - 2005

Model Type - TCX 122 Hydro

Art.N - 299942276/UK

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382564213/1 Available to backorder	Cutting Plate Assy From 01-9-2004	£985.82 £821.52
2	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.49 £1.24
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO112500030/0 In stock	Rivet	£1.49 £1.24
8	MO382207200/2LC Available to backorder	Main Blade Shaft Ass.Y	£101.35 £84.46
9	MO382207201/3LC Available to backorder	Secondary Blade Shaft Ass.Y	£91.51 £76.26
10	MO125020800/1 Available to backorder	Main Blade Shaft	£46.46 £38.72
11	MO125020801/2 Available to backorder	Secondary Blade Shaft	£42.23 £35.19
12	MO125207200/0 In stock	Blade Shaft Support	£50.68 £42.23
13	MO119216047/0 In stock	Bearing	£15.78 £13.15
14	MO325160501/1 Available to backorder	Dust Cover Disc	£1.49 £1.24
15	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
16	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
17	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
18	MO125463200/0 In stock	Blade Holder	£9.08 £7.57
19	MO112139100/0 In stock	Key	£1.55 £1.29
20	MO182004350/0 Available to backorder	Right Mulching Blade	£44.45 £37.04
21	MO182004349/0 Available to backorder	Left Mulching Blade	£44.45 £37.04
22	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
23	MO112523080/0 In stock	Washer	£1.55 £1.29
24	MO112735694/0 In stock	Screw	£1.97 £1.64
25	MO112735695/1 In stock	Screw	£3.79 £3.16
26	MO182700001/0 In stock	Levelling Small Wheel From 01-9-2006	£5.48 £4.57
27	MO125510072/1 In stock	Spacer	£1.82 £1.52
28	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
29	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
30	MO112293201/0 In stock	Nut	£1.69 £1.41
41	MO182004343/0 In stock	Right Blade. Winged	£45.79 £38.16
42	MO182004342/0 In stock	Left Blade 122cm	£45.79 £38.16
