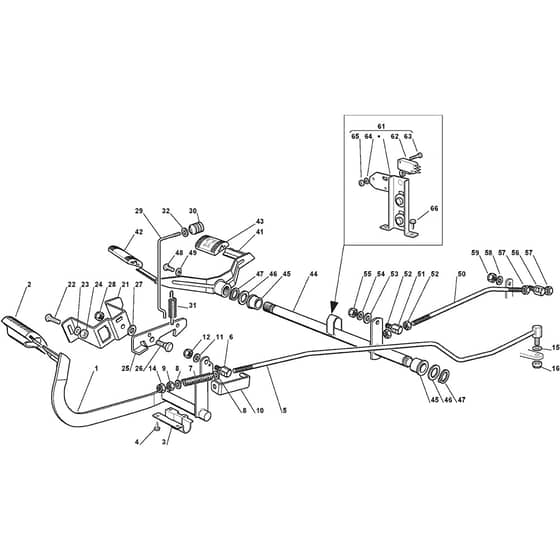

XX 220 HD - 2004-2005 - 299942276/04 - Castel Garden Ride On Mower Gearbox Controls Diagram

Name: XX 220 HD - 2004-2005 - 299942276/04 - Castel Garden Ride On Mower Gearbox Controls Diagram
SKU: xx_220_hd_299942276_04_gearbox_controls-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XX 220 HD - 2004-2005 - 299942276/04 - Castel Garden Ride On Mower Gearbox Controls Diagram

Description

Castel Garden XX 220 HD Parts Diagram

Product Name - XX 220 HD

Model Year - 2004-2005

Model Type - TCX 122 Hydro

Art.N - 299942276/04

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382500011/2 Available to backorder	Pedal From 01-9-2004	£76.02 £63.35
2	MO125110267/0 Available to backorder	Clamp Cover	£3.79 £3.16
3	MO325547081/2 Available to backorder	Plate From 01-9-2003	£5.06 £4.22
4	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
5	MO382000487/1 Available to backorder	Brake Control Rod Assy	£34.85 £29.04
6	MO125510052/1 Available to backorder	Pin	£5.06 £4.22
7	MO125430236/1 Available to backorder	Spring	£1.55 £1.29
8	MO112521360/0 In stock	Washer	£1.55 £1.29
9	MO112295200/0 In stock	Nut	£1.40 £1.17
10	MO325774275/1 Available to backorder	Clamp	£3.52 £2.93
11	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
12	MO112155000/0 In stock	Nut	£1.55 £1.29
14	MO112156602/0 In stock	Nut	£1.40 £1.17
66	MO112735110/0 Available to backorder	Flanged Self-Tap Screw 4.8 X 13	£1.55 £1.29
