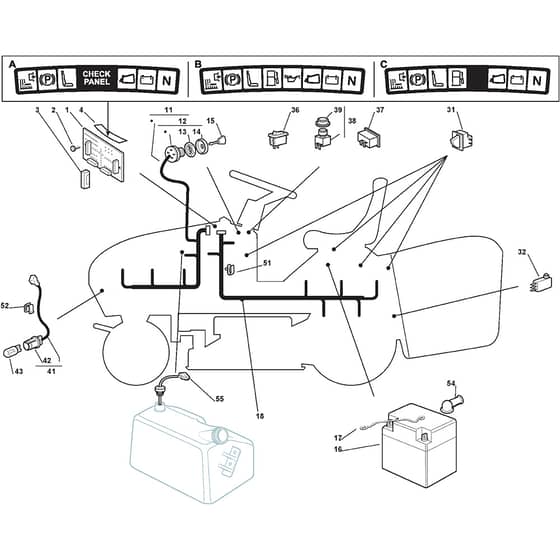

XX 220 HD - 2004-2005 - 299942276/04 - Castel Garden Ride On Mower Electric Parts Diagram

Name: XX 220 HD - 2004-2005 - 299942276/04 - Castel Garden Ride On Mower Electric Parts Diagram
SKU: xx_220_hd_299942276_04_electric_parts-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XX 220 HD - 2004-2005 - 299942276/04 - Castel Garden Ride On Mower Electric Parts Diagram

Description

Castel Garden XX 220 HD Parts Diagram

Product Name - XX 220 HD

Model Year - 2004-2005

Model Type - TCX 122 Hydro

Art.N - 299942276/04

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125722413/1 Available to backorder	Electronic Card From 01-9-2004	£131.56 £109.63
2	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
3	MO133340033/0 Available to backorder	Fuse 6.3 A	£4.66 £3.88
4	MO125420005/0 Available to backorder	Check Control (B)	£11.53 £9.61
12	MO118450065/1 Available to backorder	Starting Switch	£36.56 £30.47
13	MO118400861/0 Available to backorder	Screwed Ring	£6.05 £5.04
14	MO118565351/0 Available to backorder	Screwed Ring Protection	£7.03 £5.86
15	MO118210016/1 Available to backorder	Starting Key	£12.82 £10.68
16	MO118120068/0 In stock	Battery 12V 18Ah	£113.48 £94.57
17	MO125430230/0 Available to backorder	Spring	£3.79 £3.16
31	MO119410622/1 In stock	Microswitch	£6.62 £5.52
32	MO119410605/1 In stock	Microswitch	£39.42 £32.85
36	MO118450084/0 Available to backorder	Headlight Switch	£4.50 £3.75
37	MO118230000/0 Available to backorder	Hour Counter Hobbs Type 82001	£154.86 £129.05
38	MO118450067/0 In stock	Switch	£20.84 £17.37
39	MO118203852/0 Available to backorder	Cap	£2.81 £2.34
41	MO182040070/0 Available to backorder	Lamp Holder Harness	£16.72 £13.93
42	MO133500030/0 Available to backorder	Lamp Holder	£3.79 £3.16
43	MO118459100/0 Available to backorder	Lamp For Lights	£2.12 £1.77
51	MO133320506/0 Available to backorder	Fairlead	£1.40 £1.17
52	MO133320504/0 Available to backorder	Fairlead	£1.97 £1.64
54	MO118564864/1 Available to backorder	Protection	£5.92 £4.93
55	MO125290000/0 Available to backorder	Fuel Level Indicator	£52.55 £43.79
