XTY 220 HD - 2022-2024 - 2T0980453/MTF - Mountfield Ride On Mower Frame Diagram

Name: XTY 220 HD - 2022-2024 - 2T0980453/MTF - Mountfield Ride On Mower Frame Diagram
SKU: xty_220_hd_2t0980453_mtf_frame-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XTY 220 HD - 2022-2024 - 2T0980453/MTF - Mountfield Ride On Mower Frame Diagram

Description

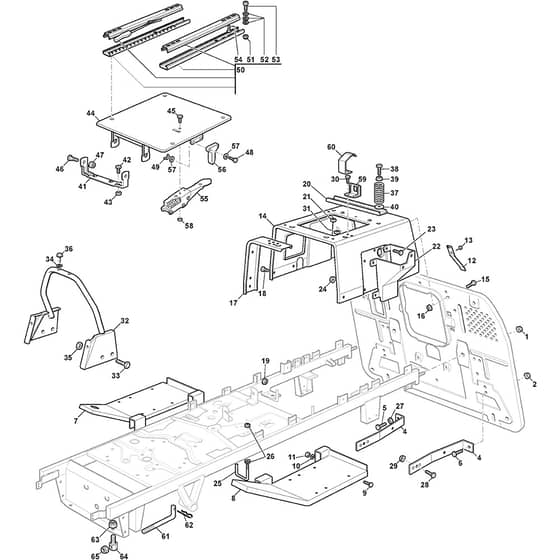

Mountfield XTY 220 HD Parts Diagram

Product Name - TY 102 Hydro

Model Year - 2022-2024

Model Type - TY 102 Hydro

Art.N - 2T0980453/MTF

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO9739-1031-22 In stock	Nut	£1.97 £1.64
4	MO325774273/2 Available to backorder	Stiffening	£8.87 £7.39
5	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
6	MO112793102/0 In stock	Screw	£1.55 £1.29
7	MO382510041/2 Available to backorder	Right Footboard Support	£80.84 £67.37
8	MO382510043/2 Available to backorder	Left Footboard Support	£80.84 £67.37
9	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
10	MO112523040/0 In stock	Washer	£1.49 £1.24
11	MO112154510/0 In stock	Nut	£1.55 £1.29
12	MO125430238/1 Available to backorder	Spring	£4.08 £3.40
13	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
14	MO325785133/5 Available to backorder	Seat Support	£68.99 £57.49
17	MO325650065/1 Available to backorder	Pulley Stiffening	£9.28 £7.73
20	MO325650067/1 Available to backorder	Pulley Stiffening	£5.92 £4.93
21	MO112360420/0 Available to backorder	Nut	£1.55 £1.29
22	MO325785137/1 Available to backorder	Support	£35.20 £29.33
23	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
25	MO125580019/1 Available to backorder	Belt Guide (Hydro)	£3.94 £3.28
28	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
30	MO112727796/0 Available to backorder	Screw	£1.55 £1.29
31	MO9739-0531-22 Available to backorder	Nut	£2.12 £1.77
32	MO382650045/0 Available to backorder	Central Stiffening Support Frame	£40.82 £34.02
33	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
34	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
35	MO112292102/0 In stock	Nut	£1.69 £1.41
36	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
37	MO125430205/1 Available to backorder	Spring	£5.92 £4.93
38	MO125943001/1 Available to backorder	Screw	£1.97 £1.64
39	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
40	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
41	MO382774305/0 Available to backorder	Seat Clamp Support	£11.24 £9.37
42	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
43	MO112293201/0 In stock	Nut	£1.69 £1.41
44	MO382735809/1 Available to backorder	Fixed Seat Support	£140.06 £116.72
45	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
46	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
47	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
48	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
49	MO112372550/0 Available to backorder	Wing Nut	£1.55 £1.29
50	MO382180115/0 Available to backorder	Guide Assy	£76.02 £63.35
52	MO112540060/0 Available to backorder	Washer	£1.55 £1.29
53	MO112760515/0 Available to backorder	Screw	£1.55 £1.29
54	MO112760605/0 In stock	Screw	£3.38 £2.82
55	MO382318316/1 Available to backorder	Opc Spring And Lever Assy	£40.82 £34.02
56	MO325060049/0 Available to backorder	Seat Switch Cam	£2.26 £1.88
57	MO112523020/0 In stock	Washer	£1.55 £1.29
58	MO112154330/0 In stock	Nut	£1.55 £1.29
59	MO325755025/3 Available to backorder	Bracket	£5.76 £4.80
60	MO325430255/0 Available to backorder	Spring	£3.94 £3.28
61	MO125510119/0 Available to backorder	Tie Rod	£13.31 £11.09
62	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
64	MO125510168/0 Available to backorder	Pin	£4.50 £3.75
65	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
