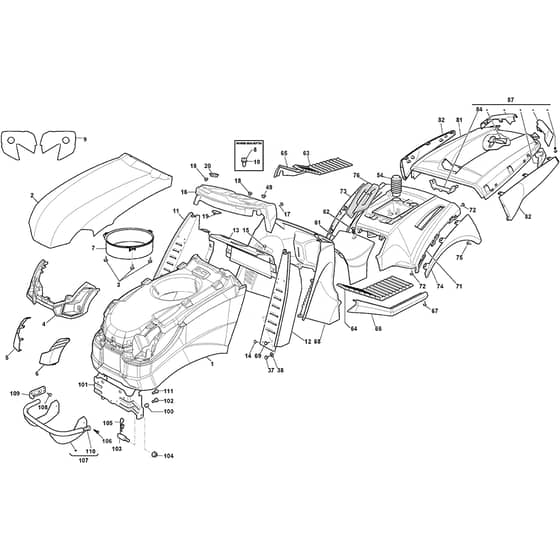

XTY 220 HD - 2018-2022 - 2T0980253/C18 - Castel Garden Ride On Mower Body Diagram

Description

Castel Garden XTY 220 HD Parts Diagram

Product Name - XTY 220 HD

Model Year - 2018-2022

Model Type - TY 102 Hydro

Art.N - 2T0980253/C18

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325076988/0 Available to backorder	Lower Engine Hood. Grey	£183.01 £152.51
2	MO325076987/0 Available to backorder	Upper Engine Hood Red Dark Red	£116.15 £96.79
4	MO325076920/0 Available to backorder	Front Cover	£11.82 £9.85
5	MO325410905/0 Available to backorder	Headlight Grill. Right	£9.08 £7.57
6	MO325410906/0 Available to backorder	Headlight Grill. Left	£10.56 £8.80
8	MO325605003/0 In stock	Push Button Reverse Gear	£30.77 £25.64
9	MO114366315/0 Available to backorder	Light Reflector Label	£43.64 £36.37
10	MO325256250/0 Available to backorder	Screwed Ring	£2.53 £2.11
11	MO382785022/10 Available to backorder	Right Dashboard Support	£40.63 £33.86
12	MO382785021/9 Available to backorder	Left Dashboard Support	£38.20 £31.83
13	MO382785137/1 Available to backorder	Central Dashboard Support	£13.43 £11.19
14	MO112735403/0 Available to backorder	Screw	£1.55 £1.29
16	MO325120266/0 Available to backorder	Dashboard. Grey (Cruise Control)	£43.21 £36.01
17	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
18	MO125120200/0 Available to backorder	Cap	£1.40 £1.17
19	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
37	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
38	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
49	MO325120233/0 Available to backorder	Cap Starter Control Hole Closing Cap	£3.24 £2.70
54	MO325737002/0 Available to backorder	Hood To S.N 21GA1RON001872	£17.08 £14.23
54	MO325122000/2 Available to backorder	Cap From S.N 21GA1RON001873	£1.55 £1.29
61	MO325110483/0 Available to backorder	Red Central Cover Dark Red	£31.60 £26.33
61	MO325110507/0 Available to backorder	Grey Central Cover Grey	£35.20 £29.33
62	MO125580020/2 In stock	Stake	£8.29 £6.91
63	MO325110278/1 Available to backorder	Right Footboard Cover	£30.97 £25.81
64	MO325110279/0 Available to backorder	Left Footboard Cover	£30.97 £25.81
65	MO325599000/0 Available to backorder	Right Profile Grey Grey	£15.48 £12.90
66	MO325599001/0 Available to backorder	Left Profil Grey	£15.70 £13.08
68	MO325785228/1 Available to backorder	Dashboard Support	£71.80 £59.83
69	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
71	MO325109798/0 Available to backorder	Red Wheels Cover Dark Red	£113.32 £94.43
72	MO112735420/0 Available to backorder	Screw	£4.66 £3.88
73	MO325109747/0 Available to backorder	Wheels Cover	£19.30 £16.08
74	MO325109748/0 Available to backorder	Left Wheel Cover	£19.99 £16.66
75	MO112728686/0 In stock	Screw	£1.55 £1.29
76	MO325207129/1 Available to backorder	Cover. Can Holder	£25.06 £20.88
81	MO325110482/0 Available to backorder	Red Grass-Catcher Cover Dark Red	£139.37 £116.14
82	MO325109745/0 Available to backorder	Grasscatcher Side Cover. Right Grey	£24.77 £20.64
83	MO325109746/0 Available to backorder	Left Cover	£24.49 £20.41
84	MO325394009/0 Available to backorder	Handle Cover	£33.54 £27.95
87	MO382110306/1 Available to backorder	Angles Assy	£51.12 £42.60
100	MO122170600/0 Available to backorder	Spacer	£1.82 £1.52
101	MO325774301/2 Available to backorder	Engine Hood Support	£17.74 £14.78
102	MO112735406/0 Available to backorder	Screw	£1.55 £1.29
103	MO125510169/1 Available to backorder	Pin From S.N 21DA1RON001209	£2.40 £2.00
104	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
105	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
106	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
107	MO382869025/0 Available to backorder	Muffler Protection	£125.29 £104.41
108	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
109	MO325547159/1 Available to backorder	Plate	£4.66 £3.88
110	MO118737860/0 Available to backorder	Cap	£1.55 £1.29
111	MO112735404/0 Available to backorder	Flanged Hex-Head Screw D5 X 16 Wz	£1.55 £1.29
