XTY 190 HD - 2022-2024 - 2T0971453/MTF - Mountfield Ride On Mower Piston Diagram

Name: XTY 190 HD - 2022-2024 - 2T0971453/MTF - Mountfield Ride On Mower Piston Diagram
SKU: xty_190_hd_2t0971453_mtf_piston-group
Price: 1.42 GBP
Availability: InStock

Part No. xty_190_hd_2t0971453_mtf_piston-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XTY 190 HD - 2022-2024 - 2T0971453/MTF - Mountfield Ride On Mower Piston Diagram

Description

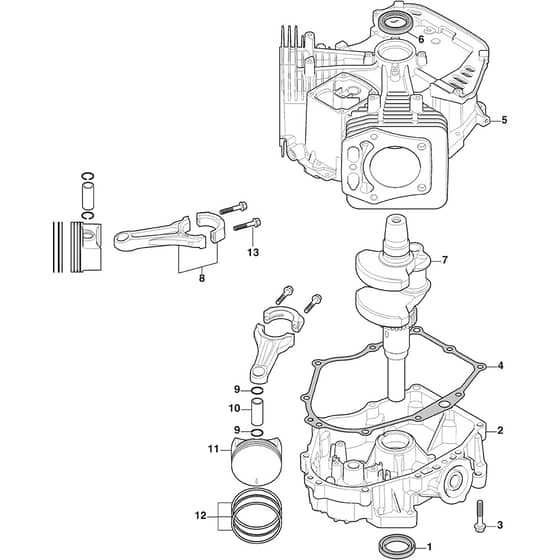

Mountfield XTY 190 HD Parts Diagram

Product Name - TY 102 Hydro

Model Year - 2022-2024

Model Type - TY 102 Hydro

Art.N - 2T0971453/MTF

Engine Model -

	Part No.	Details
1	MO118551602/0 Available to backorder	Oil Seal	£14.08 £11.73
2	MO118551541/0 Available to backorder	Crankcase Cover	£175.97 £146.64
4	MO118551542/0 Available to backorder	Gasket	£20.69 £17.24
5	MO118551628/0 Available to backorder	Cilynder	£373.04 £310.87
6	MO118551418/0 Available to backorder	Oil Seal d.35_D.52_b.7	£11.95 £9.96
7	MO118551555/0 Available to backorder	Crankshaft	£260.45 £217.04
8	MO118551554/1 Available to backorder	Connecting Rod Assy	£45.04 £37.53
9	MO118551600/0 Available to backorder	Oil Seal	£1.70 £1.42
10	MO118551552/0 Available to backorder	Piston Pin	£7.25 £6.04
11	MO118551629/0 Available to backorder	Piston	£38.00 £31.67
12	MO118551630/0 Available to backorder	Piston. Ring Set	£29.57 £24.64
13	MO118552498/0 Available to backorder	Bolt	£2.11 £1.76
